DHP Furniture 4540039QE (Black) Metal Bed (Queen) User Manual
Weight Limit:500 Lb / 227 Kg
Thank you for purchasing from DHP!
DO NOT RETURN TO THE STORE !
If parts are missing or damaged, we will gladly ship your replacement parts free of charge.
Visit www.dhpfurniture.com/eng/replacement-parts or call Toll-Free 1-800-267-1739
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Limited 1 year Warranty
DHP warrants this product to be free from defects in material and workmanship and agrees to remedy any such defect. This warranty covers one year from the date of original purchase from authorized retailers. This is solely limited to the repair or replacement of defective parts and assembly labor is not included.
This warranty does not apply to any product which has been improperly assembled, subjected to misuse or abuse or which has been altered or repaired in any way.The warranty does not cover wearing, tearing, fading or splitting of the fabric (where applicable). Liability for consequential damages is excluded to the extent exclusion is permitted by law. This warranty gives you specific legal rights and you may also have other rights which vary from state to state or province to province.
To obtain warranty service, purchaser must present original bill of sale. Components repaired or replaced are warranted through the remainder of the original warranty period only. The defective components will be repaired or replaced without charge, subject to the terms and conditions described above.
Visit www.dhpfurniture.com to view the limited warranty valid in the U.S. and Canada.
Contact Us!
For help with assembly, identifying parts, product information or to order parts, please contact us:
1-800-267-1739
Monday to Friday 9 am to 9 pm (Eastern Time)Saturday 10 am to 6:30 pm (Eastern Time)Sunday 11 am to 7 pm (Eastern Time)
DHP Consumer Services
12345 Albert Hudon, Suite 100,Montreal, Quebec H1G 3L1
Read Before Beginning Assembly
- Work in a spacious area and near where the unit will be used, preferably on a carpet, or use a piece of the cardboard packaging to protect your floor and product.
- Make sure all parts are included. Most parts are labeled or stamped on the raw edge.
- Read each step carefully. It is very important that each step of the instructions is performed in the correct order. If these steps are not followed in sequence, assembly difficulties will occur.
- This product may contain small components. Please ensure that they are kept away from small children.
- This product is designed for home use and is not intended for commercial use.

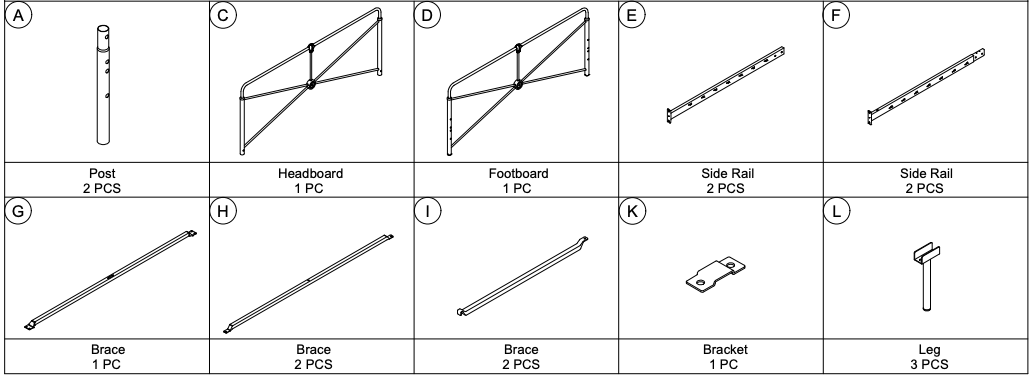

Parts List
IMPORTANT:
- Each part has unique part number. Please reference the appropriate part number when contacting customer service for replacement parts.
- Before throwing any packaging, please verify all contents and make sure you have received all the parts listed above!
Hardware List
Hardware Pack
Please do not completely tighten all the hardware, until the entire assembly is complete, unless otherwise indicated in the step-by-step instructions.
The screw(s), bolt(s) to be used at each step are shown in actual size in the lower right corner of the page.
Assembly

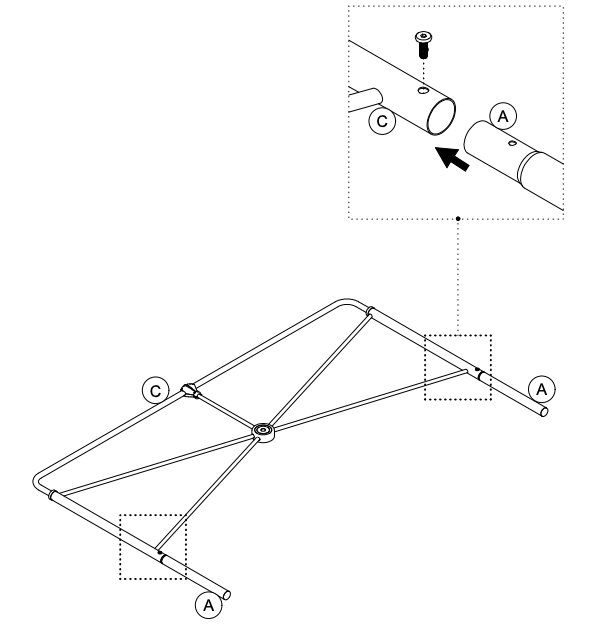

Step 1
Insert A X 2 into C with 4.

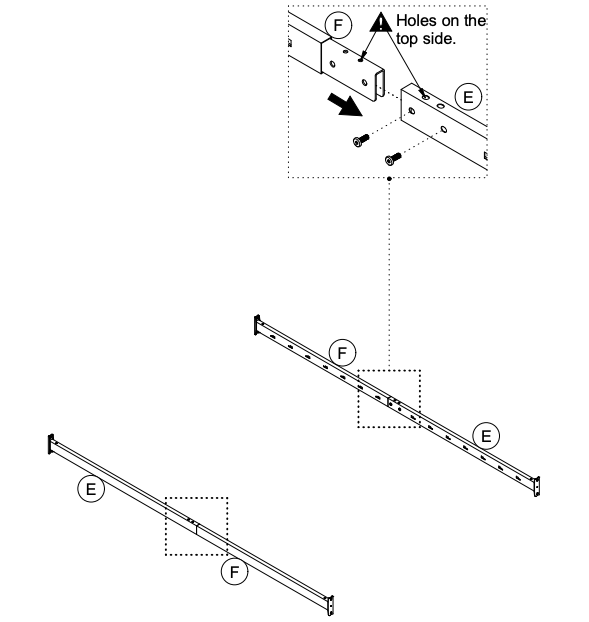

Step 2
Insert F X 2 into E X 2 with 4.
Step 3
3.1 Attach H X 2 to sub-assembly E/F X 2 from previous step with 2.
3.2 Attach G to E X 2 with 2.
Step 4
This bed offers you 2 options for the height of the bed foundation.
- To assembly in Higher Position: From STEP 4 to STEP 8.
- To assembly in Lower Position: From STEP 9 to STEP 13.
Attach M X 2 to G with 2.Then turn over the subassembly.
Step 5
Attach sub-assembly E/F from previous step to A X 2, C and D with 3.
Screw 3 into A X 2 and D.
Step 6
6.1 Insert one end of both I into the slot on G as illustrated.
6.2 Attach the other end of both I to H X 2with 1 and 5.
Step 7
Attach M and K to G with 1 and 5.
Step 8
Insert O1 into E & F as illustrated, then lock O1 into place with Y.
Step 9
- To assembly in Lower Position: From STEP 9 to STEP 13.
Attach L X 2 to G with 2.
Then turn over the subassembly.
Step 10
Attach sub-assembly E/F from previous step to A X 2 and D with 3.
Screw 3 into A X 2, C and D.

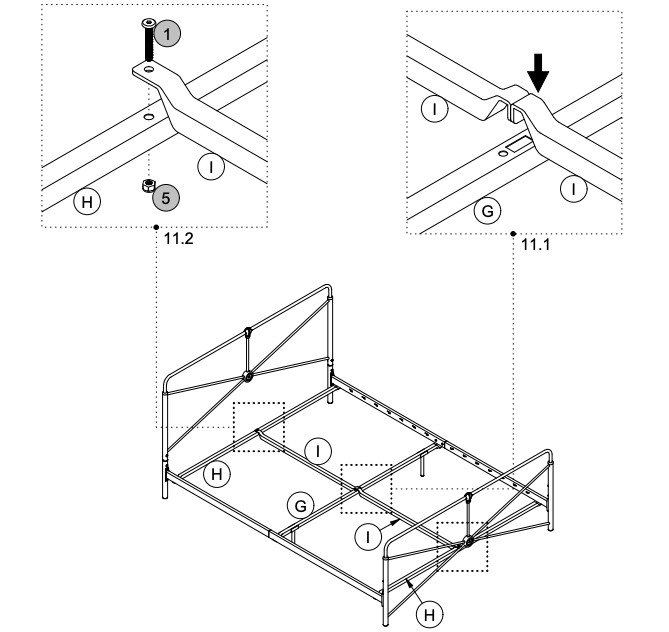

Step 11
11.1 Insert one end of both I into the slot on G as illustrated.
11.2 Attach the other end of both I to H X 2 with 1 and 5.
Step 12
Attach L and K to G with 1 and 5.
Step 13
Insert O1 into E & F as illustrated, then lock O1 into place with Y.
CAUTION: This unit is intended for use only with the products and/or maximum weights indicated. Use with other products and/or products heavier than the maximum weights indicated may result in instability or cause possible injury.
Weight Limit: 500 Lb / 227 Kg
That’s it ! You’ve finished assembling your Metal Bed !
Helpful Hints
- Move your new furniture carefully, with two people lifting and carrying the unit to its new location.
- Your DHP furniture can be disassembled and reassembled to move.

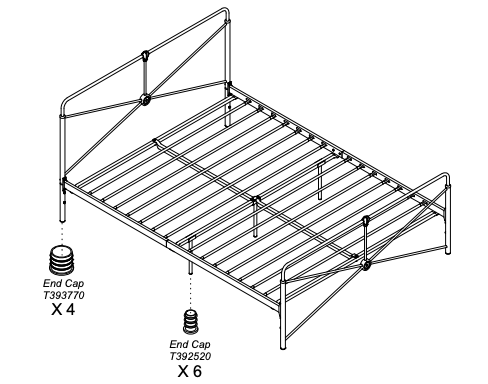

- Some parts have been pre-assembled for this item. They are illustrated on this page and available for replacement.
- Check bolts and nuts periodically and tighten if necessary.
- Clean the product with a soft damp cloth. DO NOT use harsh chemicals or abrasive cleaners.
WARNINGS:
For safety reasons and to prevent injuries:
- This bed is not intended for use by children under 4 years old.
- Prohibit jumping and horseplay on this bed.
- Only use a mattress which is 79″-80″ long and 59″ -60″ wide
- Do not use risers under this bed.
