DigiTek Big Bang Trolley Bluetooth Speaker DBS-300 User Manual

DigiTek Big Bang Trolley Bluetooth Speaker DBS-300

Features:

• True wireless stereo function
• Bluetooth wireless connectivity
• Support USB/TF card
• FM Radio
• AUX-in function
• Karaoke Function
• Rechargeable Lithium battery

Specification:

Accessory：

• Charging cable: 1 piece;
• Audio cable: 1 piece;
• User manual: 1 piece;
• Remote: 1 piece
• Wireless Microphone: 1 piece

Connect to Bluetooth device

Turn on the speaker unit and the Bluetooth switch on your mobile or other device and search for the speaker model name ” DBS-300″.Pair the device.Once device is paired Bluetooth will automatically connect when unit is turned on subsequently.

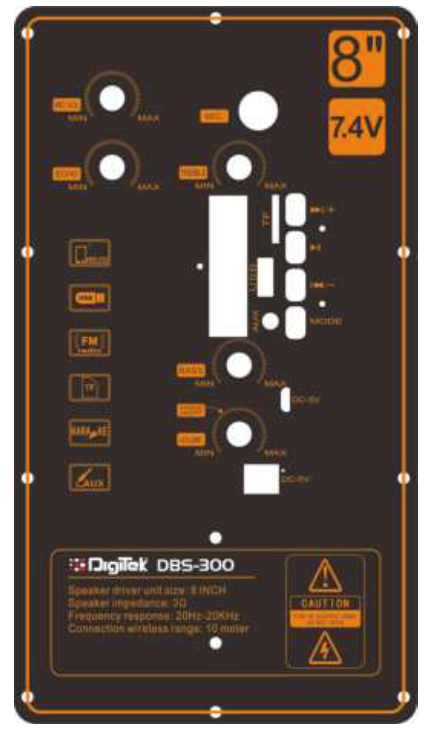

1. Display LED shows information on the current mode being playback.
2. POWER ON/OFF/VOLUME KNOB: Power KNOB, whirligig to turn on, and more to turn up the volume.
3. DC-5V: One end of the cable should be inserted in DC 5V, another end with USB jack be inserted in USB port of the PC or other charging device with standard DC5V jack. The red LED is on when charging.
4. Under FM/USB/TF/Bluetooth mode, short press to move to next channel/track.
5. Under USB/TF/Bluetooth mode, short press for play and pause
6. Under FM/USB/TF/Bluetooth mode, short press to move to previous channel/track.
7. MODE: Mode shift button. Short press and shift to USB/TF mode once, more to AUX/FM mode & default mode will be Bluetooth mode. Press and hold the Mode button on the host speaker to reactivate the paring process between speakers.
8. Aux: Audio input jack when connect. Enable the sound source connection active devices(PC, digital media player, mobile phones and other audio-visual products).
9. TF slot: Used to read the Mp3 files in FAT32 format with maximum size of 32GB
10. USB slot: Used to read the Mp3 files in FAT32 format with maximum size of 32GB
11. MIC: Microphone-in
12. MIC-VOL KNOB: Adjust the Microphone volume.
13. ECHO KNOB: Adjust ECHO effect.
14. TREBLE KNOB: Adjust the music treble.
15. BASS KNOB: Adjust the music bass.

Bluetooth

Turn on the speaker, It comes into the Bluetooth mode directly. After pair the device, it can play the music, Short time Press ll to Play/Pause, press and to Prev and Next. Long time press and to turn down and turn up the Volume.

AUX-IN

AUX-IN, Using the audio cable into AUX solt, and then press MODE to switch to Aux-in mode. Long time press and button to turn down and turn up the Volume.Under AUX IN , it couldn’t shift Prev and Next by Bluetooth speaker, but can control by connection device.

USB/TF Card

Insert the U flash memory or TF card into the USB/TF slot, KPB-231 will read the MP3 format music automatically. Pressll to Play/Pause, short time press and to Prev. and Next, Long time press and button to turn down and turn up the Volume.

FM RADIO

Press to search FM channel automatically. This operation will scan all FM stations and Pre-record them to memory. The scan procedure will take several minutes to complete and should not be interrupted. Once complete, you can short press or to move forward or backward. Long press or to turn down or turn up Volume.NOTE: connected the cable into AUX Port can received the FM radio clearly. Because it is the same function as antenna

Charging

Plug the USB cable into speaker MICRO USB port and connect to power source.Red LED on panel when charging.

Remoter

1. Unit on/off
2. MODE :Mode shift button. Short press and shift to USB/TF mode once, more to AUX/FM mode & default mode will be Bluetooth mode. Press and hold the Mode button on the host speaker to reactivate the paring process between speakers.
3. Mute
4. Play/Pause
5. EQ: Press to exchange the EQ mode.
6. Under FM/USB/TF/Bluetooth mode, short press to move to previous channel/track.
7. Under FM/USB/TF/Bluetooth mode, short press to move to next channel/track.
8. Decrease the volume
9. Increase the volume
