DOMUS SDF100/150 Axial Wall Fans Instructions

DOMUS SDF100/150 Axial Wall Fans Instructions

OPERATIONS

Timer Adjustment – Timer Models only

Isolate the power supply. The timer is factory set at midpoint. Time is set by placing the black bridge over 2 of the pins on the right hand side of the timer board. If bridge is not fitted, timer will default to 20 minute setting. Replace front cover BEFORE switching on the power supply.

HUMIDITY ADJUSTMENT – HUMIDITY MODELS ONLY

Isolate the power supply. Remove the front cover. The humidity control adjustment position is clearly marked. Turn clockwise for less sensitivity and anti-clockwise for greater sensitivity. Turn fully clockwise to turn the humidity sensor off. Replace front cover BEFORE switching on the fan.

SDF 100 RANGE
  SDF100B   Standard   SDF100PB   With Pull Cord   SDF100HTBPC

 With Humidistat,   Timerand Pull Cord
  SDF100TB  With Timer   SDF100HTB

  With Humidistatand Timer

   SDF100PIR   With MovementDetector and Timer
SDF 150 RANGE
  SDF150B   Standard   SDF150PB   With Pull Cord   SDF150HTBPC   With Humidistat,and Pull Cord
  SDF150TB     WithTimer   SDF150HTB   With Humidistatand Timer   SDF150PBTW      Twin Speedand Pull Cord
  SDF150 HTBTW              Twin Speed withHumidistat and Pull Cord
CLEANING

Disconnect power supply before cleaning. It is important to clean fans regularly as cleaning helps maintain performance and ensure safe, reliable operation.The front cover can be removed from the fan and gently washed in warm water, dry throughly. The interior of the fan can be dusted with a soft brush. Do not use water.On humidity control models, please ensure that no water enters the sensor grille.

230V ac – 50Hz 12W (SDF100) 35W (SDF150)IPX4 Rating – This product is double insulated.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Domus Ventilation

Cambria House, Caerphilly Business Park, Van Road, CaerphillyCF83 3EDTel: +44 (0)3443 715523 Fax: +44 (0)3443 715524Email: www.domusventilation.co.uk

SDF 100/150 Window / Wall Fan

These high quality extractor fans are designed to provide effective ventilation and in order to achieve this, please read these instructions carefully BEFORE installing the fan unit. Failure to comply with these instructions could reduce the life of the product and may invalidate the warranty. This product is suitable for use with up to 1.5 metres of ducting.

WARNING: ISOLATE ELECTRICITY SUPPLY BEFORE STARTING WORK

FITTING WALL FAN

  1. Select a suitable position for the fan keeping the ducting as short and straight as possible.
  2. Cut a hole in the wall or ceiling to suit the outside diameter of the ducting.
  3. Remove the front cover from the fan by undoing the retaining screw at the bottom edge of front cover. Position the fan backplate and mark the retaining screw positions.
  4. Remove the appropriate cable entry knock out position from the fan backplate and thread power cable through before fixing the fan to the wall or ceiling.

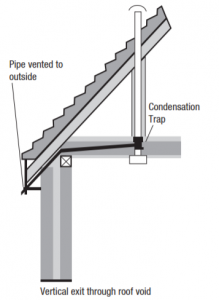

  5. Ceiling mounted fans must be installed with a condensation trap.

Note: Fans fitted with pull cord switches are not suitable for ceiling mounting.

Note: All the ancillary items can be obtained through Domus stockists.call +44 (0) 3443 715 523 to find your nearest stockist

WIRING INSTRUCTIONS

It is recommended that the fans be connected into the lighting circuit, with double pole (3mm) isolation provided before the room light switch and suitably fused, in accordance with current IEE Regulations.Window mounted fans should be connected to power supply using a flexible cord with conductors of between 0.75mm2 and 1.5mm2 only. Wall and ceiling mounted fans for fixed wiring should be connected to the power supply via a cable with solid conductors of 1mm2 to 1.5mm2 only.

IF IN DOUBT CONSULT A QUALIFIED ELECTRICIAN

     MODELS                                  MODELS                                  MODELS   SDF100TB                                  SDF100B                                   SDF100PB   SDF100HTB                               SDF150Bv                                 SDF150PB  SDF100HTBPC                                                                          SDF150HBPC  SDF150TB                                                                                   SDF150PBTW  SDF150HTB                                                                              SDF150HTBTW

WARNING: ISOLATE ELECTRICITY SUPPLY BEFORE STARTING WORK DO NOT INSTALL IN SHOWER CUBICLES (ZONES 0 or 1)MAXIMUM ROOM TEMPERATURE 40ºC
