Nxl-X8tpneo Wakeboard Pod Tower Speakers

Specifications

General Specifications

Nominal Diameter…………..8”Nominal Impedance……….4ohmRMS Power Handling………180WMAX Power Handling………550WSensitivity (1w/1m)………….95dBFrequency Response………60Hz-21Khz

Body / Features

Enclosure Material………….Injection PC+ABSMarine Grade Type………….IP65 + UV StableRGB LED…………………………Integrated LED-RGB Speaker Lighting,Integrated LED-RGB Acrylic Ring Lighting, 6 Core Wires for Lighting and SpeakerGrill Type………………………… ABS+316 Stainless Metal MeshPair………………………………… YesClamps…………………………… Die-Cast adjustable (1″ ~ 2″)360 Degree Rotation MountingBuried Wire or Open Wire Mounting Optional,Included NBR Pad And Stainless Hardware(Screws,Stop Washers,Hexagon wrench,Safety Rope, Screw fastening Glue)Front Logo……………………… Yes, Can be Rotated For Correct Angle DisplayFinish…………………………….. Yes, Can be Rotated For Correct Angle Display

Packaging Includes

1 Pair 8” Wakeboard Pod Tower Speaker
1 Piece 6 mm Hex wrench Chromed
1 Piece 4 mm Hex wrench Chromed
1 Pair NBR Pad For 1” to 3” tube adjust
1 Pair Stainless Safety Rope
1 Pcs Screw Fastening Glue

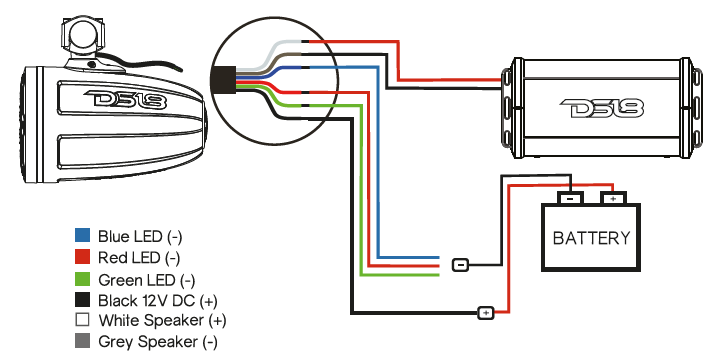

If you have an LED Control Module (LED-BTC), Connect as Shown in the Following Diagram:

To connect without LED Control Module (LED-BTC), Connect as Shown in the Following Diagram:

Black wire “BK” Connected to Battery Positive(+) 12V
White Color Light “R”; “B” and “G” Connected to Battery Negative (-)
Green Color Light “G” Connected to Battery Negative(-)
Red Color Light “R” Connected to Battery Negative(-)
Blue Color Light “B” Connected to Battery Negative(-)
Purple Color Light “R” and “B” Connected to Battery Negative(-)
Yellow Color Light “R” and “G” Connected to Battery Negative(-)
Cyan Color Light “B” and “G” Connected to Battery Negative (-)

Beginning Mounted

Cut the length of rubber pad and wires outlet according to the diameter of installation pipe.

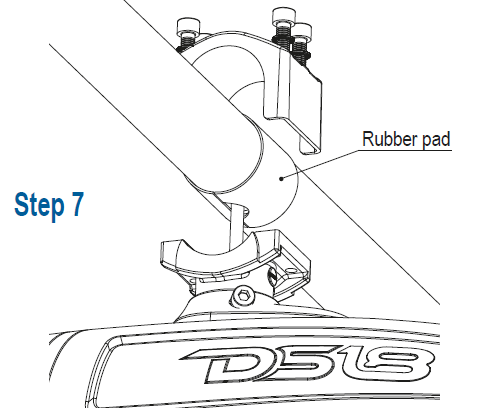

Wrap the rubber pad around the pipe and align wire out hole According to the diagram.

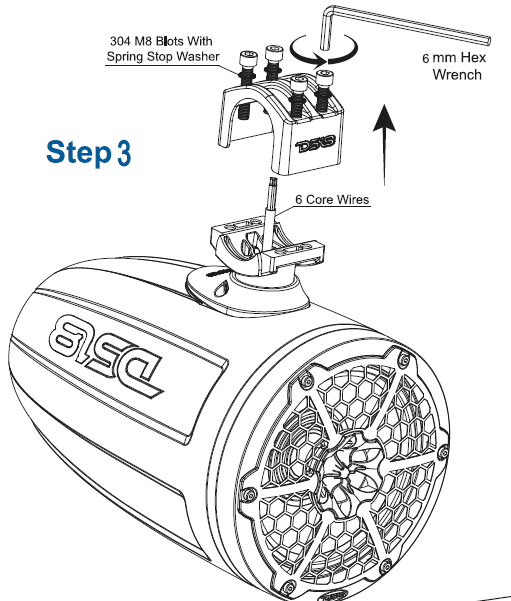

Push the wire into the tube, press on the rubber pad,and lock the the top clamp .

Take down the safety rope and hang it on the pipe, lock the screw gasket safety rope lifting ring on the clamp base, and apply screw fastening glue on the screw before locking.

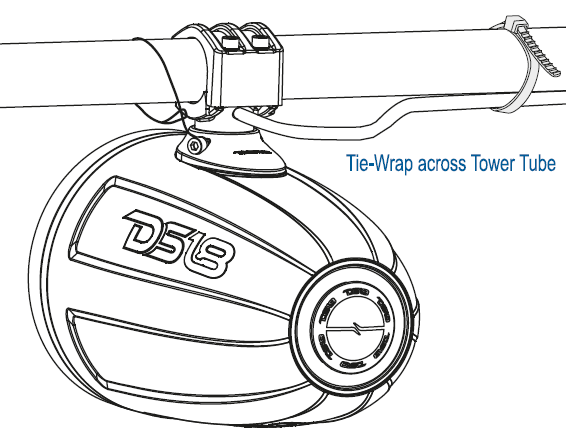

During the mounting process you should have located the spot to drill your tower bar for the 6 conductor wire (Speaker and RGB lightning wiring) insertion. Or NOT (see Tie-wrap solution below)

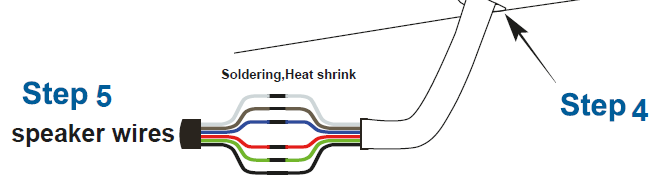

Remove Wire NBR Plug and Slide the wire threw the hole Snake the wire down to the bottom of the tower tube in a location that the wires can be attached to the audio (And lighting) system. Solder or butt connect the speaker wire coming from the tower to the speaker wire to the system. Then heat-shrink it for added protection from water / moisture.
