USB Camera DVDO-C1-1
Package Contents

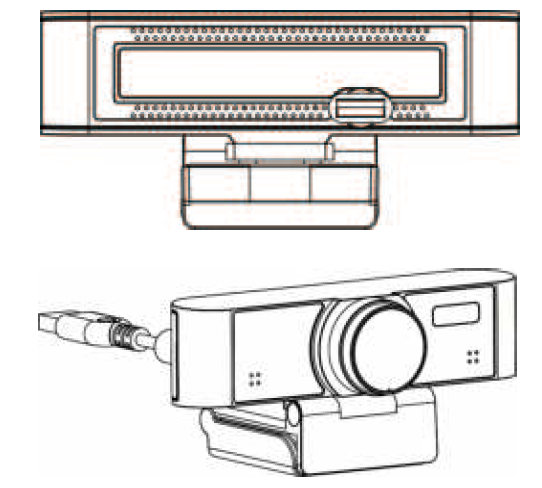

Product Features
Full HD 1080p with Wide Viewing AngleProvides Full HD 1080p images and 1080p video @ 30fps / 25fps, with full downward compatibility to 720p resolution and wide viewing angle of 120⁰ field of view (FOV).
USB 2.0Full-featured USB 2.0 interface carries power, video, and audio over one cable, supporting high-quality audio and video calls.
Built-in MicrophoneIntegrated microphone array picks up sound from up to six meters / 19.5 feet away, with crystal-clear audio via proprietary noise suppression.
Low-Light Sensitivity2D / 3D noise reduction algorithms greatly reduce image noise to keep images clean and clear with signal-to-noise ratio up to 55dB, even under ultra-low lighting.
Easy InstallationStandard clamping rotary shaft support provides easy, stable, and reliable installations, suitable for mounting onto monitors.
Safety Precautions
Careful TransportationAvoid heavy pressure, strong vibrations, and liquid damage to camera during transportation, installation, and operation.
Careful InstallationPlace this product on a smooth surface. Please carefully avoid contact with any liquid, gas or solid material that may cause corrosion to the camera’s shell, made from an organic material.
Do Not DisassembleThis product contains no user-repairable parts. Any damage caused by the user disassembling the product is not covered by warranty. Electromagnetic fields at specific frequencies may affect image performance.
Product Specifications
| Camera | |
| Sensor | 1/2.7”, CMOS, Effective Pixel: 2.07M |
| Scanning Mode | Progressive |
| Lens Mount | M12 |
| Lens | Focus: f=3.1mm, FOV: 120° |
| Minimal Illumination | 0.5 Lux @ (F1.8, AGC ON) |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| Camera bracket | Bracket with Damper |
| Digital Noise Reduction | 2D, 3D Digital Noise Reduction |
| Backlight Compensation | Support |
| USB Features | |
| Operating System | Windows XP/7/8/10
Android 4.4.2 |
| Color / Compression | MJPEG/YUY2/H.264 |
| Resolution | l MJPEG: 1920×1080 (default), 1600×896, 160×120, 176×144, 320×240, 352×288,
640×480, 720×576, 1280×720, 1024×768, 1024×576, 960×540, 848×480, 800×600, 800×448, 640×360, 480×272, 424×240, 320×180 l YUY2: 1920×1080 (default), 160×120, 176×144, 320×240, 352×288, 640×480, 1280×720, 960×540, 640×360, 480×272, 424×240, 320×180 l H.264: 1920×1080 (default), 1600×896, 160×120, 176×144, 320×240, 352×288, 640×480, 720×576, 1280×720, 1024×768, 1024×576, 960×540, 848×480, 800×600, 800×448, 640×360, 480×270, 424×240, 320×180 |
| USB Communication Protocol | UVC 1.0 |
| Input/Output Interface | |
| USB Interface | 1 x USB 2.0: Type A |
| Physical Specifications | |
| Input Voltage | 5V (USB power supply) |
| Current Consumption | 0.27A |
| Operating Temperature | -10°C ~ 40°C / 14°F ~ 104°F |
| Storage Temperature | -40°C ~ 60°C / -40°F ~ 140°F |
| Power Consumption | 1.4W |
| Size | 118mm x 37.2mm x 30.8mm (without bracket) |
| Net Weight | 0.093 Kg (without bracket) |
| MTBF | ＞30000h |
Camera Installation

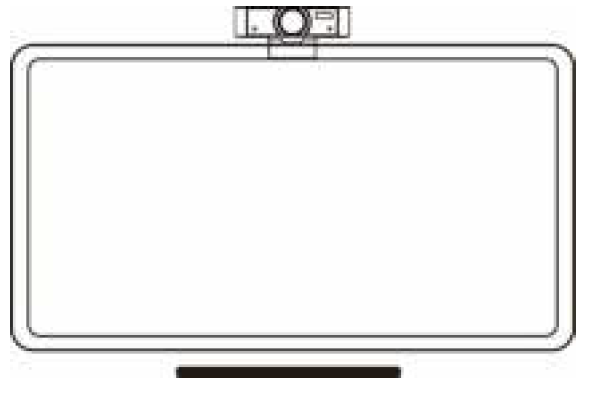

The camera can be mounted to monitors with thickness less than 170mm / 6.7” as shown below.
Maintenance and Troubleshooting
Camera Maintenance
- Please disconnect power when camera is not in use for long periods of time. Use a soft cloth or paper to remove dust from camera housing.
- Please wipe with a dry soft cloth to clean camera lens. Use a gentle neutral cleaner if dirt has accumulated. Do not use strong or corrosive detergents which can scratch the lens and affect image quality.
Operating Tips
- Avoid pointing camera at direct sunlight, bright lights or bright objects.
- Avoid unstable lighting conditions, which can cause the image to flash.
- Do not use around devices that can transmit high-power radio waves, such as radio-transmitting or television stations.
Troubleshooting
If the image jitters after the camera is properly connected,
- Check whether the camera is installed on a stable surface.
- Check for vibrating surfaces or machinery near the camera.
Toxic and Harmful Substances
|
Part Name |
Toxic or harmful substances or elements | |||||
| (Pb) | (Hg) | (Cd) | (CrVI) | (PBB) | (PBDE) | |
| Metal | X | Ο | Ο | Ο | Ο | Ο |
| Plastic | Ο | Ο | Ο | Ο | Ο | Ο |
| Glass | X | Ο | Ο | Ο | Ο | Ο |
| Circuit board | X | Ο | Ο | Ο | Ο | Ο |
| Power | X | Ο | Ο | Ο | Ο | Ο |
| Attached | X | Ο | Ο | Ο | Ο | Ο |
This form is compiled in accordance with SJ/T 11364.Ο: Indicates that the content of the hazardous substance in all homogenized materials of the component is subject to the limit specified in GB/T 26572.X: The hazardous substance in at least one of the components’ homogenized material content is in excess of the GB/T 26572 limit requirements, and there are no mature alternatives.
Warranty
If failure is due to non-human causes within one year from date of purchase of camera, please email [email protected] with proof of purchase / receipt and serial number.Any of the following circumstances is not covered by warranty:
- Product has been modified or tampered with.
- Use of camera in an environment that does not conform to requirements of the product.
- Uncontrollable factors such as fire, earthquake, lightning strike, etc.
- Warranty card does not match product number.
