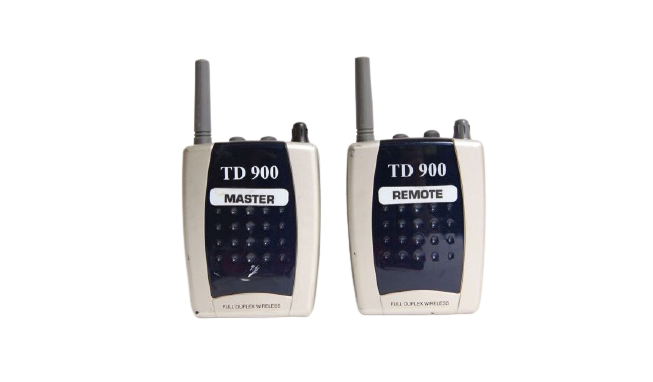

EARTEC TD900 Full Duplex Wireless Communication System User Manual
FEATURE
Full duplex, two-way transceiverSimultaneous talk – hands free communicationsState of the art digital technology
1 | On/Off, Volume knob |
2 | Talk button
up standby, down talk mode |
3 | Channel selectivity buttonup -channel A, down-channel B |
4,5 | Channel and status indicators A and B startup mode greenstandby mode–redcommunication mode-orange |
6 | Battery low / charge indicator |
7 | Antenna |
8 | Headset socket |
9 | Belt clip |
10 | Charger socket |
11 | Channel dip switchinside battery compartment |
TD900 Wireless Instruction
Charging the Radios
The batteries that provide power to your system must be “drained”. Simply follow the pro-cedure below within 48 hours before each use:
- Turn ON all radios until LED lights turn OFF to drain battery power.
- Turn power OFF to all radios.
- Plug AC Charger/Adapter into a wall outlet and attach to radio charge socket.
- Charge each radio for 10 – 12 hours.
- The transceiver battery charges fully in 10 – 12 hours. To prevent overheating of the charger and to prevent damage to the charge circuit do not leave the charger plugged in for more than 24 hours. A fully charged battery will operate in full duplex up to 5 hours.
Start-up Your Radios
- Batteries must be fully charged before first use.
- Begin with radios in OFF position.
- Turn radios ON by rotating VOLUME dial clockwise.
- Using CHANNEL button, select the operating frequencies indicated by green light (A or B).
- Set TALK button on each radio to STANDBY.
Using Your Radios & Headsets
- Charge radios as indicated above.
- Plug headset jack into headset socket marked MIC/EARPHONE.
- Position headset microphone directly 1-T in front of mouth.
- See below for use with your specific system setup.
NOTE: lo communicate property. all radios in the group must be set to the same frequency the dip switch channel programming feature is located inside the battery compartment. See page 5 for channel combinations.
For Systems with 2 Radios
- Charge radios as indicated.
- Identify MASTER radio, and turn it on.
- Set MASTER radio to transmit: press the talk button once, and confirm orange LED light.
- Turn on REMOTE radio. LED light should be red, indicating standby mode.
- Switch REMOTE to transmit by pressing the talk button. Light will turn orange.

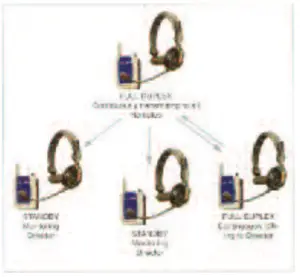

For Systems with 3 or More Radios
The TD904 Pro Series is a multi station team communication system. Each Pro Series intercom provides the master hands free voice contact with an unlimited number of remote stations. All remotes continuously monitor the master. One at a time, remote users can switch from standby (listen only) to continuous talk operation.
- Charge radios as indicated above.
- Identify MASTER radio, and turn it on.
- Set MASTER radio to transmit: press the talk button once, and confirm orange LED light.
- Turn on REMOTE radios. LED light should be red, indicating standby mode.
- Any REMOTE user may switch to transmit by pressing the talk button. Light = orange.
- REMOTE users should switch from transmit back to standby mode after conversation is complete. This allows another REMOTE user to switch to transmit mode.
Specification
Dimensions | 3″w x 1.5″d x 4″h | Output | 50mV/m (FCC Part 15) |
Weight | /.8 oz | Deviation | +/-/7KHz |
Modulation | Frequency modulation | Modular distortion | <5% |
tuning | tuning PLL Frequency synthesizer | Spurious radiation | >50 dBC |
Power | 4.8V NiCad Battery, 700 mAH | Sensitivity | <-116dBm Q-1_) 12dB SINAD |
Battery life | Standby(50mA)-12 hours Communication(140mA) =5 hrs | IF bandwidth | 15KHz |
Charging time | 70rnA/hour trickle, 12 hrs for full | Image rejection | >60 dB |
Frequency range | 902.6-904.55:925.6-927.55 MHz (40 channel combination) | Operating temp | -10 to +40°C |
Antenna | .4″w x 2″hu | Switches | Off/Vol, Channel Select, Full/Standby |
Warranty
Eartec communication systems are warranted from malfunction due to manufacturing defects by the original purchaser for the following periods after date of purchase:
Transceivers
- Digicom: 1 year
- MC-1000: 1 year
- TD900: 6 months
- Simultalk 24G: 6 months
Headsets
- Heavy Duty: 1 year
- Midweight: 6 months
- Lightweight: 30 days
- Rechargeable batteries: 60 days
What is Covered
If you require warranty service for your product within the warranty period ship your product pre-paid only to Eartec. The end user is responsible for the initial shipping charges to our facility. Eartec will pay the return ground shipping charges if the product is covered under the warranty.
This warranty covers defects in materials and workmanship in all Eartec products excluding: (a) Damage from misuse, abuse, or general wear and tear. (b) Repairs or product modifications by anyone not authorized by Eartec Co_
General Service
All repair work due to general wear and tear will be performed for the cost of replacement parts, radio re-tuning and return shipping from the Eartec factory.
Service
Eartec Co.145 Dean Knauss Drive Narragansett. RI 02882:COD or Collect deliveries will not be accepted.
A letter explaining any problems and work to be performed must accompany each repair shipment with: Name. Business, Complete Address. Telephone Number, Email Address
Returns
Eartec products may be returned for credit or refund only if received in the original packing and in “As New” condition within 30 days of date of purchase.
EARTEC Co.145 Dean Knauss DriveNarragansett, RI 02882Tel: 1-800-399-5994InRI: 401-782-4966Fax: 401-789-7300
