USERS MANUAL EBS STANLEY CLARKE PREAMP
A -TUNER OUT. This output is taken at the FX send and can be used to connectto a tuner. This output becomes active when Mute is on.
B/C -FX LOOP. Connect a TRS cable, such as the EBS ICY-30, to B to create anEffects Loop where you can insert your effects. C offer the choice to set theeffects loop in parallel mode.
D-OUTPUT. This is the master output jack to be connected to another amp orpower amplifier.
E- CHANNEL B INPUT. This input is a direct input to the B channel or to both A+Bif the A+B switch is in its’ inner position.
F- A+B. When A+B push switch is in its’ OUTER position:Selects between A or B channel when only the A input (INPUT) is used.If XLR input or B channel 1/4” jack is used at the same time, B selects this source.
When A+B push switch is in its’ INNER position:Selects between A or A+B, i.e. either only A or A in series with B channel whenonly A input is used. When B channel input jack is used or XLR is selected forchannel B, both channels are mixed together and the A/B foot switch has noeffect.G- INPUT – The A channel input is a low noise, high impedance instrument input.

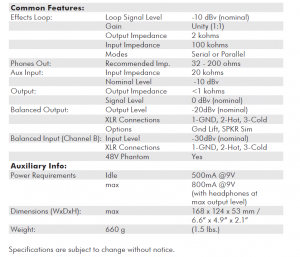

TECHNICAL SPECIFICATIONS
FOR MORE PEDALS, AMPS &ACCESSORIES, SCAN THE QR-CODE TO VISITWWW.EBSSWEDEN.COM

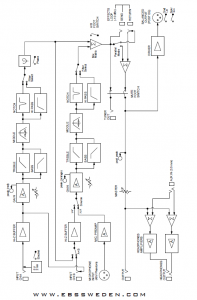

BLOCK DIAGRAM – STANLEY CLARKE ACOUSTIC SIGNATURE PREAMP
