Solar Powered Attic Fan
- This is a DC solar exhaust fan with a high flow of 3000 CFM, which can meet most of the air circulation needs of family life, sheds, attics, roofs, attics, courtyards, greenhouses, RV, boats, cabin, chicken coops, doghouse, garages, storage rooms, factories, etc.
- This solar exhaust fan has good working efficiency no matter in summer or winter. Helps eliminate excess heat and moisture in the attic, thereby protecting the roof system from premature damage.
Wide Application
Benefits of This Solar Powered Attic Fan
- POWERFUL & EFFICIENT – Larger airflow up to 3000 CFM, work automatically at low voltage, even on cloudy days.
- AFFORDABLE & CUT COOLING COSTS – Fully automatic operation powered by solar energy, cut your cooling costs with low electric power expense.
- WELL-MADE QUALITY – Stainless steel material and galvanized steel frame, highly resistant to corrosion.
- EASY INSTALLATION – Plug and play, beginner-friendly.
- FOLDABLE DESIGN – The foldable design of the solar panel saves storage space and is convenient to carry.
- READY-TO-USE – It’s a ready-to-use solar fan system for home, shed, garage or RV, outdoor, etc.
- MULTIPURPOSE – Perfect cooling and ventilation solution for any space at your home – including the attic, garage, shed, and more.
- DECENT WARRANTY – 1-year warranty and replacement parts are available.
Caution
- For general ventilating use only. Do not use to exhaust hazardous or explosive materials and vapors.
- To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off the power unit.
- This ventilator operates when the solar panel is exposed to sunlight. To reduce the risk of injury while installing, servicing, or cleaning the unit, cover the solar panel with cardboard or disconnect the wires from the motor terminals (note wire locations when disconnecting).
- The recommended open-air inlet for this ventilator is around 0.85 square feet (R=6.3in/0.53ft). The best location for these air intake vents is under the eaves with direct access to the attic. Failure to provide these intakes could cause natural-draft gas appliances to backdraft.
- Your attic fan installation will create a screened opening into your attic space. During a heavy rainstorm, there could be a light spray of rain into this attic space. This is a normal condition with all attic ventilators and will not cause any damage to the structure. We recommend that you do not store any valuable articles directly under the fan opening on the roof.
- This attic fan is intended for sidewall installation. It is one perfect choice to ventilate the attic, boat, shed, greenhouse, caravan, workshop or garages, etc.
- Take care to avoid getting paint on the solar panel.
- The installation instructions contained in this document are only a recommendation and individual professionals may have their own methods of installation. If your roof has an existing warranty, installation of this product by anyone other than those who installed the roof may jeopardize any future warranty claim. Please check with the original installer of your roof if this is a concern.
- When working with asphalt shingles in cold weather (below 40oF), take care to avoid damage to the shingle edges and corners.
Packing List
| 1 piece | 12 5/8 inch DC Solar Fan |

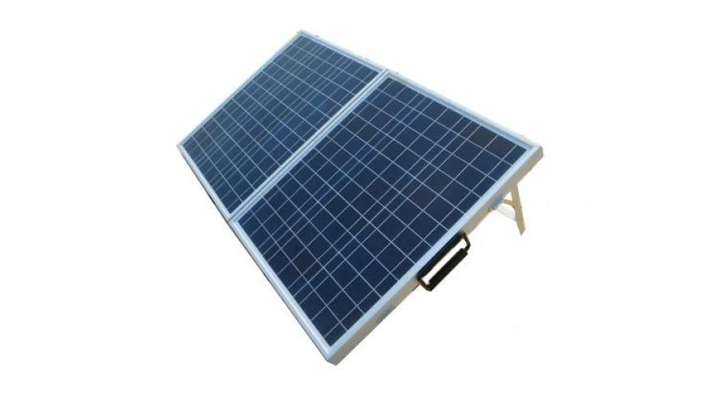

| 1 piece | 30W Folding Solar Panel |
| 1 piece | 16 2/5ft (5m) Wire with Connector |
| 1 set | Mounting Brackets & Screws |
Specifications
| DC Fan | |
| Motor life span | more than 10000H |
| Wire length | 16 2/5ft (5m) waterproof wire |
| Bearings | Roller bearings |
| Blades Material | High Strength Aluminum alloy |
| Shell Material | High Strength 304 Stainless steel |
| Diameter | 12 5/8in (320mm) |
| High | 2/5in (125mm) |
| Fodable Solar Panel | |
| Irradiance and cell temperature | 1000W/ ㎡ AM1.5 25 ℃ |
| Open circuit voltage (Voc) | 21.6V |
| Max power voltage (Vpm) | 18V |
| Short circuit current (Isc) | 1.83A |
| Max power current (Ipm) | 1.67A |
| Open size | 27.8*13.8*0.7in (707x350x18mm) |
| Folding size | 13.8*13.8*1.5in (350x350x38mm) |
Tools and Materials Required
Impact drill/electric hammer (for opening holes)Screwdriver (screw the screws to the exhaust fan and the wall)Wire stripper (required for bare wire version)Compasses (determine the size of the wall opening)Ruler (adjust the opening size of the compass)Glue (after installation, used to seal the gap between the exhaust fan and the wall)
Installation Preparation
1. This solar fan is a perfect cooling and ventilation solution for any space at your home – including the attics, roofs, garages, sheds, greenhouses, doghouse, RV, and more.1. This solar fan is a perfect cooling and ventilation solution for any space at your home – including the attics, roofs, garages, sheds, greenhouses, doghouse, RV, and more.

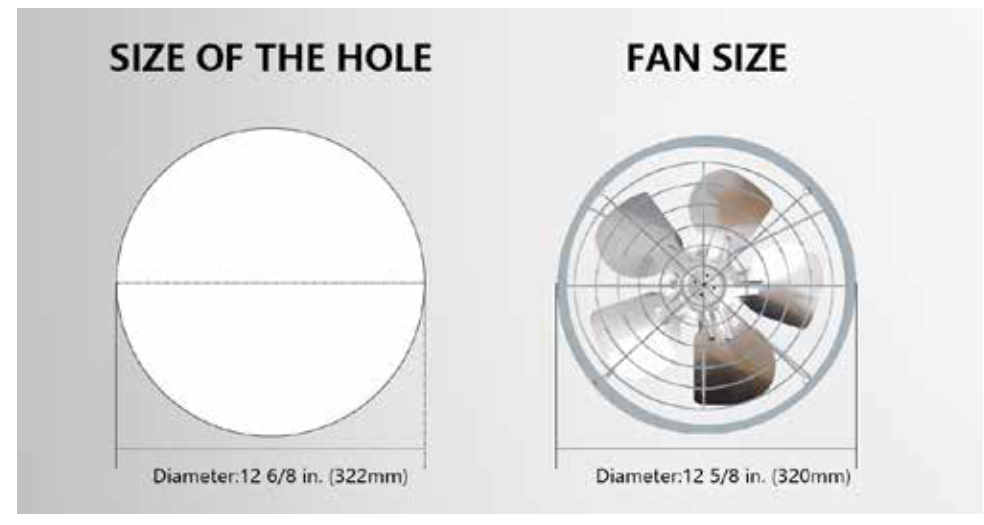

3. Firstly use a compass or ruler to measure the inner radius of the exhaust fan, then fix it to the wall with a compass, turn out the size of the mounting hole we need, and then use an assault drill or an electric hammer to drill the required hole.
4. Install the exhaust fan into the hole, then use a screwdriver to screw on the corresponding screws, and seal the gap between the exhaust fan and the wall with glue.
NOTE: If you want the air to blow OUT, please install the fan with the blade facing away from you. If you want it to suck air IN, then mount with the blades facing you. The installation direction depends on your needs, thanks.

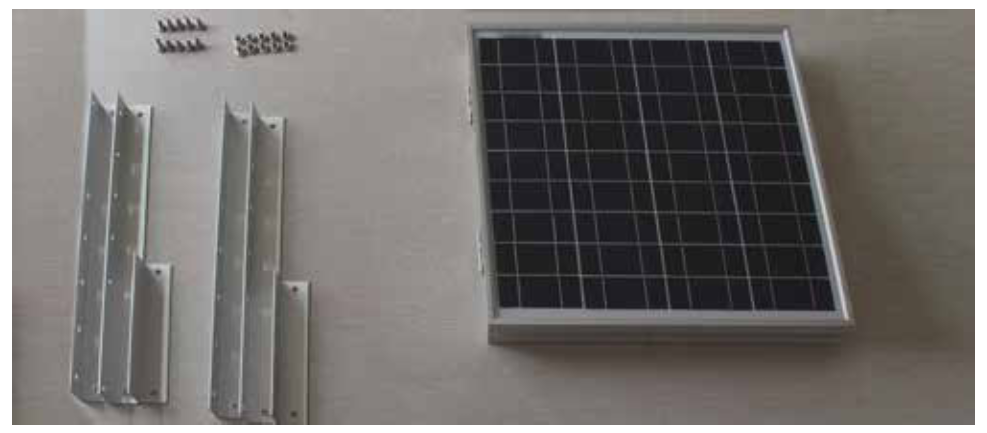

Install the Brackets
NOTE that please place the brackets in the same way as the picture shows, and the orientation is uniform, in case the brackets cannot be installed due to the orientation of the brackets.
7. Connect the cable of the solar panel to the cable of the exhaust fan. Just plug the quick connector of the exhaust fan to the quick connector of the solar panel directly. Please don’t reverse the pin/power connector and make sure it has the right connection.
Warranties
Limited 365 Day Warranty (Retail)ECO-WORTHY makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 365 days from the date of purchase. This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear, and tear, or lack of maintenance. To take advantage of this warranty, the product or part must be returned to us with transportation charges prepaid.Proof of purchase date and an explanation of the complaint must accompany the merchandise. If our inspection verifies the defect, we will either repair or replace the product at our election or we may elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will return repaired products at our expense, but if we determine there is no defect, or that the defect resulted from causes not within the scope of our warranty, then you must bear the cost of returning the product.
[email protected]
Call:1-866-939-8222
Email:[email protected]
Facebook QR Code
Installation VideoTo see how to assemble the solar fan, please scan the QR code of the installation video that shared on Facebook, thanks.
Questions & Answers
For more questions. please feel free to contact us. we will reply to you within 24 hours, thanksQ: Where places the solar fan can be used for?A: The solar fan can be used for sheds, roofs, attic, greenhouses, RV, boats, cabin, chicken coops, doghouses, etc. It delivers an eco-friendly approach to neutralize moisture and drive out heat, can prolong the life of your roof structure and air conditioning while helping you save up to 30% on A/C costs.Q: How to install the DC fan to make it runs/blows in the right direction?A: If you want the air to blow OUT, please install the fan with the blade facing away from you. If you wan it to suck air IN, then mount with the blades facing you. The installation direction depends on your needs, thanks.Q: What is the required hole size for the DC fan?A: The diameter of the fan is 12 5/8 in. (320mm)Q: What is the best installation angle for the solar panel?A: It must have direct exposure to the sun to work. The best working angle of solar panels is facing south, forming an angle of 20-30 degrees with the horizontal. Of course, you need to make appropriate adjustments according to your latitude.Q: What should I do if the solar fan doesn’t work after setting up or working for several months?A: 1. Please install the solar panel under sunlight. It’s a 100% solar power unit. Must have direct exposure to the sun to work. If you install it in the dark, it won’t work.2. Please check whether you had reversed the pin/power connector and make sure it has the right connection.3. If the fan still doesn’t work, please connect the DC fan to your 12V battery directly (please make sure your 12V battery has enough power), then check if the fan works. If it doesn’t work, there might be some problem with its motor, please contact the customer service team for a replacement motor.4. If the fan only works when connecting with the battery, there might be a problem with the solar panel. Please put the solar panel under sunlight, then use a multimeter to check the panel’s voltage. Generally, the voltage is around 18V to 22V, the current is around 1.3A. If the voltage number you got is lower than 18V, please contact the customer service team for a replacement solar panel.Q: Can the cable length be extended?A: Yes, the cable length can be extended. The solar panel comes with 1 piece of 16ft (5m) extension cable which has a connector for the plug to the fan conveniently.Q: Does it come with a thermostat? Can a thermostat be added to itA: No thermostat for the fan is provided. It runs automatically when the solar panels are exposedto sunlight and conversely shuts off when it’s dark. It is not temperature controlled. And thethermostat also can be added to it, thanks.Q: How many hours the fan works?A: As long as the sun is hitting the grid the fan is on. It works from the sun up to the sun down but in wintertime a few hours less.Q: Will the fan work at night?A: No, the solar tan is 100% solar power unit, which means it only runs off the Sun, so it won’t run at night, unless you have one battery backup for it If you need a fan that can work at night. we have solar-powered fan kits with battery. please search these ASINS on Amazon BO7MHTC73F. B089K3CD7S. B07Y2351 NVQ: How about the fan noise?A: The noise of the working fan is around 70db, which is acceptable. Blows strongly and steadily on a clear day.Q: How much cfm does this fan exhaust?A: It depends on the space and sunlight. On a bright sunny day, it is close to 1500cfm for up to 2000 square feet. The cfm can be different in every home.Q: What is the warranty policy?A: One-year warranty for the DC fan, 5-year warranty for the solar panel, and free replacement of accessories are available. We always stand behind our products, any questions, please feel free to contact our customer service team, thanks.Q: Can the fan be purchased separately?A: Yes, the DC fan can be purchased separately by ASIN B08BZPPP8D, thanks.
