WHAT IS IN THE BOX AND BASIC

1. 3/8″-16 Mounting Screw
2. Safety Lock
3. Information Screen
4. On/Off Button 5. Link Port
5. 6. DC IN Socket
6. Battery Bracket
7. 3 mm Allen key
8. 3/8″ Mounting Port

ATTACHING PAN PRO TO YOUR TRIPOD

1. Lock the safety lock to prepare Pan Pro for attaching.
2. Attach your Pan Pro on your tripod by rotating it clockwise.
3. Attach your tripod head to 3/8″-16 mounting port on Pan Pro.
4. Unlock the safety lock and Pan Pro ready for use.! Make sure you locked the safety lock when you carrying the setup.

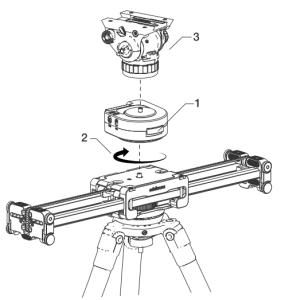

ATTACHED PAN PRO TO SLIDER

1. Lock the safety lock to prepare Pan Pro for attaching.
2. Attach your Pan Pro on your Slider PLUS by rotating clockwise.
3. Attach your tripod head to 3/8″-16 mounting port on Pan Pro.
4. Unlock the safety lock and Pan Pro ready for use.

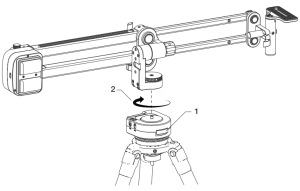

ATTACHED PAN PRO TO JIBON

1. Lock the safety lock to prepare Pan Pro for attaching.
2. Attach your JibONE on your Pan Pro by rotating wheel clockwise.
3. Unlock the safety lock and Pan Pro ready for use.

ALTARNATE PAN PRO SETUP FOR JIONE

LOAD BATTERY AND ON/OFF

1. Attach your LP-E6 Battery onto Battery Bracket by sliding it left.
2. You can also use DC IN socket to power up your Pan Pro. DC IN socket is the priority when DC IN and LP-E6 Battery are attached.
3. To turn on and turn off the Pan Pro, hold On/Off button down until the opening bar in the information screen is full-filled.

   ! DC IN socket does not charge the LP-E6 Battery.

MANUAL TENSION ADJUSTMENT OF PAN PRO

If you see “Failed to Move” warning on edelkrone App when trying to operate Pan Pro;

1. Lock the safety lock and disassamble Pan Pro from your setup.
2. Tighten the manual tension screw with 3 mm allen key from bottom of Pan Pro as shown above.
3. Reassemble Pan Pro with your setup, release the safety lock and try to operate.
4. Keep trying first 3 steps until you get no warning.! Make as little adjustments as possible.! Heavier setups need more tightness.! Overtightening this adjustment screw effects manual operating. Please be sure you are still able to operate manually. Hand control gives faster setup time while setting your key poses & targets.

START USING

1. Download the edelkrone App to your mobile device from the App Store or Google Play. Links can be found at www.edelkrone.com/products/pan-pro
2. To operate Pan Pro, hold On/Off button down until the opening bar in the information screen is full-filled.
3. Pan Pro is now ready for smart pairing or manual pairing through Bluetooth/Wifi.
4. After pairing the devices, you are now ready to use your Pan Pro. Just keep following the instructions on your mobile device or visit manuals.edelkrone.com for a detailed video instruction.

Always start using with fully charged batteries. Make sure your mobile device’s Bluetooth connection is on.

 For more information and tips about your Pan Pro, please watch the user’s I manual videos at: hffp://edel.kepnpr.
