edelkrone sliderplus v5 pro User Manual

Table of Contents

edelkrone sliderplus v5 pro

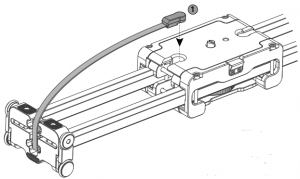

Attach either the Manuel control belt or the motion control belt depending on use.
Remove the wheel.
Pass the belt through the hole.
Attach the wheel back.

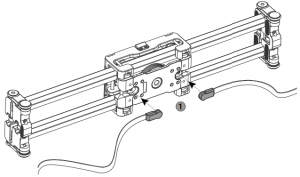

Attach the other head of belt
If belt tension is low, you may increase it by loosening the side wall screws and pulling out the side walls until desired tension is achieved.

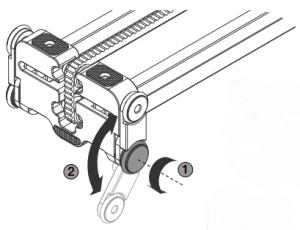

To adjust the legs:

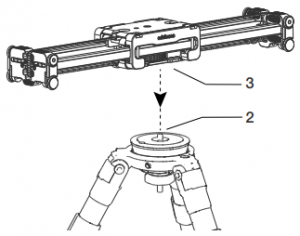

SliderPLUS has 3/8”-16 screw for your tripod head hidden inside. You can access this screw with the help of a coin. Using a coin, turn the screw until it pops out. To hide the screw back again just press it down and turn it counter clockwise.
Place your tripod head on the screw and tighten clockwise.
Attach your camera to your tripod head

You can mount any camera head or arm to your SliderPLUS with 1/4” mounting screw.

To get inclined shots

Place your SliderPLUS onto 3/8”-16 mounting screw of your tripod head.
Attach your FlexTILT Head or any camera head onto your SliderPLUS.
You should attach your Slide Module to incline side of the SliderPLUS.
You should tighten the slide tension of the Slide Module to get inclined motion.
Place your camera to FlexTILT Head or any camera head.! If you are not able to slide manually after inclined operation, try loosening the tension. Make as small adjustments as possible.! Please make sure that your tripod legs are opened widely enough to prevent falls and balance issues.

Separate the slider upper and lower carriages while your slider is resting on a flat surface as shown.
Remove a double sided sticker from the cleaning kit.
Stick one side of sticker on slider rail as shown and peel off the white cover from the sticker.
Slide the slider cars from one end to the other to clean the wheels.
Repeat this process for all wheels.

Please contact our dedicated customer care team for recommended tripod legs.

In order to get perfect results with you SliderPLUS please attach your SliderPLUS directly to tripod legs, not to tripod head.
If your tripod has a feature that allows you to extend the height from its neck, we suggest keeping it down and as tight as possible in order to prevent a rainbow effect.
Please make sure that your SliderPLUS withstands within the area of the tripod legs to prevent falls and balance issues. Always make sure that your system is leveled and balanced.
Always keep your slider locked while it is not in use.
Use built-in foldable legs to level your system.
