EFM TWS Pelion True Wireless Stereo HD Earbuds
User’s Manual
INTRODUCTION
Thank you for choosing the EFM® TWS Pelion Wireless HD Earbuds! You can use this product with all IOS and Android compatible Bluetooth® devices to stream music and enjoy handsfree calling. In order to get the best results when using these earbuds, please read this manual first.
PACK CONTENTS
- 1 x EFM® TWS Pelion Eearbuds & Charging Pod
- 1 x 25cm USB Charging Cable
- 1 x User Manual
- 3 x Earbud Tips(Sizes: Small / Medium / Large)
- 2 x Sports Earbud gels (Sizes: Small / Medium)
- 1 x Sports Ear hook
SPECIFICATIONS
- Frequency Response: 20Hz – 20KHZ
- Sensitivity: 91±3dB
- Impedance: 16Ω±15%
- Driver: 6mm Dynamic
FEATURES
- IPX7 Water Proof
- Handsfree function
- 5.5 days standby time / 6 hours music and talk time
- Wireless microphone / multi-function control (10m range)
- Voice commands: Activate Siri or Google Assistant
SAFETY PRECAUTIONS
- Keep this product and its charging cable away from excessive heat.
- Do not operate this device with a damaged cable or after it has malfunctioned or has been damaged in any manner.
- Do not disassemble this product.
TECHNICAL SPECIFICATIONS
General Headset Features
OVERVIEW DIAGRAM

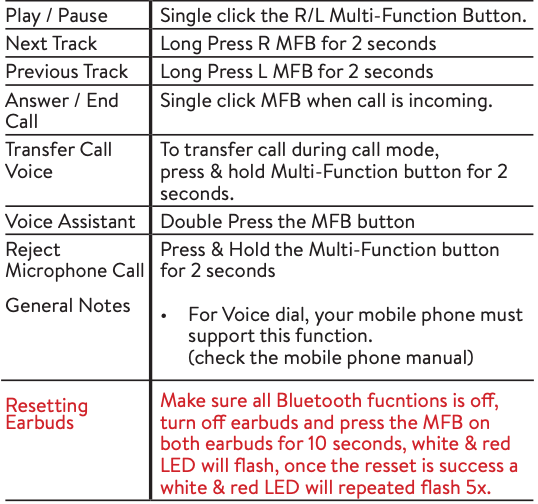

HOW TO USE/GENERAL FUNCTIONS
CHARGING YOUR EARBUDS AND CHARGING POD
Fully charge the battery for 3-4 hours before using the earbuds for the first time, or when they have been unused for extended periods. The charging pod has a built-in Power Bank and is charged along with the earbuds. You can charge the earbuds by placing them into the charging pod without connecting to a power outlet.
- Place the earbuds into the charging pod, the LED indicator on each earbud will be on when charging and turn off when fully charged
- Connect one side of the supplied cable to the charging port of charging case and connect the other side to any USB power source. The Charging Pod will indicate its charging status by a flashing white light.
- When the device is fully charged, the LED will stop flashing.
LISTENING TO MUSIC
Now you have properly paired and connected your earbuds to your phone, the rest is easy. To play music, launch your favourite music player app (eg. Spotify, Apple music etc) and start playing your songs.
- To pause music, click the button on MFB earphone once.
- To resume music, press the button on the MFB earphone.
- Next tracks, Long press the button for 2 seconds on the R MFB
- Previous tracks, Long press the button for 2 seconds on the L MFB
CALLS & VOICE COMMANDS
When earbuds are connected to your phone, you can answer and control the incoming calls.
Answer / End a Call
When a call comes in while you are wearing the earbuds, you will hear a notification sound from your earphone.
- To answer a call, click the button on the earphone once.
- To end a call, click the button once again.
- To transfer a call during call mode, press and hold button for 2 seconds.
VOICE COMMANDS
Double click the MFB earphone to activate Siri or Google Assistant. You will hear ‘Voice Dial’ prompt from the earphone. You can start dictating commands to Siri or Google Assistant.
TURN EARBUDS OFF AND ON
There are two ways you can turn the earbuds Off/On: WITH charging pod and WITHOUT the charging pod.
The easiest way to turn earbuds on/off is with the charging pod.

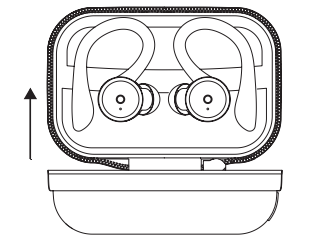

Turn Earphones Off/On WITH Charging Pod
To turn off the earbuds, put earbuds back into charging pod.
Turn Earphones Off/On WITHOUT Charging Pod
You can turn earbuds on/off without using the charging pod.
To turn off earbuds, press and hold the button on both the earbuds for 5 seconds until you hear notification’ from both earbuds Both earbuds will turn off together.
To turn on earbuds, press the button on BOTH earbuds for 5 seconds you will hear ‘notification’ from both earbuds.
