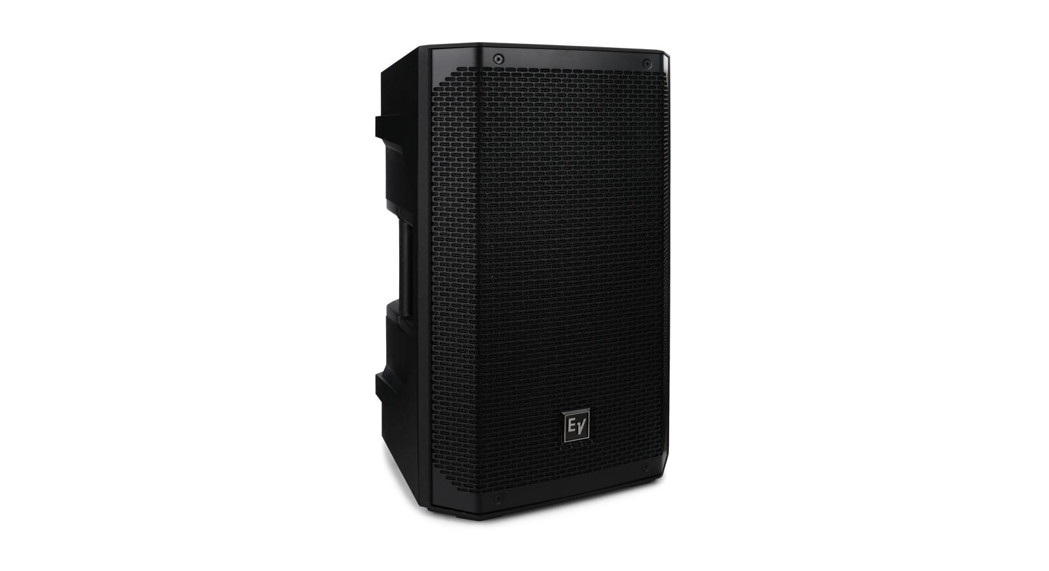

ELX200-10 10″ 2-Way passivespeaker
- 1200 W (Peak), 127 dB peak SPL system that is reliability verified with over 500 hours of abuse testing and endurance testing to 4x typical industry practices.
- 1.4 inch DH-1C (1-inch exit) titanium compression driver for an extended transparent high-frequency response.
- High-output EVS-10M woofer designed to exacting specifications for superior durability and exceptional low-frequency reproduction.
- EV-patented Signal Synchronized Transducers (SST) waveguide design provides precise and consistent coverage, minimal distortion, and maximized acoustical loading.
- Professional-grade hardware: three M10 threaded mounting points for forged eyebolts, integrated pole-mounts, and the proven ZLX two-handle design for easy lifting.
The ELX series is designed to deliver an unprecedented combination of sound quality, portability, and durability at its price point. All-new custom components—tested to levels far exceeding the industry norm—make ELX200 a robust workhorse capable of handling real-world abuse and professional applications beyond the capability of competitors’ products in its category.Every aspect of ELX200 is designed for ideal results as part of the whole – the acoustical, electrical, and mechanical components all work together seamlessly.The full-range models feature a low profile form factor designed with a high-spec composite enclosure to balance weight, manageability, as well asstructural integrity. The proprietary features that have made the other members of the EV portable speaker family a go-to for best-in-class performance are also present: Signal Synchronized Transducers (SST) waveguide concept.EV’s industry-leading quality and testing procedures yield efficient transducer design and meaningful specs, resulting in components that deliver accurate, linear response at the system’s highest output levels.Translation: loud and clear all the way up to the limit.Unified in one of the strongest full-range composite enclosures ever built by EV. The ELX200 is established as the new benchmark for toughness – both acoustically and physically; maximum efficiency with maximum toughness.
Technical specifications
| Frequency response (-3 dB)¹ | : 65 Hz – 20 kHz |
| Frequency range (-10 dB)¹ | : 49 Hz – 22 kHz |
| Axial sensitivity¹ | : 90 dB |
| Maximum SPL¹² | : 127 dB |
| Rec. high-pass frequency: | 55 Hz |
| Coverage (H x V): | 90˚ x 60˚ |
| Power handling: | 300 W Continuous, 1200 W Peak |
| LF transducer: | EVS-10M 254 (10 in) |
| HF transducer: | DH-1L 1-inch titanium compression driver |
| Crossover frequency: | 2kHz |
| Nominal impedance: | 8 Ω |
| Minimum impedance : | 7.5 Ω |
| Connectors: | Dual NL4 |
| Enclosure: | Polypropylene |
| Grille: | 18 AWG steel with powder coat |
| Suspension: | (3) M10 suspension points |
| Color: | Black or white |
| Dimensions (H x W x D): | 531 mm x 330 mm x 319 mm(21.0 in x 13.0 in x 12.6 in) |
| Net weight: | 13.4 kg (29.6 lb) |
| Shipping weight: | 15.3 kg (33.7 lb) |
¹Full-space measurement.²Maximum SPL is measured at 1 m using broadband pink noise at rated peak power rating.
NoticeThis Electro-Voice loudspeaker should be suspended overhead only in accordance with the procedures and limitations specified in the User’s Manual. This system should be suspended with certified rigging hardware by an authorized rigging professional and in compliance with local, state, and federal overhead suspension ordinances.
Dimensions:
Frequency response and impedance:
ELX200-BRKT Wall mount bracket, ELX200 2-way, blackWall mount bracket for all ELX200 full-range models, blackOrder number ELX200-BRKT | F.01U.326.072ELX200-BRKT-W Wall mount bracket, ELX200 2-way, whiteWall mount bracket for all ELX200 full-range models, whiteOrder number ELX200-BRKT-W | F.01U.361.514Ordering informationELX200-10 10″ 2-way passive speakerPassive 10-inch 2-way loudspeaker, blackOrder number ELX200-10 | F.01U.326.055ELX200-10-W 10″ 2-way passive speaker, whitePassive 10-inch 2-way loudspeaker, whiteOrder number ELX200-10-W | F.01U.361.346AccessoriesEBK1-M10-3PACK Forged M10 3pack short shank eyebolt kitForged M10 short shank eyebolt kit for ELX10/10P, ELX 12/12P, and ELX 15/15P, 3-pack, silverOrder number EBK1-M10-3PACK | F.01U.327.889ELX200-10-CVR Padded cover for ELX200-10, 10PPadded cover for ELX200-10/10P, blackOrder number ELX200-10-CVR | F.01U.326.065
Represented by:Germany:Bosch Sicherheitssysteme GmbHRobert-Bosch-Ring 585630 GrasbrunnGermanywww.electrovoice.com
Bosch Security Systems, LLC12000 Portland Avenue SouthBurnsville MN 55337USA© Bosch Security Systems2021Data subject to change without noticeF.01U.326.901 | 202107271159 | V3 | July 27, 2021
