ELECTRONIC SCALE INSTRUCTIONSeX310 Commercial Shipping Scale
INTRODUCTION
Congratulations on the purchase of your new Royal model eX-310 Electronic, Commercial Shipping Scale. We recommend that you read this instruction manual carefully to become familiar with the operation of the product. The manual explains, in simple steps, how to operate and maintain your new scale. Please retain this guide for further reference.
If you have questions regarding the scale, please call Royal Customer Support, toll-free, at +1-800-272-6229 (in Canada call 1-888-266-9380 and in Mexico call +(52)-55-53-33-1333); or visit Royal’s web site at http://www.royal.com.
The eX-310 Scale is designed for weighing boxes, packages and other heavy items. The scale is also ideal around the house or even in a gym as a bathroom scale.
Please note that the weights provided are for reference and informational purposes only. It is not intended that the weight be used or relied upon for any commercial use.
Warning: To prevent damage, DO NOT exceed the specified weight capacity of the scale

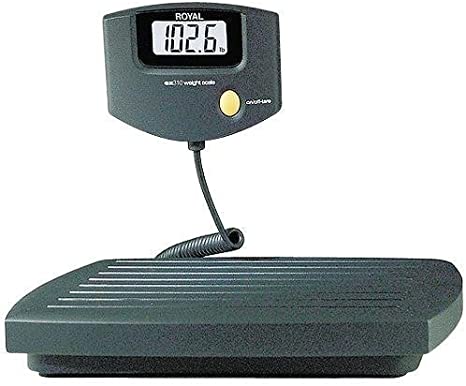

REMOTE DISPLAYThe wired, remote display allows you to conveniently weigh large boxes without interfering with the display readout. We recommend hanging the display on a wall using two nails aligned with the two hanging-holes on the back of the display unit.
BASIC OPERATION
- Ensure that the scale platform is placed on a hard, flat, level surface, such as the floor or a tabletop. Do not place on a plush rug, carpet or other soft or uneven surfaces.
- Press the on/off-tare button. Do not place anything on the scale platform before or while the unit is turned on. Wait for “0.0” to appear on the display. The scale is then ready for weighing.
- Place the item on the scale; the weight is displayed within a couple of seconds.
IMPORTANT PRECAUTIONS:
- If placed on the floor, be sure the scale platform is out of the way and installed in a protected location where no one can step-on, kick or trip over the product.
- The scale should not be placed on a porous surface or one that has been treated with any substance that may interact with the rubber feet. Depending on the surface or cleaning solution, the rubber may leave marks on the surface. As a precaution, do NOT keep the scale on any valuable surface, such as antique or precious/fine wood tables, desks, floors, etc., for any extended periods of time.
The “LOW BATTERY” icon will turn on in the far left side of the display when the battery power is low. Replace the two “AA” (1.5-Volt) batteries as soon as possible or switch to using the AC adapter included with the unit.
AUTO POWER OFFThe unit automatically turns itself off after a period of 120-seconds of inactivity. To restart the scale, simply press the on/off-tare button.
UNIT OF MEASUREThe scale can measure the weight of an item in either pounds or metric (kilograms). While the scale is turned-off, move the switch located on the back of the remote display to either Lb for a weight reading in Pounds or Kg for a weight reading in Kilograms. The unit of measure should only be selected or changed while the scale is turned-off.
TARE FUNCTIONThe tare function allows the display to be reset to show a weight of zero, even after placing an object on the scale. This feature allows you to get the net weight of an item in a container or a box.
- Place the container or box on the scale platform, the weight of which you do NOT want included in the weight shown on the display.
- Turn the unit “on” by pressing the on/off-tare key. Once the weight reading of the container is stable, “0.0” appears on the display.
- Place item/contents to be weighed into the container or box.Read the weight of the contents on the display. The weight shown on the display will be the weight of the item in the container, excluding the weight of the container itself.
Remove all items from the scale platform and press the on/off-tare key to turn the scale off and reset it.
IMPORTANT: Please note that the total weight of the container and its contents should not exceed the weight capacity of the scale.
SPECIFICATIONS
WEIGHT CAPACITY: 310-POUNDS (140-KG.) MAXIMUMRESOLUTION (INCREMENTS): 0.2-POUND (100-GRAMS)MINIMUM WEIGHT: 1.0-POUND (500-GRAMS)ACCURACY: +/-1.0% + 0.22-LB. (100-GRAMS)UNITS OF MEASURE: POUNDS OR METRIC(USER SELECTABLE)
OPERATING TEMPERATURE: 0-40 DEGREES CENTIGRADE / 32-104DEGREES FAHRENHEIT
POWER SUPPLY: – TWO “AA” (1.5-VOLT) ALKALINE BATTERIES(NOT INCLUDED) – OR AC POWER ADAPTER (INCLUDED)
NOT LEGAL FOR TRADE
WARRANTY, REGISTRATION & TECHNICAL SUPPORT
PLEASE FILL OUT AND RETURN THE PRODUCT REGISTRATION CARD INCLUDED WITH YOUR NEW ROYAL PRODUCT OR FILL OUT THE PRODUCT REGISTRATION FORM ON THE ROYAL WEB PAGE AT www.royal.com.
BE SURE TO KEEP A COPY OF YOUR SALES RECEIPT!
STANDARD WARRANTY
ROYAL CONSUMER INFORMATION PRODUCTS, INC. (“Royal”), at 379 Campus Drive, 2nd Floor, Somerset, NJ 08875 USA WARRANTS that your NEW Product is free of defects of workmanship and materials. If there is a defect or malfunction of this product, Royal will repair it free of charge as follows:
PARTS: New or comparable rebuilt parts in exchange for defective parts for ONE (1) YEAR from date of customer purchase.
LABOR: Royal provides labor warranty for NINETY (90) DAYS from date of end-user purchase. Product must be sent postage prepaid and insured to Royal in accordance with the warranty procedures outlined below. At completion of the repair, the consumer will be responsible for return shipping charges from Royal, and for any parts or services no longer covered under warranty.
This warranty does not apply to persons who purchased this product second-hand or used.
This warranty does not include adjustments, parts and/or repairs required by circumstances beyond the control of Royal, including but not limited to fire or other casualty, accident, neglect, abuse, misuse, abnormal use or battery leakage damages.
THERE ARE NO OTHER EXPRESSED WARRANTIES EXCEPT AS STATED HEREIN. AFTER THE PERIOD OF EXPRESSED WARRANTY SET FORTH HEREIN, THERE ARE NO EXPRESSED OR IMPLIED WARRANTIES AND THOSE EXCLUDED INCLUDE THOSE OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE. Royal shall NOT be held liable for CONSEQUENTIAL DAMAGES resulting from any failure, defect or malfunction of this product. Some States do not allow limitations on how long an implied warranty lasts and some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
WARRANTY PROCEDURES
TO OBTAIN SERVICE UNDER THE TERMS OF THIS WARRANTY:
Please do the following:
- Send a copy of your original sales receipt showing original purchase date along with your mailing address and a note describing the nature of the problem to:
Royal Consumer Information Products, Inc.Warranty ProcessingP.O. Box 6786Somerset, NJ 08875-6786 USA
Do Not Return the Product to This Address!
- You will receive a return authorization number within 7-12 business days from the date your return request is received if it is determined that there is a basis for a replacement product. The return authorization form you receive will list the return procedures, applicable charges, if any, and the correct shipping address for the returned product.
PRODUCT SUPPORT HOTLINE:
For questions on use of this product or this warranty call +1-732-563-9944 (in Canada call 1-888-266-9380 or in Mexico call +(52-55)-53-33-1333), Monday through Friday during normal business hours. You can also e-mail Royal at .
