EMEET M2 Max Professional Conference Speaker

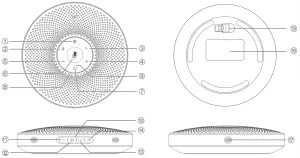

Overview
- Voice IA button
- Bluetooth button
- Answer/End PhoneCall button
- Volume＋ button
- Volume－ button
- Mute button
- Power button
- Status LED
- Source LED
- Rubber plug
- LOCK port
- Headset output port
- LINK Daisy Chain port
- USB port (Type C)
- Dongle
- Nameplate
- MIC hole
Power On/Off
Check battery level
Check battery level
Low battery warning

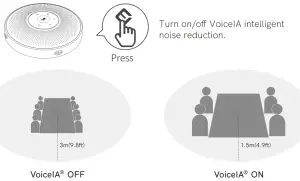

Short press “
”AI Noise Reduction button to enable/disable AI noise function.Turning on Voice IA noise reduction can greatly reduce some noises in the meeting scene, such as from keyboard tapping, air conditioning noise, and general unwanted background noise.
Note: After the noise reduction mode is enabled, in order to maintain good sound pickup effect, please make a call within a sound pickup range of 1.5 m(4.9ft).
MIC Mute Button

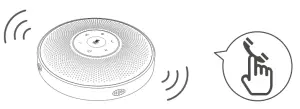

Answer/End Phone Call Button
|
Status |
Action |
Status |
| Incoming call | Press |
Answer a call |
| Incoming call | Press and hold |
Reject a call |
| Call going | Press/press and hold |
End a call |
Volume＋/Volume－ Button
|
Action |
Status |
LED |
| Press |
Volume up | Status LED turns blue |
Press |
Volume down | Status LED turns blue |
Bluetooth Connection
|
Action |
Status | Source LED |
LED |
Press and hold Enter Bluetooth pairing mode |
Bluetooth paired | Steady blue |  |
| Bluetooth not paired | Flashes blue | |
|
| Press |
Bluetooth closed/reconnected | Steady white | |
Notes:a) When turning on the device, it will reconnect to the last computer/mobile phone via Bluetooth whilst it is active.b) Bluetooth closed means it can not be found.
USB Connection
USB Dongle Connection
|
Dongle status |
Dongle LED |
LED |
| Pairing | Flashes blue |  |
| Pairing successful | Steady blue | |
| Call going | Green | |
| Microphone muted | Steady red | |
Headset Connection
Note: When the headset is connected, the speaker is automatically muted.
Daisy Chain Cable
Note: emit Daisy Chain cables must be purchased separately.
Lock Port Setting
Note: The LOCK port is of a Kensington type which requires the user to buy a lock otherwise.
Charging
|
Action |
Source LED |
LED |
| Charging in power-off state | Yellow-green LED indicator flashing | |
| Fully charged in power-off state | Yellow-green LED indicator always on | |
Download Application
Download the emeet Link PC desktop app for software updates
Product Parameters
| Charging input | 5V/1A |
| Rated power | 5W |
| MIC diameter | Φ10mm |
| SPK frequency range | 20Hz-20KHz |
| Bluetooth version | V5.0 |
| Bluetooth range | 20m (in an open environment) |
Note: In case of any change in the specifications, official website information shall prevail.
