INSTALLATION MANUAL
Free-Standing LED Lights BathtubEMPV-59FT1518LED
Distributed by:Empava Appliances Inc.15253 Don Julian Rd,City of Industry, CA 91745 USAwww.empava.com
SAVE THIS INSTRUCTION

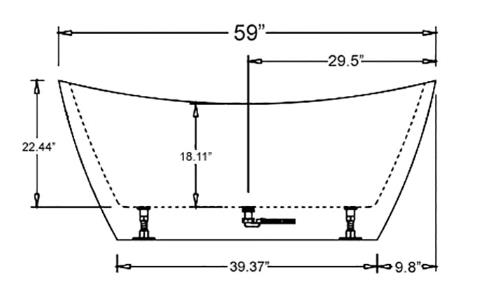

Product Drawing
| Model No. | EMPV-59FT1518LED |
| Size | 59 inch |
| Drain Placement | Center |
| Capacity (Gallon) | 40 Gallon |
| Material | 100% Glossy White |
| Outer Size (Inch) | 59″L x29.5″W x26.38″H |
| RC Power | 3 Pieces AAA 1.5V battery not included |
| Warning | Requires 120V GFCI outlet |
Installation Steps
Remove the Bath from the carton.Ensure the Bath does not come into contact with rough surfaces. Rough surfaces will scratch your Bath. Always ensure that the Bath is placed on cardboard or carpets during installation. Place the Bath in position for installation.
Adjust the feet to make sure the Bath is level.Only if the Bath is level will all water drain to the waste outlet. Please ensure legs are adjusted in line with the base of bath. Check the sits flat.
Connect the Bath to the waste outlet.
Finally, you need to do a final test for drainage.Ensure that the thin masking plastic adhered to your bath during manufacture has been removed. Fill the Bath with water and check that ALL the water flows freely to the waste outlet. A small amount of water may pool owing to surface tension.
Apply a thick layer of silicon sealant around the bath outline to allow it set for 24 hours.This installation guide, the installation of waste connection should be only suitably by a qualified person.
Cleaning and Maintenance Tips
In time to clean. To clean convenient, it is suggested that immediately wash the bath after taking a bath. This time will be expanded easily to remove dirt and soapsuds, after a long time will accumulate in the tub wall and difficult to remove, especially in places where hard water quality in high calcium content, after a long time will form macular at the bottom of the tub wall and faucet. Cleaning method. Use a soft cloth with neutral detergent or soap water. Some attentions. It is strictly prohibited to use sharp objects or hard clean tool friction bath, in order to avoid scratch the bath surface, away from open flame, high-temperature bulb, cigarette butts, etc, so as not to burn the bath surface, Avoid the use of the paint, varnish removal agent such as acetone and chloroform organic volume, this organic volume may cause the bath surface to soften, dissolve or crack.
Self-curing. If there any cut or scratch because of careless. Please coated car polish or metal polishing agent on the surface of the injured, with soft cloth to wipe a few times more hard, if the scratch is deep, can use 1000# water sandpaper remove the scratched, and then use the above method to polished it get the bright surface.
Caution
WARNING: Risk of personal injury.Do not permit children to use this unit without adult supervision.WARNING: Risk of electric shock.Do not permit electrical appliances (hairdryer, telephone, radio, etc.)within 60 inches (1524mm) of this unit.WARNING: Risk of hyperthermia and possible drowning.People using medications and/or having adverse medical history shouldconsult a physician before using this product. WARNING: Risk of personal injury.Do not overfill unit before entering. Entering tub when filled more than2/3 can cause overflow and slippery conditions. Exercise caution when entering and exiting.WARNING: No Food or Alcoholic Beverages.Use of your bathtub immediately after meals is not recommended. Avoid alcohol consumption before or during bathing. Alcoholic beverages can cause drowsiness or hyperthermia resulting in loss of consciousness oreven drowning.WARNING: Pregnancy.If you are or think you may be pregnant, consult your physician before using the bathtub.
