eno Plancha Oceane 50 Instructions

Réf. : 85510 D

INSTRUCTION FOR USE

Plancha is a grill by contact ideal for healthy cooking of any type of food: shellfish, fish, meat, vegetable…The heat output of your Plancha is such that the support of your product must be made of an inflammable material: concrete, fire-proof bricks or ceramics. For your comfort, we have designed a specific and elegant range of trolleys. Please ask your retailer for more details on these.For your safety, we remind you that Plancha is for outdoor use and that no flammable material must be in a radius of ca 0,50 m around and beneath the product. We also recommend not to store any flammable liquid or vapors next to the product.In case you notice a gas smell, you have to shut the valve of the gas cylinder. When not using the Plancha, shut as well the valve of the gas cylinder

LEGAL CONDITIONS

YOUR PRODUCT CAN ONLY BE INSTALLED OUTDOORPLANCHA is not equipped with an exhaust system for burnt material.It must be installed and connected according to current legal installation rules.Special attention will be paid to rules about air ventilation. An input of 15 m3 / h of fresh air is required for the feeding in combustion air.

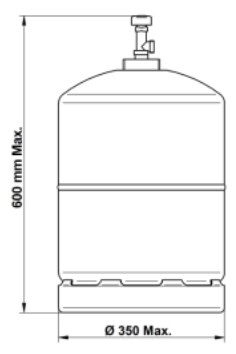

CAREFUL :– When changing cylinders, perform this manipulation away from all flames.– Accessible parts can be very warm, keep young children away.– This appliance must be kept away from flammable materials during use.– It may be dangerous to modify any part of the product– Do not move the product– After use, shut the gas valve on cylinder or wall (Natural gas)– Wait until it is cold before cleaning– Do not use an adjustable regulator– Do not modify the appliance– We advise using 6 or 13 kg cylinders (Butane or Propane) along with a safe regulator. This item can also operate with natural gas (Ask advice from your retailer)– The bowl must be handled when the product is cold– The length of the flexible hose between the product and gas tank must not exceed 1,50 m.

CHOOSING GAS :

Your PLANCHA is adjusted in the factory for butane/propane 28 / 37 mbar use according to information a data badge.

GAS CONNECTION

Two keys are necessary one for the side of gas inlet, the other on the side to screw To ensure a proper setup, avoid twisting or curves the rubber tube.Changing containers must never be undertaken in the presence of a naked flame.Connection for use in category I3+ (Butane / Propane)The product must be connected on the side, close to the knobFor butane (G30), use a safety regulator NF 28 mbar– Flexible metal hose NFD 36 -125 (Length 1 m)– Flexible hose XPD 36 – 112 (Length 1 m)– Flexible hose with two clips XPD 36 – 110 (Length 1 m)For propane (G 31), use a safety regulator NF 37 mbar– Flexible metal hose NFD 36 – 125 (Length 1 m)– Flexible hose XPD 36 – 112 (Length 1 m)The tightness must be checked with soapy water after opening the cylinder. No bubble shows a good tightness.DANGER: Never check tightness with a flame.

BEFORE USE

– Check tightness, if you notice a leakage, shut the gas inlet– Check that hose cannot be in contact with parts of the product that can become warm– If you have equipped your product with a lid against dust or humidity, check that this one is removed– Before the first use, operate empty PLANCHA for 15 minutes (A light smell can be noticed for a while)– The bowl to receive juices must be handled when cold– Before any cooking preheat for 10 minutes (Knobs on the bigger flame)

IGNITING YOUR PLANCHA

The burner is operated by a valve, equipped with an operating knob and an ignitor.The knob bears an indication of valve position

– Open butane or propane cylinder.– Your product is equipped with a locking valve in off position (Mark is clearly indicated with a full disk) giving a total security– Press the knob and rotate it towards the big flame (Sparkle symbol). Then operate the ignitor, a click can be heard and the sparkle ignites the burner.– If the burner does not remain ignited, start operation again. Then adjust the length of the film by rotating the knob toward the small flame symbol. To shut the PLANCHA, rotate the knob toward off position (Full disk)

MAINTENANCE OF YOUR PLANCHA MANIA

Warm PLANCHA: take away the wastes with a wooden or stainless steel spoon towards the bowl, then put white vinegar andsaltYour cold PLANCHA: must be cleaned with a wet sponge and some wash-up liquid (Avoid corrosive materials) and dry very carefully with a clotWhen you do not use any longer your PLANCHA, store it in a dry place or cover it with a plastic bag (Once it is completely cold)Regularly check your hose. Do not hesitate to change it if any doubt (Check validity date)Do not twist the gas hose and keep it away from any part that might be warm. To remain in good condition, it requires a minimum careEach product is checked all along the manufacturing process.If something unnormal occurs, please check that all instructions have been carefully respected. Especially check that theregulator used is corresponding to gas and pressure from your cylinder and that the data badge on a product is corresponding to the gas you are using.Not respecting these rules might damage your product.

 If not used for a long period, check that the burner venturi tube is not blocked.

1) Remove grilling plate	2) Unscrew burner fixing screws with aPhillips screwdriver.	3) Check that burner is not blockedIf the venturi tube is blocked, take the dirt away and reassemble the whole.

CONTRACT GUARANTEEIn case of a problem, contact the retailer from whom you bought the Plancha from.This product is guaranteed 2 years from the date of purchase, against all manufacturing or operating failures.Hotplate: lifetime guaranteeBurners: 10 years limited guarantee valid from date of purchaseDuring this guarantee, ENO after-sales department takes the charge of the cost of parts and labor to fix the product.To operate this guarantee, you have to show the purchasing invoice and the guarantee sheet duly filled and bring the product back to your retailer in its original packaging with proper overpacking.Prior to the guarantee exercise, your retailer will have to give his formal agreement..

EXCLUSIONS OF GUARANTEEThis guarantee does not cover incidents due to bad maintenance or faulty use: fall, shock, a mistake in connection…Guarantee of enameled plate excludes damages resulting from the following circumstances:– Fall or shock– Wrong use or not in conformity with users instructions– Lack of maintenance or cleaning– Use of corrosive detergents is not suitable with enameled surfaces.– Adaptation not complying with safety regulationsThis guarantee is not applied if a person or company not duly entitled by ENO has made repairs or interventions.Availability of parts is guaranteed during 5 years minimum.

Freight and packaging costs are taken over by the customer. Returns carriage forward are not accepted. Once the product is repaired, damages in transport are not covered by this guarantee. Les dommages subis pendant le transport des appareils, une fois réparés, ne sont pas couverts par cette garantie. They must be confirmed by registered mail to the transport company within 3 days. We cannot ensure a guarantee in case these prescriptions are not respected. In case of dispute, the only recognized jurisdiction is the Court of Commerce in NIORT- FRANCE (This clause is considered as essential without which, this guarantee should not exist).

LEGAL GUARANTEE

The dispositions of this guarantee do not exclude the benefit for the purchaser of the legal guarantee against defaults and flaws which is generally applicable by law.

SERVICE CONTROLE

MARQUAGE 13121312 CP 6000Réf. Constructeur : N° 0029

fax. +33 (0)5 49 33 26 84www.eno.fr
