Electric Long Reach Combi Chain Saw Hedge Trimmer KitInstruction Manual
Model No.: LPHTCS1/ M1L-4ET-250+M1E-8ET-460
Read the instructions thoroughly before operating the tool and keep this manual for future reference!

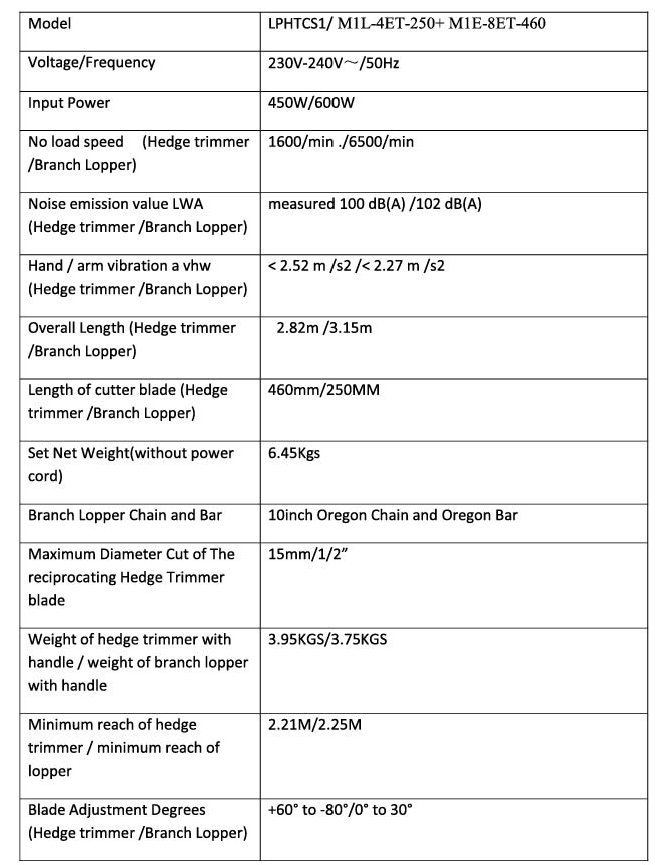

1. Technical Data
2. Intended Use
This 2-in-1 Trimmer and Lopper is intended for the cutting of hedges, shrubs, branches and grass coverings in private domestic gardens and allotments. If used for purposes other than those intended, this will invalidate your guarantee.

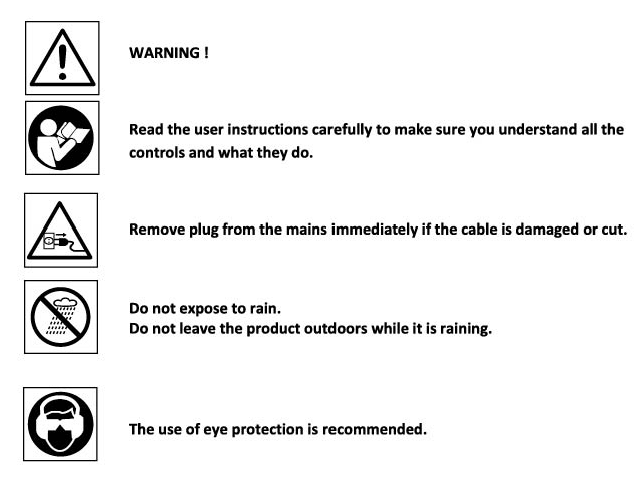

3. Explanation of Symbols on your product
4. Safety Instructions
Warning!
- If this product is not used properly it can be dangerous. The warnings and safety instructions must be followed to ensure reasonable safety and efficiency in using this product. The operator is responsible for following the warnings and instructions in this manual and on the product. Never use the product unless the guards provided by the manufacturer are in the correct position.
- For safety reasons, children under the age of 16 and people not familiar with these operating instructions must not use this 2-in-1 Trimmer and Lopper. Persons with reduced physical or mental abilities may use the telescopic hedge trimmer only if they are supervised or instructed by a responsible person.
General Power Tool Safety Warnings
WARNING ! I Read all safety warnings and all instructions. Failure to follow the warnings
- Save all warnings and instructions for future reference.
- The term upower tool” in the warnings refers to your mains operated (corded) power tool or battery operated {cordless) power tool.
Work area safety
a) Keep work area clean and well lit- Cluttered or dark areas invite accidents.b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust- Power tools create sparks which may ignite the dust or fumes.c) Keep children and bystanders away while operating a power tool- Distractions may cause an accident.
Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adaptor plugs with earthed (grounded) power tools- Unmodified plugs and matching outlets will reduce risk of electric shock.b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators- There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions- Water entering a power tool will increase the risk electric shock.d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts- Damaged or entangled cords increase the risk of electric shock.e) When operating a power tool outdoors, use an extension cord suitable for outdoor use- Use of a cord suitable for outdoor use reduces the risk of electric shock.f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply- Use of an RCD reduces the risk of electric shock.
Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication- A moment of inattention while operating power tools may result in serious personal injury.b) Use personal protective equipment. Always wear eye protection- Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool- Carrying power tools with your finger on the switch or energising power tools that have the switch on can cause an accident.d) Remove any adjusting key or wrench before turning the power tool on- A spanner or an alien key left attached to a rotating part of the power tools may result in personal injury.e) Do not overreach. Keep proper footing and balance at all times- This enables better control of the power tool in unexpected situations.f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts- Loose clothes, jewellery or long hair can be caught in moving parts.g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used- Use of dust collection can reduce dust-related hazards.
Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application- The correct power tool will do the job better and safer at the rate for which it was designed.b) Do not use the power tool if the switch does not turn it on and off- Any power tool that cannot be controlled with the switch is dangerous and must be repaired.c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools- Such preventive safety measures reduce the risk of starting the power tool accidentally.d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool- Power tools are dangerous in the hands of untrained users.e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use- Many accidents are caused by poorly maintained power tools.f) Keep cutting tools sharp and clean- Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed- Use of the power tool for operations different from those intended could result in a hazardous situation.
Service
- Have your power tool serviced by a qualified repair person using only identical replacement parts- This will ensure that the safety of the power tool is maintained.
2-in-1 Trimmer and Lopper safety warnings
- Keep all parts of the body away from the cutter blade. Do not remove cut material or hold material to be cut when blades are moving. Make sure the machine is unplugged from the power supply when clearing jammed material- A moment of inattention while operating either trimmer may result in serious personal injury.
- Carry the 2-in-1 Trimmer and Lopper by the handle with the cutter blade stopped. When transporting or storing the 2-in-1 Trimmer and Lopper always fit the cutting device cover- Proper handling of the pole hedge trimmer and branch lopper will reduce possible personal injury from the cutter blades.
- Hold the power tool by insulated gripping surfaces only, because the cutter blade may contact hidden wiring or its own cord- Cutter blades contacting a “live” wire may make exposed metal parts of the power tool “live” and could give the operator an electric shock.
- Keep cable away from the cutting area- During operation the cable may be hidden in shrubs and can be accidentally cut by the blade.
Additional Safety Recommendations
Work area safety
- Only use the product in the manner and for the functions described in these instructions. The operator or user is responsible for accidents or hazards occurring to other people or their property.
Electrical safety
- The British Standards Institute recommends the use of a Residual Current Device (R.C.D.) with a tripping current of not more than 30mA. Check your R.C.D. every time you use it. Before use, examine cable for damage. Have it replaced by a qualified electrician or Bergman Service Centre if there are signs of damage or ageing.
- Do not use the product if the electric cables are damaged or worn.
- Immediately disconnect from the mains electricity supply if the cable is cut, or the insulation is damaged. Do not touch the electric cable until the electrical supply has been disconnected.
- Your electric cable must be untangled. Tangled cables can overheat and reduce the efficiency of your product.
- Always switch off at the mains before disconnecting any plug, cable connector or extension cable.
- Switch off, remove plug from mains and examine electric supply cable for damage or ageing before winding cable for storage. Do not repair a damaged cable. Replace it with a new one.
- Always wind cable carefully, avoiding kinking.
- Use only on AC mains supply voltage shown on the product rating label.
- Under no circumstances should an earth be connected to any part of the product. This product is double insulated and does not require an earth.
Cables
- Use only permitted extension cables as per HD 516. — Ask your electrical specialist.
Personal safety
- Always wear suitable clothing, gloves, and shoes.
- Thoroughly inspect the area where the product is to be used and remove all wires and other foreign objects.
- All adjustments (turning the blade unit, inclining the blade head) should be made with protective sheath in place, and the Hedge Trimmer must not rest on the blade in the process.
- Before using the product and after any impact, check for signs of wear or damage and repair as necessary.
- Before using the 2-in-1 Trimmer and Lopper, always make sure that the hand guard provided is fitted.
- Never attempt to use an incomplete product or one with an unauthorised modification. Incomplete or modified products are potentially dangerous and will invalidate your guarantee.
Power tool use and care
• Know how to stop the product quickly in an emergency. • Never hold the product by the guard.• Do not use the product if the protection equipment (hand protection, 2-hand safety switch, protection cover, quick blade-stop) are damaged.• Do not use ladders whilst operating the product.
Remove the plug from the mains:
- Before leaving the product unattended for any period.
- Before clearing a blockage.
- Before checking, cleaning or working on the appliance.
- If you hit an object. Do not use your product until you are sure that the entire product is in a safe operating condition.
- If the product starts to vibrate abnormally, check immediately. Excessive vibration can cause injury.
- Before passing to another person.
Maintenance and storage
RISK OF INJURY!
- Do not touch blades.
- When finishing or interrupting work fit protective cover.
- Keep all nuts, bolts and screws secure to be sure the 2-in-1 Trimmer and Lopper is in a safe working condition.
- Store disconnected, in a safe dry environment out of the reach of children.
6. Assembly
Unpacking
- This product requires assembly.
- Carefully remove the product from the box.
- Inspect the product carefully to make sure no breakage or damage has occurred during shipping.
- Do not discard the packing material until you have carefully inspected and satisfactorily operated the product.
BEFORE ASSEMBLY
Firstly unpack and check all parts have been supplied. If you think any parts are missing, first check the packaging again before calling the Scotts and co helpline on 0344 482 1107.
WARNING:
- If any parts are damaged or missing, do not operate this product until the parts are replaced. Failure to follow this warning could result in serious personal injury.
WARNING:
- Do not attempt to modify this product or create accessories not recommended for use with this product. Any such alteration or modification is misuse and could result in a hazardous condition leading to possible serious personal injury.
AWARNING:
- Do not connect to power supply until assembly is complete. Failure to comply could result in accidental starting and possible serious personal injury.
Shoulder Strap Assembly
- Connect the end of the strap with the spring clip to the handle as per Figure 15 below:
7. Application Range
- The 2-in-1 Trimmer and Lopper is designed for cutting and trimming hedges, branches, bushes and shrubs around your house or allotment. Any other usage will invalidate your guarantee.
- The 2-in-1 Trimmer and Lopper is designed for use by adults. Adolescents over 16 years may use it only under supervision. DO NOT USE this machine in the rain or damp conditions.
- The operator or user is responsible for accidents or damage to other people or their property. The manufacturer is not liable for any damage caused due to incorrect operation.
8. Connection
This machine may only be connected to single-phase 230V AC 50Hz UK Mains outlet. Ensure that the mains voltage is the same as the operating voltage indicated on the rating plate.
9. Operation
WARNING:
- Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury.
WARNING:
Always wear CE approved safety goggles or safety glasses with side shields when operating power tools. Failure to do so could result in objects being thrown into your eyes, resulting in possible serious injury. Wear head protection when using the lopper.
WARNING:
Do not use any attachments or accessories not recommended by the manufacturer of this product. The use of attachments or accessories not recommended can result in serious personal injury.
Starting and Stopping
Connect the 2-in-1 Trimmer and Lopper plug to the power supply.To start the blade movement, push the Throttle Control Locking Button and then pull the trigger switch. To stop blade movement, release the trigger switch.
Adjusting the Pivoting Head
• Disconnect the plug from the power supply.• Place the hedge trimmer or branch lopper on a flat surface.• Depress both pivot buttons and adjust trimmer or lopper angle adjustment head until it snaps securely into place at one of their available positions indicated (see figure 12 below) .
CAUTION:
- Do not place hand between pivoting head and threaded base. Failure to heed this caution could result in a pinch point injury.
Cutting Tips
WARNING:
- Always keep both hands on the hedge trimmer/branch lopper handles. Never hold shrubs or branches with one hand and operate hedge trimmer /branch lopper with the other. Failure to follow this warning can result in serious injury or even death.
WARNING:
- Clear the area to be cut before each use. Remove all objects such as cords, lights, wire, or loose string which can become entangled in the cutting blade and create a risk of serious personal injury.
- When operating the hedge trimmer/branch lopper, keep the mains lead behind the trimmer/lopper. Never drape it over the hedge /branches being cut.
- Do not force the hedge trimmer/branch lopper through heavy shrubbery. This can cause the blades to bind and slow down. If the blades slow down, reduce the pace or diameter of the branches.
- If blades become jammed, stop the motor, allow the blades to stop, and disconnect the plug from the power source before attempting to remove the obstruction.
- If desired, you can use a string to help cut your hedge level. Decide how high you want the hedge. Stretch a piece of string along the hedge at the desired height. Trim the hedge just above the guide line of string. Trim the side of a hedge so that it will be slightly narrower at the top. More of the hedge will be exposed when shaped this way, and it will be more uniform. Take extra care not to cut or entangle the string in the cutting blades of the trimmer.
- Wear gloves when trimming/cutting branches, thorny or prickly growth hedges. When trimming new growth, use a wide sweeping action, so that the stems are fed directly into the cutting blade. Older growth will have thicker stems and will be trimmed easiest by using a sawing movement.
10. Maintenance and Servicing
- Before carrying out any checks or maintenance operations, disconnect the plug from the electric power supply.
- Check your 2-in-1 Trimmer and Lopper regularly before starting the work.
- Damaged cutting blades have to be repaired or exchanged by a qualified service man before working with the 2-in-1 Trimmer and Lopper.
- After each cutting operation, clean the cutting blade with a soft brush and cloth with lubricating fluid oil and spray a thin layer of fluid protective oil
- Always keep the ventilation slots in motor housing clean
- Never clean or spray the 2-in-1 Trimmer and Lopper with water. Clean the motor housing only with a moist cloth and never use detergents or solvents. These could ruin the plastic parts of the 2-in-1 Trimmer and Lopper. Finally, dry the motor housing carefully.
- Store the 2-in-1 Trimmer and Lopper with the supplied protection blade covers.
11. Guarantee:
This product is guaranteed against faulty workmanship for a period of 12 months from date of purchase. Your guarantee will be invalidated if the machine is modified in any way, used for purposes outside the parameters of this instruction manual or wilfully damaged or abused. Your statutory rights remain unaffected.
*DESIGN AND SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.
The crossed out Wheelie Bin logo is used to highlight electrical products that should not be disposed of with normal household waste. Scotts Ltd. Has contributed to the funding of an alternative network of UK recycling facilities. Please visit www.recycle-more.co.uk to find where your nearest recycling point is and recycle this product at the end of its life.1W PRONCI HAM
EC — Declaration of Conformity
CE
We, ESKDE LIMITED hereby declare that the machine described below corn plies and health requirement of the EU directives, both it it’s basic design and construction as well as in the version put into circulation by us.
Product: Electric Long Reach Combi Chain Saw Hedge Trimmer Kit Type: LPHTCS1/M1L-4ET-250+ M1E-8ET-460
Relevant EU directives
The machinery directive: 2006/42/EC
The EMC directive:2014/30/EU (EMC)
Relevant Standards:
EN 60745-1:2009+A11:10EN 60745-2-15:2009+A1:10EN ISO 10517:2009+A1:13EN ISO 11680-1:2011EN 55014-1:2006/+A1:2009/+A2:2011EN 55014-2:1997/+A1:2001/+A2:2008EN 61000-3-3:2013EN 61000-3-2:2014
Mr Simon DoddManaging DirectoreSkde Limited04/2017
