ewt OPTIFLAME Jazz Optiflame Electric Stove Instruction Manual

Instruction Manual

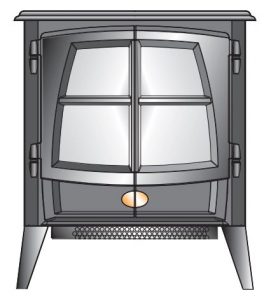

ewt OPTIFLAME Jazz Optiflame Electric Stove



Setup

1.

2.

3.

4.

5.

IMPORTANT: THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE



Important Safety Advice:

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

  • If the appliance is damaged, check with the supplier before installation and operation.
  • Do not use outdoors.
  • Do not use in the immediate surroundings of a bath, shower or swimming pool.
  • Do not locate the heater immediately below a fixed socket outlet or connection box.
  • This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Do not use this heater in series with a thermal control, a program controller, a timer or any other device that switches on the heat automatically, since a fire risk exists when the heater is accidentally covered or displaced.
  • Ensure that furniture, curtains or other combustible material are positioned no closer than 1 metre from the heater.
  • In the event of a fault unplug the heater.
  • Unplug the heater when not required for long periods.
  • Although this heater complies with safety standards, we do not recommend its use on deep pile carpets or on long hair type of rugs.
  • The appliance must be positioned so that the plug is accessible.
  • If the supply cord is damaged it must be replaced by the manufacturer or service agent or a similarly qualified person in order to avoid a hazard.
  • Keep the supply cord away from the front of the heater.

WARNING: In order to avoid overheating, do not cover the heater. Do not place material or garments on the heater, or obstruct the air circulation around the heater. The heater carries the Warning symbol indicating that it must not be covered.

GeneralUnpack the heater carefully and retain the packaging for possible future use, in the event of moving or returning the fire to your supplier.The fire incorporates a flame effect, which can be used with or without heating, so that the comforting effect may be enjoyed at any time of the year. Using the flame effect on its own only requires little electricity.These models are designed to be free standing and are normally positioned against a wall.Before connecting the heater check that the supply voltage is the same as that stated on the heater.Please note: Used in an environment where background noise is very low, it may be possible to hear a sound which is related to the operation of the flame effect.This is normal and should not be a cause for concern.

Electrical connectionWARNING – THIS APPLIANCE MUST BE EARTHEDThis heater must be used on an AC ~ supply only and the voltage marked on the heater must correspond to the supply voltage.Before switching on, please read the safety warnings and operating instructions.

Controls – see Fig. 2Three switches provide a choice of heat settings. A switch is in the ON position when the side with the markings on (i.e. I, I, or II) is pushed in.

  • Switch 1 (I) Controls the electricity supply to the heater and flame effect.Note: This switch must be in the ON (I) position for heater to operate with or without heat.
  • Switch 2 (I) Provides 1kW heat output
  • Switch 3 (II) Provides 2kW output with switch 2

Thermal Safety Cut-outA thermal safety cut-out is incorporated in the heater to prevent damage due to overheating. This can happen if the heat outlet was restricted in any way. The heater will switch on once the obstruction has been removed and the heater has cooled. If the cut-out continues to operate intermittently, the heater should be switched off and a service agent contacted.



Maintenance

WARNING: ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE ATTEMPTING ANY MAINTENANCE.

Lamp Replacement – see Fig. 3, Fig. 4 and Fig. 5To gain access to the lamps remove the fuel effect from the fire by removing the fixing screws from the fuel bed (Fig. 3) and sliding out the fuel effect (Fig. 4). Remove the defective lamp by unscrewing it as shown in Fig. 5.

Replace with a 25W E14 SES Clear Candle lamp. Take care not to over-tighten the lamp.

Refit fuel effect and secure it with the screws.



Cleaning

WARNING – ALWAYS DISCONNECT FROM THE POWER SUPPLY BEFORE CLEANING THE HEATER.

For general cleaning use a soft clean duster – never use abrasive cleaners. The glass viewing screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.

To remove any accumulation of dust or fluff the soft brush attachment of a vacuum cleaner should occasionally be used to clean the outlet grille of the fan heater.

RecyclingFor electrical products sold within the European Community. At the end of the electrical products useful life it should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice in your country.



After Sales Service

Should you require after sales service or should you need to purchase any spares, please contact the retailer from whom the appliance was purchased or contact the service number relevant to your country on the warranty card. Please do not return a faulty product to us in the first instance as this may result in loss or damage and delay in providing you with a satisfactory service. Please retain your receipt as proof of purchase.



Warranty

The warranty conditions in the country of purchase apply to this appliance. Information can be obtained at any time from the retailer from whom the appliance was purchased. For claims under guarantee the sales receipt must be produced and the claims must be forwarded within the guarantee period. The right to claim under guarantee expires in case that the device has been damaged, used in an inappropriate way or that unauthorized manipulations have been carried out.



Glen Dimplex UK LimitedMillbrook HouseGrange DriveHedge EndSouthamptonHampshire. SO30 2DFPhone: 0845 600 5111Fax. 01489 773053



  1. Warranty Card
  2. Guarantee Period (in Years)
  3. Model(s)
  4. Date of Purchase
  5. Stamp & Signature of retailer
  6. Fault/Defect
  7. Contact Number & Address
