EzFold Scooter Lightweight 46 Ibs. Foldable Scooter Instruction Manual

EzFold Scooter Lightweight 46 Ibs. Foldable Scooter

Thank you for purchasing the EzFold Scooter！

Proper use of this product is the prerequisite to ensure safety, convenience and durabilityPlease read this instruction carefully before using, and be sure to master the matters marked with the mark ★

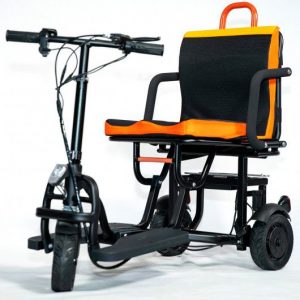

Product drawing

  1. Key switch
  2. Shifter
  3. Electric quantity display
  4. Forward and reverse switch
  5. Handlebar
  6. Brake
  7. Horn switch
  8. Quick release
  9. Headlamp
  10. Front Fender
  11. Front wheel
  12. Pedal plate
  13. Brake apparatus
  14. Motor
  15. Reflector
  16. Rear Fender
  17. Battery
  18. Battery box
  19. Charge port
  20. Armrest
  21. Backrest
  22. Cushion

Install

① Open the quick release② Can be adjusted up and down③ Install the headlamp (follow the arrow)④ Install the nasonry (follow the arrow)⑤ Install the wheel (follow the arrow)

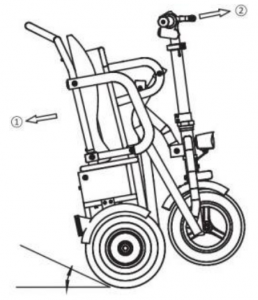

Opening the EzFold Scooter

① Tilt the body② Forward the handlebar (direction as the picture)③ Press down the cushion (as the picture)

Finish the opening

Folding the EzFold Scooter

① Lift the cushion up (direction as the picture)② Tilt the body③ Pull back the handlebar

Finish the folding

Accessories description

Waterproof plug wire

Most plugs on the EzFold Scooter are waterproof and are easy to replace,

Electric control switch

Electric switch headlights, horns, forward and back switch buttons are designed to be anti-slip, ergonomics for and easy operation

(top) Red button: pressing the red button will put the EzFold scooter in reverse modeGreen button: headlamp on/off switch

Brake handle

Aluminum alloy, anti-rust break handle. Always use break when stopping your scooter

Electronic accelerator handle

The ergonomic non-slip accelerator handle: by turning the handle down the EzFold Scooter will accelerate and be letting go the EzFold will come to a stop. Note: Always use the break handle in addition to letting to of the accelerator when coming to a stop.

3 key Modes

  1. Off
  2. On
  3. on with headlamp

Specifications

Model

Specifications

 DW-FDB03

DW-FDB02

 DW-FDB01


Open size

 34″ x 20″x 39″

34″ x 20″x 39″



Fold size

 34″ x 20″ x 18″ 34″ x 20″ x 18″
Total Weight 46 lbs.

46 lbs.



Frame

 Aluminum alloy Aluminum alloy
Front wheel 8 inch solid tire

8 inch solid tire



Rear wheel

 8 inch solid tire 8 inch solid tire
Suspension Front wheel shock absorption

Front wheel shock absorption



Brake

 Electromagnetic + hand break brake Electronic brake + hand brake
Maximum load weight 250 lbs.

250 lbs.



Motor

 24V 300W(Rear axle motor) 24V 300W
Lithium Battery 24V 8AH(detachable battery box)

24V 8AH(detachable battery box)



Forward speed

 10 m.p.h 10 m.p.h.
Reverse speed 3.5 m.p.h

3.5 m.p.h



Mileage /Driving distance

 18 Miles 18 Miles
Climbing angles 12°

≤12°



Product standard configuration

Portable electric folding scooter

 Installation tool Charger Instructions
1 unit 1unit 1unit

1unit

The above data are for reference only. The technical data of this product series are subject to change without prior notice In actual use, due to different road conditions, climate and driving speed, data such as charging time and driving range are different

Inspection and maintenance before driving

In order to ensure that you get maximum use and safety for your EzFold Scooter, please check and maintain the product according to the following requirements before using.

  1. Check whether the battery is full of electricity to ensure that all cables are properly connected.
  2. Check whether the brake system is sensitive and effective.
  3. Check whether the tire pressure is normal
  4. Before driving, please correct the front wheel and tighten the handle fastening handle.
  5. The handlebar and the moving clearance of each part, should be inspect fastening and lubricate irregularly

Battery Instruction

  • ★ Improper use will shorten the service life of the battery, and may lead to the fever of the battery, Fire, or even explosions. Please read the following notes carefully:
  • ★ Do not separate and disconnect the battery. There are protective circuit function parts inside the battery pack. Dis-assembly will damage these parts;
  • ★ It is strictly prohibited to short circuit the positive and negative terminals of the battery, Once a short circuit is found ,it will cause the battery heat, fire and other dangers;
  • ★ Do not burn or heat the battery. Heating or burning the battery will melt the insulation, thus causing the battery fire, explosion and other dangers;
  • ★ Do not immerse the battery in water or in a humidity environment, The water in the battery pack is easy to cause the short circuit of the protective circuit board in the battery pack, Thus causing short circuit heating and other dangers;
  • ★ You must charge the battery with a charger that matches the battery, Otherwise, abnormal chemical reactions will occur in the battery, causing the battery to heat up, burn and other dangers;
  • ★ It is strictly prohibited to use a hammer or other hard objects to hit the battery, cutting the battery with sharp tools, When the battery is damaged, it may cause short circuit, thus causing fire and other dangers;
  • ★ If the battery is damaged or leaked, and the leakage material enters the eyes carelessly, please don’t rub it with your hands, wash it with clean water immediately, and go to the doctor as soon as possible;
  • ★ Do not mix lithium ion batteries made by different manufacturers or with different capacity. If so, it may cause heat, fire and other dangers in the process of charging and discharging;
  • ★ The battery needs to be fully charged in time (within 3 days) after use, If the battery pack is not used for a long time, it must be fully charged every two months, otherwise the battery will be damaged easily;
  • ★ Do not exceed the battery charging time (generally within 10 hours), for fear that the danger of overheating. If the battery charging exceeds the specified time and is not fully charged, please stop charging;
  • ★ Don’t put the battery where a child can touch so as to avoid danger;
  • ★ Do not store the battery in microwave or high pressure environment so as to avoid danger.

Attentions for safe driving

In order to ensure that you can use this EzFold Scooter properly and safely, please be sure to follow the following requirements for proper operation:

  • ★ Before driving for the first time, be sure to test drive you Ezfold in the open field. Only then drive it on a pedestrian sidewalk , after mastering acceleration, deceleration, braking, perfectly
  • ★ Follow traffic rules and maintain moderate speed; Driving at top speed will not only dramatically increase power consumption and reduce range, but also reduce safety
  • ★ When driving in a crowded indoor environment, such as a supermarket, you must keep a low speed to control the braking distance. When turning, the speed must not exceed 1.2 mph
  • ★ It should not be used in rainy days, and wading should be avoided as far as possible. When wading through, the wading depth should not exceed 1″ and the speed should not exceed 1 m.p.h.
  • ★ With the power switch key, in the non-driving state, the power switch must be closed and the key pulled out, to prevent children and others from wrong operation

Eliminate of frequent malfunction

Malfunction

 Reason

solution
Adjuster shifter out of order or Significant reduction of maximum speed
  1. battery cable is loose
  2. Shortage power
  3. Spring failure of Adjuster shifter
  1. Tighten the battery cable
  2. full recharge the battery
  3. change the spring or shifter
Charger cannot be charged normally
  1. Power line damaged or socket off
  2. Charger fuse fusing 3.The battery terminal is disconnected
  1. Repair the power cord or tighten the socket
  2. Replace fuse of the same model
  3. Plug in all the connections

Charging is normal, but driving mileage is not enough
  1. Tire pressure is insufficient or brake disc adjustment is too tight
  2. Long time driving at high speed or travel uphill, adverse wind, brake start too frequently
  3. Battery aging or damage
  1. Properly inflate tires; Adjust the tightness of brake cable properly
  2. Avoid long and high speed driving and frequent braking; It is normal for power consumption to increase in uphill and upwind conditions
  3. Replace or repair batteries
drive motor doesn’t work properly
  1. Loose or detached connection of battery, motor, controller and other cables
  2. Can not maintain the average speed of driving, control shifter is damage caused by pollution
  1. Check the battery, motor, controller and other cables, and reconnect firmly
  2. Keep the control shifter clean to avoid stained.
  • ★ Batteries, chargers, motors, controllers and control shifter should be repaired by professional technicians or after-sales maintenance units
  • ★ The above data are for reference only. The technical data of this product series are subject to change without prior notice
  • ★ In actual use, due to different road conditions, climate, driving speed, charging time, mileage and other data are different

Safety reminder

  • ★ When the scooter starts, please slow down the throttle to prevent the front wheel from skidding
  • ★ When the scooter climbing the slope , please lean forward to Keep the center of gravity steady and prevent scooter from turning over after climbing the slope
  • ★ When the scooter is turning, please slow down and avoid turning over
  • ★ In the normal using of the scooter, please check whether the screw loose or off periodically
  • ★ Please drive as little as possible when the road is slippery in rainy days

Specification is based solely on actual products; Subject to change without prior notice.
