FANTA E-Spark Blue Instructions
Speed:400-500 rpm400 in difficult cases500 in simple casesTorque:2.5 N
Instructions for use
Step by step
Cleaning, Disinfection and Sterilization
The product is provided in a non-sterile state; it is single use device. It is required to be processed before each use by following Step-by-Step instructions, with steam sterilization at 126 for 30 minutes. Step-by-Step instructions
- Steam sterilization at 126 for 30 minutes;
- Rinsethe device with Normal saline (0.9% NaCl) for 10 seconds;
- Dry the device with a dental air gun;There instruments are meant to be used in a clinical/hospital environmentby qualified personnelaccording to the correct operative procedures (gloves, face mask, rubber dam). FANTA -SPARK BLUE are indicated for the endodontic retreatment, shaping and cleaning of the root canal system.
Contraindications
- No marked apical curvatures
- No canal blocks
- Do non use in patients allergic to Nickel
Recommendations
Frequently clean the spires Frequently check for distorions or wear of the file Irrigate frequently and abundantly Follow the advised settings RPM – Torque Start the procedure after scouting Work with plenty of irrigant into the root canal Apply a soft pressure to the instrument and use movements of picking or brushing.
Picking
Make the instrument advance of 1-3 mm with gentle movements in and out the root canal.
Brushing
Activate the instrument and insert it into the root canal without touching the walls. Allow the instrument touching the canal walls, then make small movements in coronal direction, without taking the instrument out of the root canal. Allow the instrument to move apically for 1-3mm, then repeat, advancing towards the apex with up and down movements.
Benefits
- Safety
- cutting efficiency
- Debris removal Usability
Take 1 or more periapical X-Rays to assess length, width and curvature of the root canal(s).
Determine the complexity of the case
EASY:Straight and wide canalsDIFFICULT:Canals with single or double curvatures. thin or calcified canals
Access Cavity
Design an access to the root canal openings as a function of the anatomy of the tooth, with particular care to the smoothing of the internal axial walls and to enlarge the root canal openings.Scout coronal 2/3 of canals with manual or mechanical instruments (add AF blue open file in difficult cases) Scout and enlarge the apical 1/3 of the canal

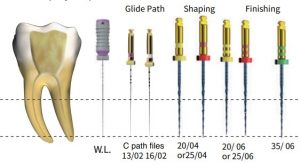

EASY AAfter taking the manual file to to the WL, make the glide path
C PathFiles 13/02, 16/02 with brushing or picking motion. Rinse thoroughly after every passage of the instruments and verify the patency with .10 manual file.
ShapeThe canal(S) with E-SPARK BLUE file 20/.04 or 25/.04 with brushing or picking motion (500 RPM, 2.5 Torque).Rinse abundantly after every instrument passage and verify the patency of the canal.Finish the shaping with 20/.06 or 25/.06 instruments used as reviously described. If the root can al anatomy allows it,shape it up to 35/.06.
DIFFICULT BIf the scouting shows a di cult anatomy, Start preflaring the coronal 2/3 using Af blur open file , then proceed apically with C Path files 13/02, 16/02, 19/02 with brushing or picking motion.Rinse thoroughly after every passage of the instruments and repeat until reaching the WL with a.10 manual file
Shape the canal(S) with AFE-SPARK BLUR file 20/.04 with brushing or picking motion (400RPM, 2.5 Torque).Rinse abundantly after every instrument passage and verify the patency of the canal.Finish the shaping with 25/.04 or 20/.06 instruments used as previously described.
Gaugethe foramen with a maual file of same size of the last instrument that reached the WL.If necessary,use large files for an increased apial enlargement Check again the apical size of the preparation.
Dry the root canal system with dedicated cannulas and paper points.Fill the root canal system in the most suitable way to ensure a three-dimensional obturation, according to the root canal anatomy:
- Single cone + bioceramic sealer
- Warm vertical condensation of gutta percha –
- Carrier-based techniques
