FARSEEING LED Studio light User Manual

FARSEEING LED Studio light

Technical Parameter

Model

FD-LED572T

FD-LED572D

Power(W)

115

Voltage

AC :90-250V/ DC:12V 10A

Color Temperature(K)

5600±300

Color rendering index

95

Beam Angle

120°

Brightness Control

Dimmable

DMX512

Illumination ( Lux)

1M

3908

2M

976

3M

427

Description

  • With the light characteristics of soft, even, comfortable, non- infrared and ultraviolet rays, non-flickering, non-glaring, non-dazzling, and it is with the feature of heat dissipation, environmental protection and energy saving, much longer life of 50,000 hours and low running costs, 50% energy saved compared to traditional tri-color light.
  • Adopts PC alloy material. which owns light. portable feature. and inside equipped with professional LED constant current driver. can use camera battery supply power.
  • Beam angle 120°,high CRI 95,suitable for studio project.
  • LED beads adopt imported chip with high CRI and good color reproduction.
  • The light supports electrode-less dimming and DMX512 dimming control. Light edge configures spell interfaces, and several lights can be spliced together and use.

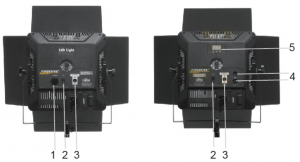

Product Introduction

  1. Dimming knob
  2. Switch
  3. Power interface
  4. DMX512 signal access line
  5. Digital tube display screen

Standard fittings

NO.

Description

Qty

1

LED Studio Light

1

2

Power Wire

1

3

Adapter

1

4

Fuse

2

5

Manual

1

6

White Soft Lens

1



Add: #68 Hengtong Avenue, Xingang ETDZ, Nanjing, ChinaTel: +86 – 25-86642611 I 25-84410776Fax:+ 86 – 25-84527011E-mail: [email protected]http://www.farseeingvideo.com
