Fat Shark RECON V3 FPV Drone Racing Goggles User Manual

Recon V3MODEL FSV1132-03USER MANUAL

Revision A 05/24/2019For more product information, please visit:www.fatshark.comAll Rights Reserved

Headset Operation

• Battery Charging: The battery in the headset is a standard 18650 2600mAh Li-ion cell, and can be charged with built-in charger by connecting a micro USB power supply to the headset.
• Brightness and Contrast: Slide the 5-way button left and right or forward and back for contrast and brightness adjustment.
• Channel Selection: Short press channel Up(CH+)/ Down(CH-) button to incrementally increase/decrease the channels. Long press and release the Up(CH+) button to change band; long press and release the Up(CH-) button to do auto scan active channel.
• DVR Recording: Vertically depress the 5-way button and listen for the short beep to start and stop recording video from the live feed. Long-press the 5-way button to enter the DVR menu and browse/play content. This DVR has no auto save recording file function, need to manually stop recording to save file.

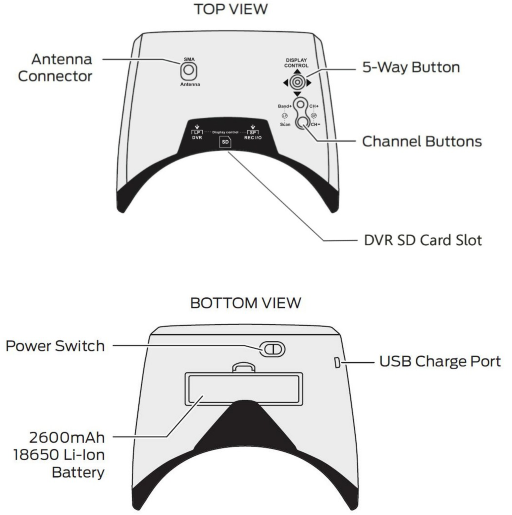

• Control Diagram:
