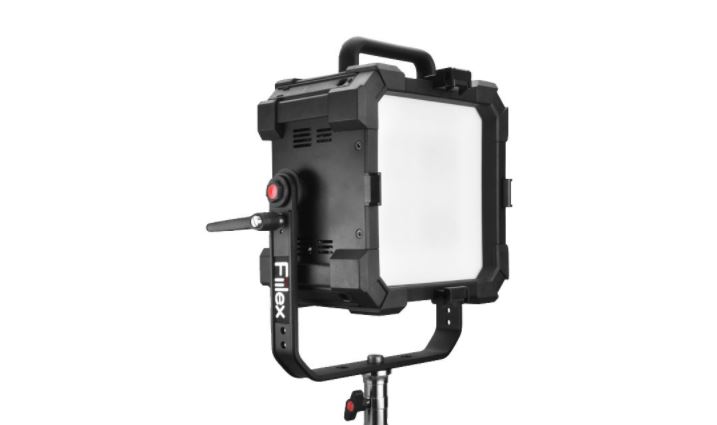

Fiilex Matrix II Tunable White User Guide

Fiilex Matrix II Tunable White
User Guide

What’s In The Box

Parts Diagram

Basic Operation

• Turning the Light OnInsert the XLR 3-Pin connector into the Power Input (19). Plug the AC connector into a wall socket. Turn the On/ Off Switch (12) to the “On” position.
• Mounting the Matrix II Tunable WhiteThe Matrix II Tunable White can be mounted to baby and/or junior stands with the combo pin. Secure the light by tightening the Locking Knob (6).
• Positioning the Matrix II Tunable WhiteLoosen the Yoke Knob (8) to adjust the Matrix II Tunable White to the desired position. Tighten the Yoke Knob (8) to secure.
• OMX InterfaceThe Matrix II connects to DMX signals via 5-pin XLR ports. The interface includes in/out ports for daisy-chaining the DMX line.
• USB InterfaceThe Matrix II is equipped with a mini USB Port (17) for updating the firmware. The port also provides 5V1 A power for wireless DMX antennas. Please register your product at www.fiilex.com to be informed when firmware updates are available.

Rear Panel Interface Operation

Assigning OMX Address:

1. Double click the OMX Address Knob (10) to unlock OMX address setting on the OLEO Display (9).
2. Rotate the knob to select desired address.
3. Lock in setting by clicking knob once. Alternatively, the address will automatically lock in after 5 seconds of inactivity.
4. The Matrix II Tunable White requires three OMX channels for operation, which are assigned in sequence. For example, at OMX address 50, the controls for intensity, CCT, and hue will correspond to OMX channels 50, 51, and 52 respectively.

Additional Setup

Mounting Power Adapter to Super Clamp

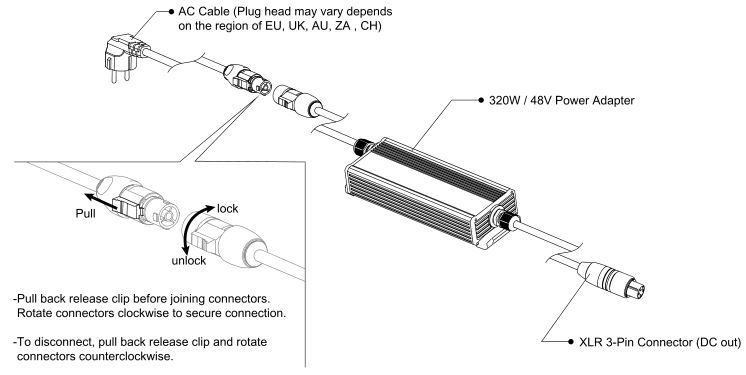

Connect AC Power Adapter to AC Cable (For regions outside of the u.s)

Available Accessories

Matrix BarndoorThe Matrix Barndoor has a frame with four interior indents. Hang one indent on the Matrix Top Latch (3). Push the bottom of the barndoor frame into the Bottom Latch (4) until the latch clicks.

Matrix Fresnel LensPlace the rubber indent on the bottom of the Fresnel lens onto the Bottom Latch (4). Push the top of the Fresnel towards the Matrix light head until the Top Latch (3) clicks.

Matrix Speed RingCompatible with non-Fiilex softboxes.

Matrix Softbox and GridNo speed ring required.

See website for additional accessories. www.fiilex.com

Specifications

Error Codes

For Your Safety

• CAUTION! High Beam Intensity! – Do NOT look into the light source of the fixture.
• Do NOT point the light at combustible or flammable materials.
• Do NOT attempt to disassemble the body of Matrix II Tunable White. Doing so will void the warranty.
• Do NOT install Matrix II Tunable White in a damp or wet area.
• Do NOT cover/block the side and back air vents.
• Use only the included power supply. Failure to do so may cause damage to the light.
• Use only a soft, dry towel to gently clean the exterior of the light.
• Do NOT lift or suspend the light by the power cable.
• Do NOT use the Matrix II Tunable White or accessories if they display any physical damage.
• Before first use, make sure to remove all protective membranes.

1 Year Limited Warranty

Unless otherwise stated, your product is covered by a one year parts and labor limitedwarranty. Fiilex guarantees, to the original buyer, that this product is to be free of defectsin both workmanship and material for a period of one year from the date of shipment. Thiswarranty extends to all products which have proved defective through normal use butexcludes products that have been disassembled, modified or misused by the buyer or anyother person. This warranty is in lieu of all other warranties, and disclaims all warrantiesexpressed or implied, including any warranty of merchantability, fitness for a particularpurpose, or arising from the course of dealing between the parties or usage of trade.

Returning an Item Under Warranty for RepairIt is necessary to obtain a Return Authorization Number (RA#) from your dealer/ point of purchase BEFORE any units are returned for repair. Fiilex will make the final determination as to whether or not the unit is covered by warranty. Fiilex will replace or repair to proper working condition any products that are returned under warranty. Products repaired or replaced under warranty are under warranty only for the remaining unexpired period of time of the original warranty.

Any Product unit or part returned to Fiilex must be packaged in a suitable manner to ensure the protection of such Product unit or parts. The package must be clearly and prominently marked to indicate that the package contains returned product units or parts with a Return Authorization (RA#) number. All returned product units or parts must be accompanied by a written explanation of the alleged problem or malfunction.

Matrix II Tunable White

DiCon Lighting, Inc.1689 Regatta Blvd., Richmond, CA 94804(510)-620-5155[email protected]www.fiilex.com

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Information and Specifications in this document are subject to change without notice. DiCon Lighting, Inc. assumes no responsibility or liability for any error or inaccuracies that may appear in this manual. Unlawful reproduction or distribution in any manner without the written permission of DiCon Lighting, is strictly prohibited.

© DiCon Lighting 1996-2016. All rights reserved.
