Folding Bluetooth Keyboard User Manual

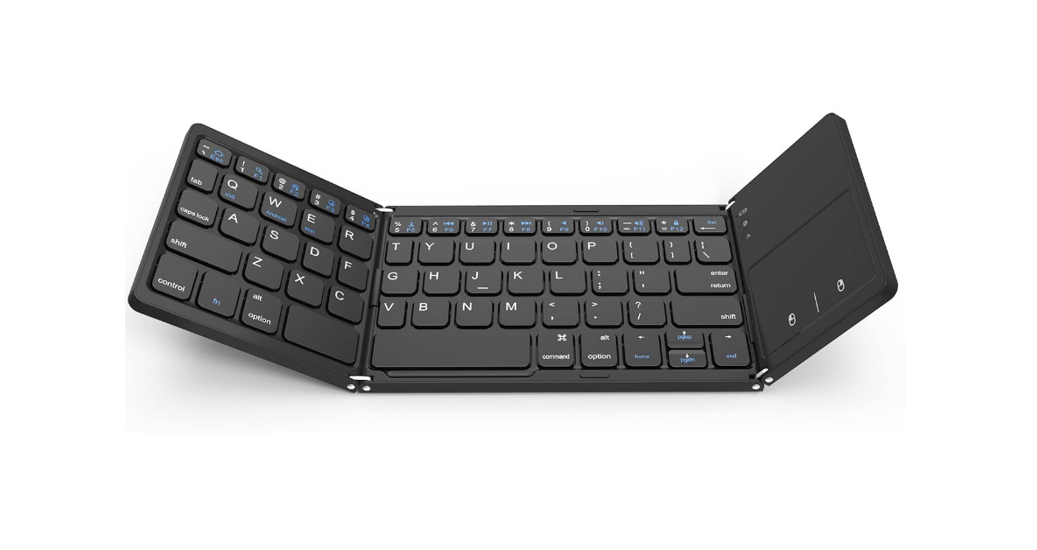

Folding Bluetooth keyboard

User’s Manual

Notice: Please read use manual careful carefully before you start using this product.

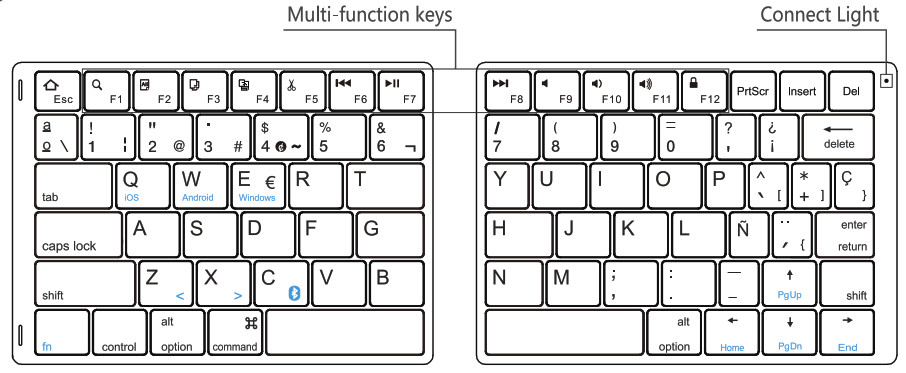

FrontBack

Support systemWin/iOS/AndroidBluetooth pairing connection

1. Please open power switch on the side of keyboard, press the short cut key FN+C to pair,then the blue indication light flash into be searched and paired state

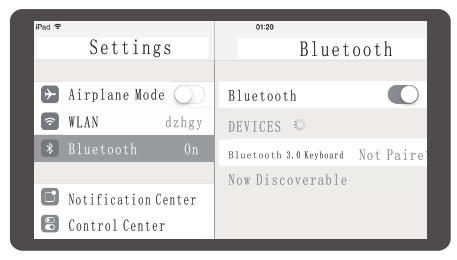

2. Open the tablet PC setting “Bluetooth” into searching and pairing state.
3. You will find the. “Bluetooth 3.0 Keyboard” and click to next step.

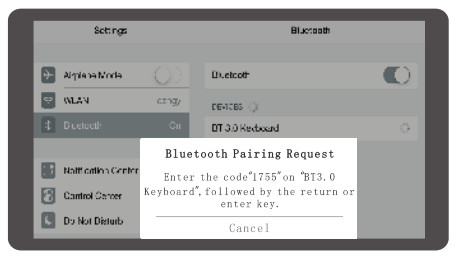

4. According the table PC tips to input, the correct password then click “Enter” button.
5. There have a tip for connecting successfully, you can use your keyboard comfortably.

Remarks: After connecting successfully the next time you don’t need match code, just open the Bluetooth keyboard power switch and the tablet PC “Bluetooth.” The BT keyboard wills search the device and automatically connects.

Product features (Fn+)

Three share Fn+key combination system
FN+combination	Combination key function	Function key
	Bluetooth pairing state	C
Home	Home
End	End
PgUp	PgUp
PgDn	PgDn

 Technical Specifications

Troubleshooting

Please contact the after-sales service.CopyrightIt is forbidden to reproduce any part of this quick start guide without the permission of seller.Safety instructionsDo not open or repair this device, Do not use the device in a damp environment. Clean the device with a dry cloth.

WarrantyThe device is provided with a one-year limited hardware warranty from the purchase day.

Keyboard Maintenance

1. Please keep the keyboard away from liquid or humid environment, saunas, swimming pool, steam room and don’t let the keyboard get wet in the rain.
2. Please don’t expose the keyboard at too high or too low-temperature conditions.
3. Please don’t put the keyboard under sun for a long time.
4. Please don’t put keyboard close to the flame, such as cooking stoves, candles or fireplace.
5. Avoid sharp objects scratching products, timely to recharge or replace the dry cell products to ensure the normal use.

FAQ

1. The tablet PC can’t connect the BT keyboard ?1 ) At first check the BT keyboard is into match code state, then open the table PC Bluetooth searching.2 ) Checking the BT keyboard Battery is enough, the battery low is also lead to can’t connect, you need charge.
2. The keyboard indication light always flashing when use?Keyboard indication always flashing when use, is means the battery will be no power, please charge the power as soon as quickly.
3. The table PC display BT keyboard is disconnect?The BT keyboard will into dormant to save the battery after some time later no use; press any key the BT keyboard will be awaken and working.

Warranty Card

User informationCompany or personage full name ___________________________________________________________Contact address ________________________________________________________________________TEL _________________________________ Zip ____________________________________________The purchased product name and model NO._____________________________________________________________________________________Purchased date _________________________________________________________________________

This reason due to the product broken and damage is not include on the warranty.(1) Accident, misuse, improper operation, or any unauthorized repair, modified or removed(2) Improper operation or maintenance, when operation violation of the instructions or connection unsuitability power supply.
