FUJITSU Component Thermal Printer
Overview
The supply voltage of the FTP-638WSL Series is 120/240VAC (via AC adaptor) or battery. The unit uses 3 inch wide paper.The semi-rugged printer unit is most suitable for applications such as handheld, mobile and portable devices, as well as for various other equipment.
Features
- Light weight and ultra small size
- Easy paper loading
- Bluetooth¬, IrDA interfaces
- 7.4 Lithion battery, 120 or 240VAC adaptor
- Drop-resistant – 1.5 meters
- Water resistant
- Prints 2D barcodes and stacked barcodes
- 3 hour charge cycle
- RoHS compliant
- IP54 compliant
- Windows¬Vista/7/8/8.1/10 printer drivers
- Apple¬ iOS/Android™ SDK (printer library) support
- Apple¬ iOS7 drivers support iPhone 6 Plus
Specifications
Item: Specifications
Part number: FTP-638WSL110 seriesDot structure: 576 dots/linesDot pitch (horizontal): 0.125mmDot pitch (vertical): 0.125mmEffective printing area: 72 mmPaper width/diameter: 80mm / ID 8mm, OD 50mm maximumPaper thickness: 60-80µm*1Maximum printing speed: Battery 80mm/sec. at 8.4V, AC adaptor, 80mm/sec. at 12V (640 dotlines/s) at 12% print ratioCharacter types:Alphanumeric KANA: 159International characters: 195Thai code 18: 128Download: 224External: 94 JIS KANJI: approx. 6800Character dimensions (W x H), number of characters:12 x 24 dots (1.5 x 3.0mm), 48 columns24 x 24 dots (3.0 x 3.0mm), 28 columns8 x 16 dots (1.0 x 2.0mm), 72 columns16 x 16 dots (2.0 x 2.0mm), 36 columnsPower:Battery (Lithium Ion): 7.4VDC lithium, 2,090mAhAC adaptor: 12V – 3.75A 100VAC to 240VAC adaptor#10 (AC cable included)Power consumption: 1.6 – 1.7A printing (print ration 12.5%) standby 30-60mA communication 90-170mADimensions: 106 x 116 x 58mm (WxDxH)Case color: WhiteWeight:Printer with battery: Approximately 340gBattery & paper included: Approximately 380gExpected life:Head Pulse durability: 100 million pulse/dot (12.5% print ratio)Wear resistance: 50kmBattery: One charge: 200m, 300 charge cyclesPaper holder: 5,000 times open/close
Interface specification at host side
Item: Specifications
Bluetooth V2.1 +EDR :Profile: SPPModulation: GFSK, π / 4-DQPSK, 8DPSK (EDR)Data speed: 1306.9kbps max.Maximum distance :10mIrDA (Ver. 1.2):Data speed: 115,200 / 38,400 / 19, 200 / 9,600bps
Part numbers
Item:PartNumber: Adaptor: IncludedBluetooth, IrDA interfaces: FTP-638WSL110#10: 120/240 VAC: With AC cable
Power supply
Battery
Item: SpecificationsType: Lithium Ion, 2 cellManufacturer: Fujitsu LimitedModel: KD54004-L301Rated voltage: 7.4V, 2,090mAhLife: 300 cycles, 35 hoursWeight: 110g
AC adaptor
Item: SpecificationsType: Switching regulatorManufacturer: SANKEN ELECTRIC CO. LTD.Model: KD02902-5420Rated voltage: 12VWeight: 230g
Bar code type:Standard :UPC-A, UPC-E, JAN13, JAN8, CODE39, ITF, CODABAR, CODE 128, GS1 DataBar-14, GS1 DataBar Limited, GS1 DataBar -14 Truncated2-D: MAXI, PDF417, QR. GSI DataBar-14 Stacked, Omnidirectional, GS1 DataBar expandedSafety standard:Noise: FCC, IC, CE markingEnvironmental conditions:Operating temperature: 00C to +500C*4Operating humidity: 30 to 85% RH (no condensation)Storage temperature: -200C to +600CStorage humidity: 5 to 90% RH (no condensation)Detection functions:Head temperature: Detected by thermistorHead detect: Detected by photo-interruptorPaper out: Detected by photo-interruptorCover open: Detected by micro-switchMajor functions:Page modeRegistration of character and imageEnlarge charactersAuto status replyRecommended thermal sensitive paper:High sensitive paper: FT50KS-E45 (Nippon paper)Standard paper: TF-60KS-E (Nippon paper) PD150R (Oji paper)Medium term paper: TF-60KS-F1 (Nippon paper) PD170R (Oji paper) P220VBB-1 (Mitsubishi paper)Long term paper: HA220AA (Mitsubishi paper)Label paper: HW54S (Nippon paper)

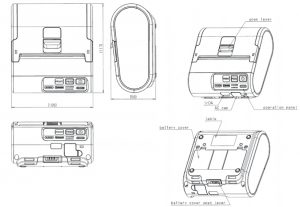

Dimensions
Printer mechanism: 3-inch
Note:
- Dimensions are nominal value )tolerance ±5mm unless otherwise specified.
- Dimensions in ( ) is reference value.
Commands
Command: ContentHT: Horizontal tabLF: Line feed with printingFF: Feeds forms (new page)ECS RS: Sets reverse printingESC US: Resets reverse printingESC FF: Data printing in page print modeESC SP + n: Character space settingESC ! +n: Sets print modeESC $ + n1+n2: Horizontal absolute position settingESC % + n: External registration character specification / cancellationESC &+y+c1+c2+x+d1 to dn: External registration character definitionESC*+m+n1+n2+[d1 to dn]: Bit image mode registrationESC -+n: Underline settingESC 3+n: Sets the line feed lengthESC ?+n: External registration character deletionESC @: Printer initializationESC A+n: Set the space between linesESC C+n: Sets the page length by character lineESC D+n1 to nk + null: Set the tab positionESC E+n: Printing specification / cancellationESC J+n: Feeds paper in forward direction and printsESC K+n: Reverse paper feedESC L: Page print mode selectionESC Q+n+!+j: Frame overlay detectionESC R+n: Selects international characterESC S: Line print mode selectionESC T+n: Print direction setting in page modeESC V+n: Right rotation 900 specification / cancellationESC W+x1+x2+y1+y2+dx1+dx2+dy1+dy2: Print area setting in page print modeESC X+m+n: Sleep mode time settingESC ¥+n1+n2: Internal process settingESC c+1+n: Set internal processingESC s+n: Print speed settingESC {+n: Sets/resets upside down printingFS !+n: Kanji printing mode collective specificationFS &: Kanji printing mode specificationFS -+n: Kanji underline specification / cancellationFS .: Kanji printing mode cancellationFS 2+C1+C2+d1 to dn: User defined character definitionFS 9+n: Sets the detection functionsFS C+n: Kanji code system selectionFS E+n: Correction of impressed energyFS S+n1+n2: Kanji space settingFS r+n: Parameter transmission (valid for non-protocol mode)GS $+n+1+2: Vertical absolute position specification in page print modeGS &+m+x+y1+y2+[d]k: Registration of image dataGS‘+m+n: Prints registered image dataGS <: Line feeds to the next markGS A+m+n: Sets the line feed length after mark detectionGS B+n: Bar code angle settingGS E+n: Print quality settingGS L+n1+n2: Left margin settingGS W+n1+n2: Print area width settingGS ¥+ n1+n2: Vertical relative position setting in page modeGS a+n: Setting & cancellation of status transmission (non protocol mode)GS e+m+n: Bar code width settingGS h+n: Bar code height settingGS k+m+n+d1 to dn: Bar code printingGS k+m+k1+k2+k3+k4+{[p1][d(1,1)]to[d(1,j)]} to {[pi [d(i,1)] to [d(i,j)]}[00]16: Two dimentional code (QR code) printGS k+m+k1+k2+k3+k4+k5+d1 to dn: Two dimentional code (Maxi Code) printGS k+m+k1+k2+k3+k4+k5+k6+d1 to dn: Two dimentional code (PDT-417) printGS k+m+n+k+pL+pH+d1+dn: Barcode (GS1 DataBar) printGS k+m+n+k1+k2+k3+k4: Barcode (GS1 DataBar) settingGS (+A+ETX+n: Bluetooth automatic disconnection time settingGS (+A+ACK+m+n: Bluetooth security mode settingGS (+A+HT+n+d1 to dn: Bluetooth device name settingGS (+A+EOT: Bluetooth information printGS (+A+BS+n+d1 to dn: Bluetooth PIN code settingESC Y+SOH+ESC+x+a+DC1+m: Bluetooth automatic connection/specification/cancellationESC t+n: Character code table selectionESC Y+SOH+ESC+x+a+DLE+n: Communication mode setting
