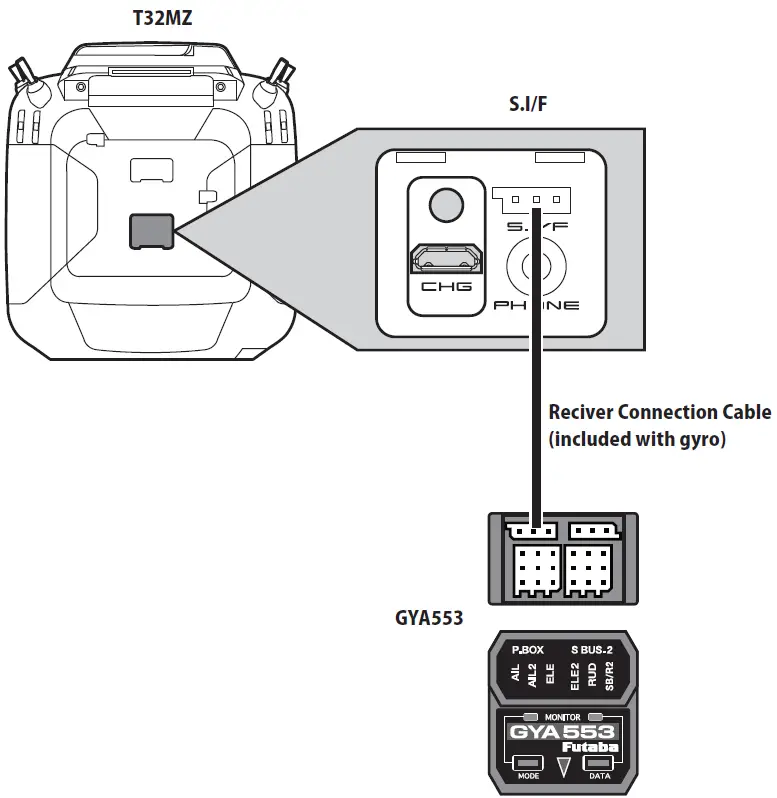

Connection T32MZ and GYA553A553

SETTING

1. Select “Gyro setting” on the last page of Airplane Model Menu
2. Select “Start”
3. Home screen is displayed

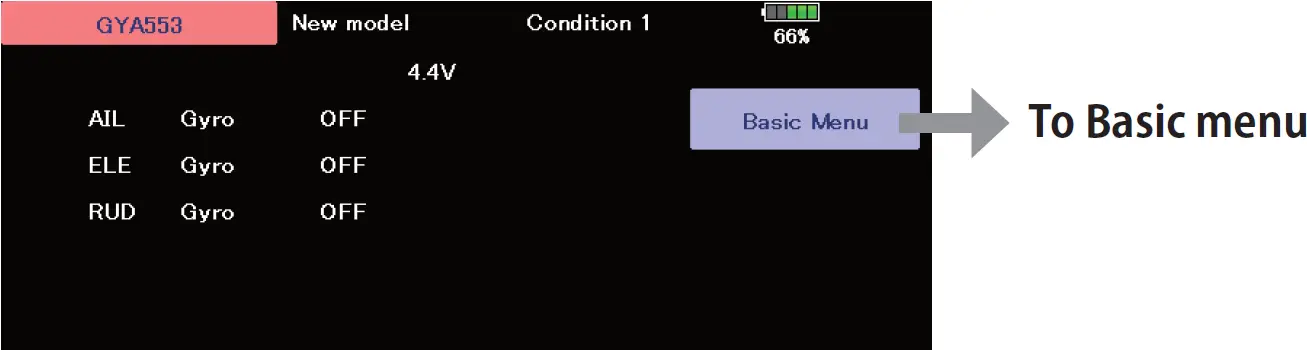

Home Screen

On the home screen, basic information such as gyro operation mode, sensitivity, battery voltage are displayed.

Basic Menu

Config

Gyro Set Mounting Direction

Set the mounting direction of GYA. Set mounting direction with reference to figure below.

WING/TAIL

Set with the wing type/tail type of GYA553. The wing type/tail type of the transmitter is not used and is normal.

• Turn off the elevon / V-tail mixing on the transmitter side.
• Do not use transmitter sub-trim. Adjust using the gyro neutral offset.
• When using the S.BUS servo, you can also use the neutral offset function of the S.BUS servo setting parameters.

Servo Type

Select the servo type according to the servo to be used.

Digital servo → DG : 285 HzAnalog servo → AN : 70 Hz

The stability of digital-servo mode of a flight increases in order to perform a high-speed control action.

SB/R2 OUT

Select the SB / R2 port.

Gyro Direction

It is the direction setting of the gyro. Be careful as it will crash if the direction is reversed.For dual aileron, dual elevator, and dual rudder aircraft, check the operating direction of each second aileron/elevator/rudder.

Neutral Offset

Neutral position setting for each servo.

Servo Limit

This is the limit setting for each servo. The position of the maximum operation is read into the gyro in the first setting.

Aileron Example

Reset

Reset each Config item. It returns to the initial value.

SBUS Basic Menu

Set the CH for each function according to the transmitter to be used. Any unused functions should be set to INH (Inhibited).

WARNINGAlways verify that the S.BUS function assignments match your transmitter’s function (in the FUNCTION menu) assignments. If any changes are made within the transmitter function assignments, then it will also be necessary to make the changes within the S.BUS function assignments. To change the channel, GYA553 and T32MZ must be connected.
