Gefen HDMI Switcher 4×1 with 600MHz
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

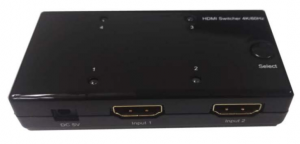

INTRODUCTION
This is a high-performance HDMI 4×1 Switcher which not only has the key-press-switching function, but also has intelligent function. This HDMI Switcher routes high definition video (in multiple resolutions up to ) and digital audio from any one of four sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for DMR-BZT9600, BDP-LX88, SONY FMP-X10-001, NVidia GTX970,GTX980 series, output sends the high definition audio/video signals to a high definition display like Samsung UA48HU5900,SONY KD-55X8000B.
FEATURES
This HDMI Switcher has many features that enable it to perform in a superior manner. Among those features you will find:
- Support to switch 4 HDMI sources to 1 HDMI display
- Multifunctional on switching: intelligent or mechanical
- Support highest video resolution up to
- Support HDMI max 600MHz Bandwidth
- Support Full 3D
- HDCP Pass through
- Support compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD）
- EDID bypass
SPECIFICATIONS
| Signal Inputs/Output | |
| Input Video | HDMIx4 |
| Maximum Single Link Range | Full 3D and |
| Output Video | HDMIx1 |
| Operating Frequency | |
| Vertical Frequency Range | 24/30/50/60Hz |
| Video Amplifier Bandwidth | 6Gbps/600MHz |
| Resolutions (HDTV) | |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p,4k*, , |
| Mechanical | |
| Size(L-W-H) | 86X44X16mm |
| Weight(Net) | 42g |
| Warranty | |
| Limited Warranty | 1 Year Parts and Labor |
| Environmental | |
| Operating Temperature | 0 ℃ to +40℃ |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Temperature | -10℃ to +80℃ |
| Storage Humidity | 5% to 90 % RH (no condensation) |
| Power Requirement | |
| External Power Supply | 5V/1A |
| Power consumption (Max) | 2W |
| Accessories Adapter | |
| User Manual | English Version |
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
- Main unit.
- User’s Manual.
- Power Adapter
CONNECTION
- Connect the HDMI input source into the HDMI switcher. (Input cablesare optional)*Please refer to connection diagram section.
- Connect the HDMI Display into the output of the Switcher
- Press the button to select the inputs
- Insert 5V DC Power AdapterAttention: Insert / Extract cable gently.

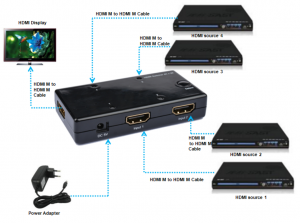

CONNECTION DIAGRAM
