genaray T40-D Trailblazer Portable 40 W Daylight LED Monolight User Manual

genaray T40-D Trailblazer Portable 40 W Daylight LED Monolight

INTRODUCTION

THANK YOU FOR CHOOSING GENARAYGenaray’s compact and portable Trailblazer features a COB LED array that offers bright, flicker-free light that’s perfect for photo and video shoots in the studio or on location. The fixture runs on a readily available NP-F battery or on AC power, and despite its size, it serves up 8010 lux to illuminate your subjects with an extremely high degree of color accuracy. The Trailblazer weighs slightly over a pound and packs up in its own carry bag for portability and includes a tilt adapter for light-stand mounting.A diffuser lens softens the beam and delivers a single-shadow light with soft edges that bathes subjects in natural, daylight-balanced light. And thanks to the Trailblazer’s circular COB and lens, it also provides a natural-looking catchlight. For extra directionality or texture, the integrated Bowens accessory mount is compatible with a host of easy-to-attach accessories.

PRECAUTIONS

  • Please read and follow these instructions, and keep this manual in a safe place.
  • Keep this unit away from water and any flammable gases or liquids.
  • Make sure the unit is powered off when plugging it into a power source.
  • Use only the correct, recommended voltage.
  • Do not attempt to disassemble or repair the equipment—doing so will void the warranty, and Genaray will not be responsible for any damage.
  • Handle the unit with care.
  • Do not stare directly at the lights when they are powered on.
  • Clean the unit with only a soft, dry cloth.
  • Keep this unit away from children.
  • Use only parts provided by the manufacturer.
  • Make sure the item is intact and that there are no missing parts.
  • All images are for illustrative purposes only.

Recycling Lithium-Ion BatteriesLithium-ion batteries are recyclable. You can help preserve the environment by returning your used rechargeable batteries to a collection and recycling location near you.For more information about recycling rechargeable batteries, call the Call2Recycle helpline at 1-877-723-1297, or visit www.call2recycle.org

OVERVIEW

CHARGING THE BATTERY

The Trailblazer includes a charger for the rechargeable NP-F battery.

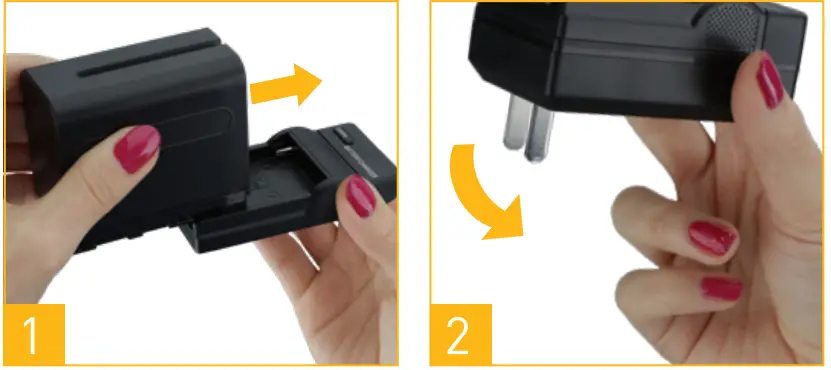

  1. Slide the battery onto the battery plate, and attach the battery plate to the charger by sliding the plate into the charger.
  2. Swivel the plug out of the notch, and plug the charger into an available AC outlet. The indicator light on the charger will glow red when the battery is charging, and green when the battery is charged.

INSTALLING THE BATTERY

Slide the battery into the battery slot until it locks in place.To remove the battery, press the battery release and slide the battery out of the slot.Pro Tip: The battery loses some of its charges when not in use. If the battery has not been in use for several months, Genaray recommends fully recharging the battery before a shoot.

PREPARING FOR USE

MOUNTING ON A LIGHT STANDImportant! Always support the Trailblazer with one hand when mounting or adjusting the angle until all locks and connections are tight and secure.The Trailblazer can be mounted directly to a light stand that has a 5/8-inch receiver.

USING THE TILT ADAPTERBefore mounting the Trailblazer to a light stand with the tilt adapter, make sure the tilt lock is completely tightened.

  1. Loosen the locking knobs.
  2. Place the tilt adapter onto a light stand, and tighten the locking knob until secure.
  3. Place the Trailblazer’s baby pin into the tilt adapter’s receiver, and tighten the locking knob until secure.
  4. To adjust the angle of the light, loosen the tilt lock while supporting the light with one hand. Adjust the light’s angle, and retighten until secure.

ATTACHING AN UMBRELLAThe tilt adapter has an integrated umbrella mount. To attach an umbrella, follow these steps:

  1. Loosen the umbrella lock, and insert the umbrella shaft through the tilt adapter.
  2. Adjust the umbrella’s distance from the light, and retighten the umbrella lock.

ATTACHING A REFLECTOR OR LIGHT-SHAPING ACCESSORYThe Trailblazer features an integrated Bowens mount that accommodates most Bowens-compatible accessories such as reflectors, softboxes, grids, and snoots.To attach a Bowens-mount accessory:

  1. Insert the mounting pegs on the accessory into the Trailblazer’s Bowens mount.
  2. Turn the reflector clockwise until it’s snug, and tighten the fix screw.

To remove the reflector, loosen the fix screw, and turn the reflector counterclockwise to slide it out of the mount.

POWERING THE TRAILBLAZER

USING THE TRAILBLAZER WITH BATTERY POWER

  1. Make sure the power knob is in the off position of the barrel connector from the DC input if it’s plugged in.
  2. Install the battery (see installing the battery above).
  3. Turn on the Trailblazer.

The battery status indicator on the LCD screen will display the remaining battery power relative to the brightness level.

USING THE TRAILBLAZER WITH AC POWER

  1. Make sure the power knob is in the off position. Remove the battery from the battery slot if it’s installed.
  2. Plug the AC adapter into the Trailbazer’s DC power input, and then connect it to an AC outlet with the included AC power cord.

SETTING THE BRIGHTNESSUse the brightness knob to adjust the brightness from 100% to 5% in 1% increments.

PRODUCT SPECIFICATIONS

Light Fixture

LED Chip Type: COB LEDOutput Power: 40 WBeam Angle: 40°Color Temperature: 5600 KColor Accuracy Standard: CRI: 97.1 TLCI: 99Cooling System: FanDimming: Yes (100% to 5% in 1% increments)Display: LCDHousing Material: ABS plasticLight Intensity @ 3 ft.: 8010 lxExpected Lamp Life: 50,000 hr.Dimensions: Length: 6.25 in. (15.9 cm)Diameter:5 in. (12.7 cm)Weight: 1.3 lb. (0.6 kg) without batteryConnectors:Battery Plate: Integrated NP-F battery platePower Input Connector: BarrelMounting:Reflector Mount: Bowens S-typeFixture Mount: 5/8 in. stud Tilt adapter with 5/8 in. receiverPowerAC Input Power: 100 to 240 V AC, 50/60 HzDC Input Power: 7.4 VPower Source: AC adapter, NP-F batteryMax Power Consumption: 40 WRun Time: Approx 60 min. @ max power with included NP-F970 batteryPower Pass-Thru: NoneAC Cable Length: 4.7 ft. (1.4 m)AC Adapter Cable and Power Cable Length: 9.16 ft. (2.8 m)

ONE-YEAR LIMITED WARRANTY

This Genaray product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. Genaray’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at Genaray’s discretion, of any product that fails during normal use of this product in its intended manner and in its intended environment. The Inoperability of the product or part(s) shall be determined by Genaray. If the product has been discontinued, Genaray reserves the right to replace it with a model of equivalent quality and function.

This warranty does not cover damage or defect caused by misuse, neglect, accident, alteration, abuse, improper installation or maintenance. EXCEPT AS PROVIDED HEREIN, GENARAY MAKES NEITHER ANY EXPRESS WARRANTIES NOR ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. This warranty provides you with specific legal rights, and you may also have additional rights that vary from state to state.

To obtain warranty coverage, contact the Genaray Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Genaray along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.

For more information, or to arrange service, visit www.genaray.com or contact us at [email protected]© 2020 Genaray. All Rights Reserved.
