USER MANUALNP-SW5-02

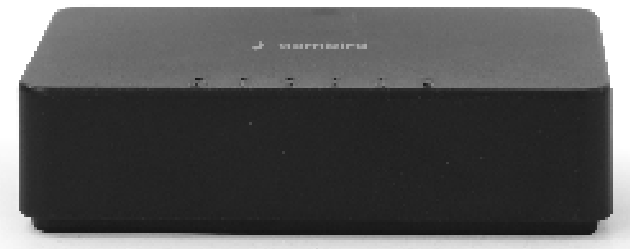

5-PORT LAN SWITCH

Features

• 5-port LAN switch
• Provides five 10/100 Mbps Ethernet ports (RJ45 connectors)
• All ports support full/half duplex modes and auto-negotiation
• All Ports support Auto-MDI/MDI-X function
• Power adapter included

Specifications

• Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x Flow Control
• Chipset: IC+
• Cabling: UTP Cat.3 or up for 10BASE-T; UTP Cat.5 or up 100BASE-TX/1000Base-T
• Power consumption: 5 V DC up to 0.6 A
• Dimensions: 81 x 48 x 21 mm
• Net weight: 48 g
• Operating temperature: 0 … 40 °C
• Storage temperature: -40 … 70 °
• Operating humidity: 10 … 90 %RH (non-condensing)
• Storage humidity: 5 … 90% RH (non-condensing)

2 GEMBIRD EUROPE B.V. http://www.gembird.euAll brands and logos are registered trademarks of their respective owners

Declaration of conformity

This product is tested and complies with the Dit product is getest en voldoet aan alle geldende nationale essential requirements of the laws of member en  Europese richtlijnen en regelgeving met betrekking tot states concerning LVD(2014/35/EU), LVD(2014/35/EU), EMC(2014/30/EU), RoHS (2011/65/EU). EMC(2014/30/EU), RoHS (2011/65/EU). The Dit product heeft een CE-markering en de bijbehorende  CE declaration can be found under   www.gembird.eu

Waste disposal:

Do not deposit this equipment with the household waste. Improper disposal can harm both the environment and human health. For Information about waste collection facilities for used electrical and electronic devices, please contact your city council or an authorized company for the disposal of electrical and electronic equipment.

 WARRANTY CONDITIONS

The receipt must clearly list the date of purchase and the part number, in addition it should be printed. Keep the receipt for the entire warranty period since it is required for all warranty claims. During the warranty period the defective items will be credited, repaired or replaced at the manufacturer’s expense. Work carried out under the warranty neither extends the warranty period nor starts a new warranty period. The manufacturer reservesthe right to void any warranty claim for damages or defects due to misuse, abuse or external impact (falling down, impact, ingressof water, dust, contamination or break). Wearing parts (e.g. rechargeable batteries) are excluded from the warranty. Upon receipt of the RMA goods, Gembird Europe B.V.reserves the right to choose between replacement of defective goods or issuing a credit note. The credit note amount will alwaysbe calculated on the basis of the current market value of the defective productsGembird Europe B.V. Wittevrouwen 56, 1358CD Almere,The Netherlands www.gembird.nl/service[email protected]
