GENEINNO Trident Underwater Scooter User Manual
I. User Tips
Packing List:
- Trident Underwater scooter
- Charging adaptor
- User manual
- Anti-lose rope
- Carrying bag
Caution:
Please clean the product with fresh water after use, and make the motor rotate in fresh water to prevent crystallization; please take out the battery if not use.For safety consideration, underwater scooter is for 12 year old and above; teenagers between 12 and 18 are required to operate under surveillance.It is prohibited to dive more than 50m depth with this product.It is prohibited to use this product for rapid rise or dive underwater, which would lead to diving related diseases.It is prohibited to change the battery underwater.Please do not put your finger or other body parts into the propellers through the shield.Caution: please avoid getting your clothing, long hair, etc into the propellers.Caution: the water has a certain impact force when using the scooter. Please fix the clothes before go into water.Caution: please try to avoid violent collision between this product and external objects; avoid acid and volatile liquid or sharp object getting to the surface.When low battery warning, the usage time is short, please rise up or get on shore in time.Please use this product as user manual indicated. Please do not use single hand or reverse control to avoid accidents.User Manual:The contents and pictures of this manual are subject to the actual products and the latest version. If there is any update, please visit our official website download page to get the latest version Official Website：http://www.geneinno.com/
II. Product description
Introduction:

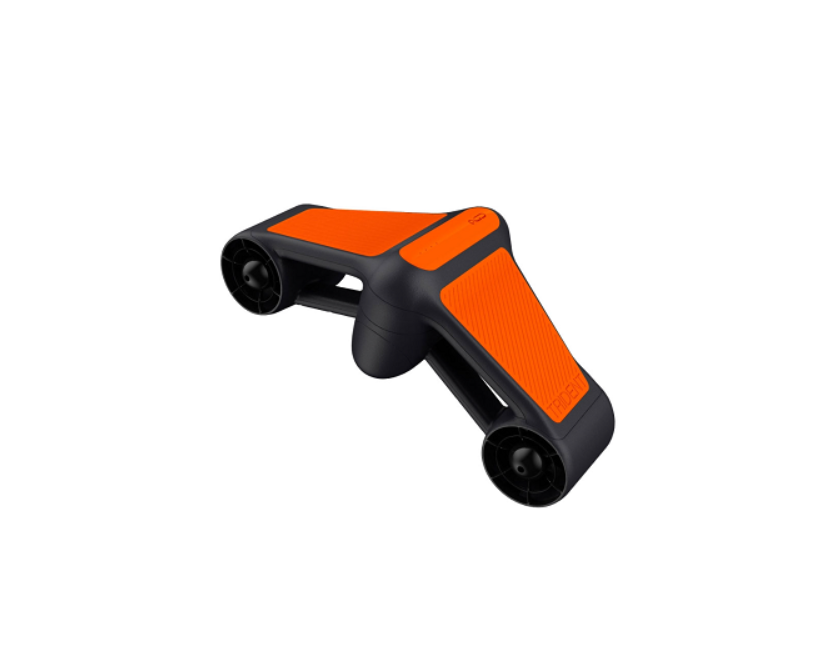

Trident is a consumption-level, integrated, intelligent underwater scooter equipped with two strong motors, which can deliver up to 12kg thrust. Diving to a depth of 50 meters, easy to bring users unparalleled underwater high-speed flying experience. It is designed with switch between high and low speed, built-in intelligent chip, and low power automatic warning. Simple operation, easy to carry, specially designed children safety lock, to ensure the safety of use. The swappable large capacity lithium batteries ensures a long underwater flying experience.

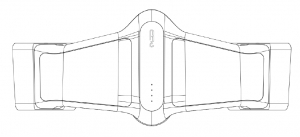

Plan view
Front view
III. Use Instructions
III.1 Battery Installation

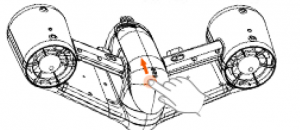

Slide the cover backward

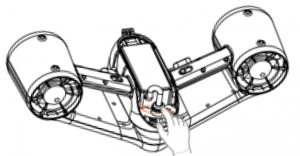

Clockwise Tightening
Unlock the Children Safety Lock
III.3 Battery Charge
Caution:

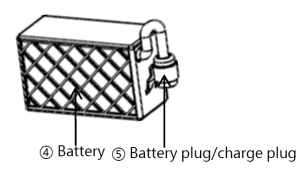

- Please take battery out following 3.1 reversed, connect ③ and ⑤ to charge the battery;
- The light on adaptor is red when charging, it is green when battery is fully charged;
- Please make sure ③ and ⑤ are dry and clean when charge the battery;
- Please charge in a dry and ventilated environment.

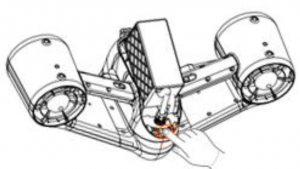

Aim connector at battery plug-in and plug
slide the cover forward till closed

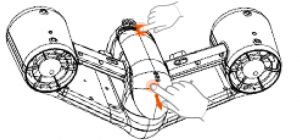

Press both buttons to start；Grab tight underwater
IV. Battery Use
Battery Using Tips:
– Re-charge the battery within 24h after each use.– Re-charge the battery every 6 months when not in use.– Remove the battery from Trident for storage.– For battery storage, keep the battery partially discharged in cool, dry place, where out of the reach of children and away from heat and ignition sources.– Use the specified adaptor only.– The battery contains safety and protection devices inside, which if damaged or removed, may case battery to fail or risky of over-heat and explosion.
Caution of Maintenance:
– Do not leave the battery discharged for too long.– Do not place the battery in water or get wet if not attached to the socket; if the connector is wet, clean and dry it as soon as possible.– Do not disassemble, damage, short-circuit or expose the battery to fire/heat.– Do not leave battery to direct sunlight, near fire, stoves or use in very high temperature condition, .– Do not subject the battery to strong shocks or impact.– Do not piece the battery with sharp objects, nails, or strike with heavy object; do not step on the battery or damage the outer casing.– In case of serious corrosion of copper core of the battery connector, please contact the official after-sales service of Geneinno company or authorized dealers for professional technical services.
Please note that improper use and maintenance not following tips above would reduce the battery life and power, and affect the battery performance.
V. Appendix
Product Specifications
| Underwater scooter | |
|
Weight |
8.2 lbs (3.7kg) |
|
Dimension |
19.68×8.2×8.89 inch |
|
500*209*226mm |
|
|
Max. Depth |
164ft (50m) |
|
Low speed |
3.6km/h |
|
High speed |
6.5km/h |
|
Operating temperature |
0~40℃ |
|
External device support |
Gopro/Lights etc |
|
Safe Lock |
Children safety lock |
|
Gear speed |
Low/high speed |
| Power | |
|
Total thrust |
12kg |
|
Total power |
Low speed: 180W; high speed: 480W |
| Battery | |
|
Type |
Rechargeable lithium battery |
|
Capacity |
6300mAh / 140Wh |
|
Voltage |
22.2V |
|
Charge Time |
1.5h~2h |
VI. Disclaimer
1. The company shall not be liable for the after-sale return and replacement of the product for any product damage or failure caused by forced disassembly or nonmachineoperational malfunction, and the maintenance, parts replacement and transportation expenses incurred shall be borne by the user.2. Please use this product strictly following the instructions of the user manual. Any violation of the instructions results in injury, disease or property loss of the user, willnot be borne by the company.3. The company will not be responsible for after-sales maintenance of the nonstandard equipment, third-party parts or structures installed or attached by users onthe products which are not sold by the company. The company will not assume the obligation of product return or replacement after sales due to damage or failure ofadditional parts, and the maintenance, parts replacement and transportation expenses arising will be borne by the user.
VII. After-sale Service
- If the product fails in use, please contact our after-sales service as soon as possible so as not to delay your use and maintenance.
- This product has 1-year whole machine tracking service from the date of purchase by the customer. The company is responsible for product repair and replacement causedby the equipment itself during normal use. Damage of equipment shell due to impact or dissembling by user will not enjoy free maintenance.
- If maintenance exceeds the warranty period, maintenance fee will be charged. (repair fee + component fee)
- For after-sale service, please visit our official website for instructions: Address: www.geneinno.com or you could email us directly to our after-sale support:Email: Please obtain the product ID number posted on the inner wall of battery compartment, and provide it to our after-sales support staff.We welcome your valuable comments on our product quality and after-sale service.
