GV-ABL2702 2MP H.265 Low Lux WDR Pro IR Bullet IP Camera
- 1/2.9″ progressive scan low lux CMOS sensor
- Min. illumination at 0.002 lux
- Triple streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 x 1080
- Intelligent IR
- IR distance up to 50 m (164 ft)
- Day and night function (with removable IR‐cu t filter)
- Ingress protection (IP67)
- Vandal Resistant (IK10 for metal casing)
- Built‐in micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10) for local storage
- Two‐way audio
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range Pro (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Tampering Alarm
- Text overlay
- Privacy mask
- ONVIF (Profile G, S, T) conformant
Introduction
The Bullet IP Camera is an outdoor, fixed, network camera equipped with an automatic IR‐cut filter and 3 IR LEDs for day and night surveillance. The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. With Wide Dynamic Range Pro (WDR Pro), it can process scenes with contrasting intensities of light and produce a clear image. The camera adheres to IK10 and IP67 standards and can be powered through PoE.

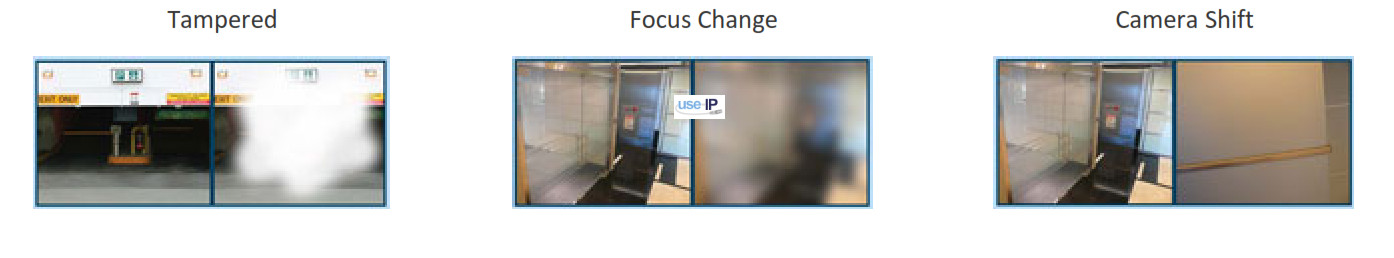

Active Tampering Alarm

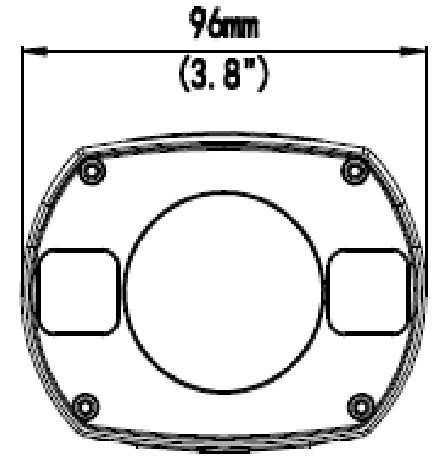

Dimensions
Specifications
| Camera | |
| Image Sensor | 1/2.9″ progressive scan low lux CMOS |
| Picture Elements | 1920 (H) x 1080 (V) |
| Minimum Illumination• Color• IR ON | 0.002 Lux (F1.6, AGC ON) |
| 0 Lux | |
| Shutter Speed | Auto / Manual (1/6 ~ 1/100000 sec) |
| White Balance | Auto / Manual |
| Gain Control | Auto / Manual |
| S/N Ratio | 52 dB |
| WDR Pro | Yes |
| Dynamic Range | Up to 120 dB |
| Lens | |
| Megapixel | Yes |
| Day / Night | Yes (with removable IR‐cut filter) |
| Lens Type | Varifocal lens |
| Focal Length | 2.8 ~ 12 mm |
| Maximum Aperture | F/1.6 |
| Mount | Ø14 mm |
| Horizontal FOV | 92° ~ 34° |
| Operation• Focus• Zoom• Iris | Manual (with lock) |
| Manual (with lock) | |
| DC Iris | |
| IR LED Quantity | 3 IR LED |
| Max. IR Distance | 50 m (164 ft) |
| Operation | |
| Video Compression | H.265, H.264, MJPEG |
| Video Streaming | Triple streams |
| Video Resolution• Main Stream•Sub Stream•Third Stream(Closed by Default) | 1920 x 1080 (Default) |
| 1280 x 720, 720 x 576, 704 x 288, 640 x 360 (Default), 352 x 288 | |
| 720 x 576, 704 x 288, 640 x 360, 352 x 288 | |
| Frame Rate | 30 fps at 1920 x 1080 (60 / 50 Hz)* The frame rate and performance may vary depending on the number ofconnections and data bitrates (different scenes). |
| Video Analytics | Motion Detection, Tampering Alarm, Audio Detection, Cross Line, Intrusion, ObjectMoving, Object Left, Defocus, Scene Change, Face Detection, People Counting*Tampering alarm, audio detection, cross line, intrusion, object moving, object left, defocus, scene change, face detection and people counting are only accessible through the camera’s Web interface, which can be us ed to trigger alerts such as e‐mail and FTP |
| Image Setting | Brightness, Contrast, Saturation, Sharpness, 3D Noise reduction, Image Orientation, Exposure Mode, Shutter Speed, Gain Control, Slow Shutter, Backlight Compensation (BLC), Metering Control, D/N Sensitivity, WDR, Smart Illumination, White Balance, Defog |
| Audio Compressio | G.711, AAC (optional) |
| Audio Support | Two‐way Audio (external microphone and speaker required) |
| Digital I/O Input | 1 Input, dry contact, NO / NC |
| Output | 1 Relay Output (1A 30V DC / 0.3A 125V AC) |
| Network | |
| Interface | 10/100 Ethernet |
| Protocol | 802.1x, ARP, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, NTP, PPPoE, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP, ONVIF (Profile G, S, T) |
| Mechanical | |
| Camera Angle Adjustment• Pan• Tilt• Rotate | 0°~360° |
| 0°~120° | |
| 0°~360° | |
| Connectors• Power• Ethernet• Audio• Digital I/O• Local Storage | DC Jack (DC 12V, 1A), PoE (IEEE802.3af) |
| RJ‐45 connector | |
| 1 in (Audio In Wire); 1 out (Audio Out Wire)*The Audio In port only support microphones with power supply. | |
| 4‐pin terminal block pitch 3.5 mm (0.14”) | |
| Micro SD card slot (SD / SDHC / SDXC / UHS‐I, Class 10)*UHS‐II card type is not supported. | |
| General | |
| Operating Temperature | ‐35°C ~ 60°C (‐22°F ~ 140°F) |
| Humidity | 0% to 95% (no condensation) |
| Power Source | 12 V DC / PoE (IEEE802.3af) |
| Max. Power Consumption | 9 W |
| Dimensions | 253.4 × 86 × 71.1 mm (9.98” × 3.4” × 2.8”) |
| Weight | 0.58 kg (1.28 lb) |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 for metal casing |
| Regulatory | FCC, UL, CE, RoHS compliant |
| Web Interface | |
| Installation Management | Web‐based configuration |
| Maintenance | Firmware upgrade through Web Browser or Utility |
| Access from Web Browser | Live View, Video Recording, Change Video Quality, Bandwidth Control, Image Snapshot, Defog, Tampering Alarm, Text Overlay, Image Masking |
| Language | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese,Russian, Spanish, Traditional Chinese |
| Applications | |
| Software Supported | GV‐DVR / NVR (V8.7.4.0), GV‐VMS (V17.1), GV‐Control Center (V3.5.0.0), GV‐ dge Recording Manager (V1.3.0.0), GV‐Recording Server / Video Gateway (V1.4.0.0), GV‐Redundant / Failover Server (V1.1.0.0) |
| Smart Device Access | GV‐Eye for iOS and Android |
| Live Viewing | Browser (IE, Edge, Chrome, Firefox, Safari), Mobile App |
Note: 1. It is required to apply patch files to all the supported software.2. Do not use clothes or any ordinary material to clean the camera cover since they may result in scratches.3. Specifications are subject to change without notice.
Packing List
1. IR Bullet IP Camera2. Waterproof Rubber Set3. Screw Kit4. Drill Template Paster5. Download Guide6. Warranty Card
| Model No. | Name | Details | |
| GV-Mount503 | Wall Mount Bracket |  |
Dimensions: 125 x 125 x 55 mm (4.9″ x4.9″ x2.2″)Weight: 0.74 kg (1.63 lb) |
| GV- Moun t42 0
(must be used with GV-Mount503) |
Pole Mount Bracket |  |
Dimensions: 0 120 x 120 x 53.4 mm(4.7″ x 4.7″ x 2.1″)Weight: 0.45 kg (0.99 lb) |
| GV-PA191
Power over Ethernet (PoE) Adapter |
|
 |
The GV-PA191 is a Power over Ethernet (PoE) adapter designed to provide power to the IP device through a single Ethernet cable. |
| GV-POE Switch | The GV-POE Switch is designed to provide power along with network connection for IP devices. The GV-POE Switch is available in various models with different numbers and types of ports. | ||
| Power Adapter | Contact our sales representatives for the countries and areas supported. |
