AX-D2-G 36V Golf Cart Installation Guide

AX-D2-G 36V Golf Cart

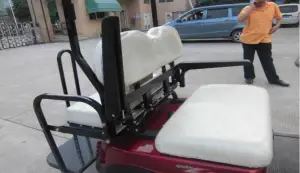

Assembly

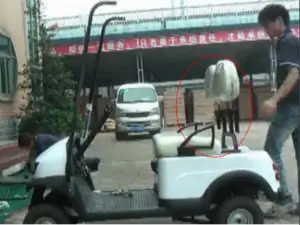

1. Assemble the top canopy front bracket with hardware provided.
2. Insert the seat back bracket and fasten with the hardware provided.

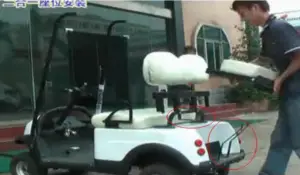

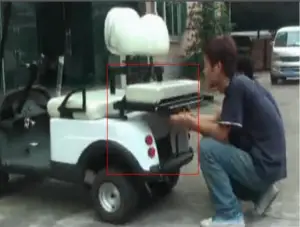

3. Attach rear seat cushion with bracket.
4. Assemble Top canopy rear structure and rear handrest.

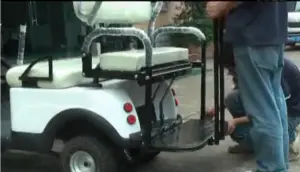

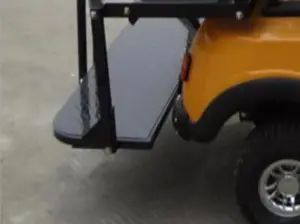

5. Attach rear U-handrest and foot-step with hardware provided. There will be triangular plate on each side of foot-step.

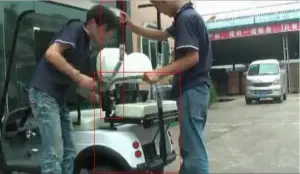

6. Attach the canopy structure to the TOP Bracket, using the hardware provided.

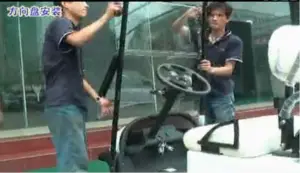

7. Assemble the steering wheels and windshield.
8. Cover the ceiling.
9. Assemble the handrest.
10. Fasten all the screws.
