INSTRUCTION MANUALMODEL:HR82WFRIDGEwww.haden.com

Safety information

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety. For the safety of life and property keep the precautions of these users’ instructions as the manufacturer is not responsible for damages caused by omission.

Children and vulnerable people safety

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved.
Children aged from 3 to 8 years are allowed to load and unload this appliance.
Children should be supervised to ensure that they do not play with the appliance.
Cleaning and user maintenance shall not be made by children unless they are aged 8 years and above and supervised.
Keep all packaging well away from children. There is a risk of suffocation.
If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can), and remove the door to prevent playing children to suffer electric shock or closing themselves into it.
If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

General safety

WARNING! Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. WARNING! Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. WARNING! Do not damage the refrigerant circuit.

WARNING! Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacture. WARNING! Do not touch the light bulb if it has been on for a long period of time because it could be very hot.1) WARNING! When positioning the appliance, ensure the supply cord is not trapped or damaged. WARNING! Do not locate multiple portable socket outlets or portable power suppliers at the rear of the appliance.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
The refrigerant isobutane (R-600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.
During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged. – avoid open flames and sources of ignition – thoroughly ventilate the room in which the appliance is situated
It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short circuit, fire and/or electric shock.
This appliance is intended to be used in household and similar applications such as – staff kitchen areas in shops, offices and other working environments; – farm houses and by clients in hotels, motels, and other residential type environments; – bed and breakfast type environments; – catering and similar non-retail applications.

WARNING! Any electrical components(plug, power cord, compressor and etc.) must be replaced by a certified service agent or qualified service personnel.

WARNING! The light bulb supplied with this appliance is a “special use lamp bulb” usable only with the appliance supplied. This “special use lamp” is not usable for domestic lighting.1)

The power cord must not be lengthened.
Make sure that the power plug is not squashed or damaged by theback of the appliance. A squashed or damaged power plug may overheat and cause a fire.
Make sure that you can come to the mains plug of the appliance.
Do not pull the main cable.
If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.
You must not operate the appliance without the lamp.
This appliance is heavy. Care should be taken when moving it.
Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
Avoid prolonged exposure of the appliance to direct sunlight.

Daily use

Do not put hot on the plastic parts in the appliance.
Do not place food products directly against the rear wall.
Frozen food must not be re-frozen once it has been thawed out.1)
Store pre-packed frozen food in accordance with the frozen food manufacture,s instructions.1)
Appliance,s manufactures storage recommendations should be strictly adhered to. Refer to relevant instructions.
Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.1)
Ice lollies can cause frost burns if consumed straight from the appliance.1 )To avoid contamination of food, please respect the following instructions
Opening the door for long periods can cause a significant increase in the temperature in the compartments of the appliance.
Clean regular surfaces that can come in contact with food and accessible drainage systems.
Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.
Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
Two-star frozen-food compartments(if they are presented in the appliance) are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
One-, two- and three-star compartments (if they are presented in the appliance) are not suitable for the freezing of fresh food.
If the appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mount developing within the appliance.
Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
Do not clean the appliance with metal objects.
Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.1)
Regularly examine the drain in the refrigerator for defrosted water. If necessary, clean the drain. If the drain is blocked, water will collect at the bottom of the appliance.2)

Installation

Important! For electrical connection carefully follow the instructions given in specific paragraphs.

Unpack the appliance and check if there are damages to it. Do notconnect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case, retain packing.
It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back into the compressor.
Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
Wherever possible the spacers of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
The appliance must not be located close to radiators or cookers.
Make sure that the mains plug is accessible after the installation of the appliance.

Service

Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.
This product must be serviced by an Authorized Service Center, and only genuine spare parts must be used.

Energy saving

Don’t put hot food in the appliance;
Don’t pack food close together as this prevents air circulating;
Make sure food doesn’t touch the back of the compartment(s);
If the electricity goes off, don’t open the door(s);
Don’t open the door(s) frequently;
Don’t keep the door(s) open for too long time;
Don’t set the thermostat on exceeding cold temperatures;
Some accessaries, such as drawers, can be removed to get a larger storage volume and lower energy consumption.

Environment protection

This appliance does not contain gasses that could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed of according to the appliance regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

Packaging materials

The materials with the symbol are recyclable. Dispose of the packaging in suitable collection containers to recycle it.

Disposal of the appliance

Disconnect the main plug from the main socket.
Cut off the main cable and discard it.

WARNING!During use, service, and disposal of the appliance, please pay attention to symbols similar to the left side, which is located on the rear of the appliance (rear panel or compressor) and with yellow or orange color. It’s a risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressors. Please be far away from the fire sources during use, service, and disposal.

Overview

Note: Above picture is for reference only. Real appliance probably is different.

Reverse Door

Tool required: Philips screwdriver, Flat bladed screwdriver, Hexagonal spanner.

Ensure the unit is unplugged and empty.
To take the door off, it is necessary to tilt the unit backward. You should rest the unit on something solid so that it will not slip during the door reversing process.
All parts removed must be saved to do the reinstallation of the door.
Do not lay the unit flat as this may damage the coolant system.
It’s better than 2 people handling the unit during assembly.

Remove hinge cover and then unscrew hinge bracket.
Remove the top left screw cover.
Move the core cover from the left side to the right side. And then lift the upper door and place it on a padded surface to prevent it from scratching.
Unscrew the bottom hinge of the freezer door. Then remove the door and place it on a soft pad to avoid scratch.

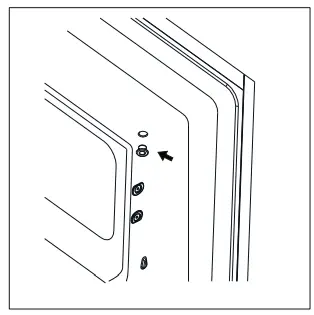

Move door holder from left side to right side.
Move hinge hole cover from left side to right side.
Rotate freezer door and place hinge side at left side. And then fix the door by the holder.

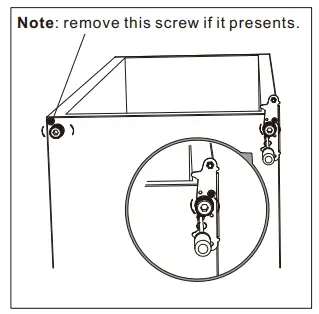

Unscrew bottom hinge. Then remove the adjustable feet from both sides.
Unscrew and remove the bottom hinge pin, turn the bracket over and replace it.

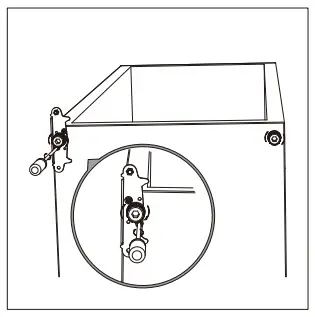

Refit the bracket fitting the bottom hinge pin. Replace both adjustable feet.
Place the door back on. Ensure the door is aligned horizontally and vertically so that the seals are closed on all sides before finally tightening the top hinge.Insert the hinge bracket and screw it to the top of the unit. Use a spanner to tighten it if necessary.
Put the hinge cover and the screw cover back.

Installation

Space Requirement

Keep enough space of door open.
Keep at least 50mm gap at two sides.

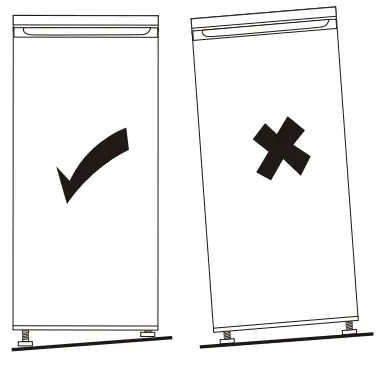

Leveling the unit

To do this adjust the two leveling feet at front of the unit.

If the unit is not level, the doors and magnetic seal alignments will not be covered properly.

Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Location

The appliance should be installed well away from sources of heat such as radiators, boilers, direct sunlight, etc. Ensure that air can circulate freely around the back of the cabinet. To ensure the best performance, if the appliance is positioned below an overhanging wall unit, the minimum distance between the top of the cabinet and the wall unit must be at least 100 mm. Ideally, however, the appliance should not be positioned below overhanging wall units. Accurate leveling is ensured by one or more adjustable feet at the base of the cabinet.

Warning! It must be possible to disconnect the appliance from the mains power supply; the plug must therefore be easily accessible after installation.

Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply. The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed. This appliance complies with the E.E.C. Directives.

Daily Use

First use

Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly.

Important! Do not use detergents or abrasive powders, as these will damage the finish.

Temperature Setting

Plug on your appliance. The internal temperature is controlled by a There are 8 settings . 1 is warmest setting and 7 is coldest setting and 0 is off.
The appliance may not operate at the correct temperature if it is in particularly hot or if you open the door often.

Position different food in different compartments according to be below the table

Refrigerator compartments	Type of food
Door or balconies of fridge compartment	Foods with natural preservatives, such as jams, juices, drinks, condiments. Do not store perishable foods.
Crisper drawer (salad drawer)	Fruits, herbs, and vegetables should be placed separately in the crisper bin. Do not store bananas, onions, potatoes, garlic in the refrigerator.
Fridge shelf — bottom Chiller (box/drawer)	Raw meat, poultry, fish (for short-term storage)
Fridge shelf — middle	Dairy products, eggs
Fridge shelf — top	Foods that do not need cooking, such as ready-to-eat foods, deli meats, leftovers.
Freezer drawer(s)/shelf	Foods for long-term storage. Bottom drawer/shelf for raw meat, poultry, fish. Middle drawer/shelf for frozen vegetables, chips. Top drawer/shelf for ice cream, frozen fruit, frozen baked goods.

Storing frozen food

The freezer is a 3-star compartment and suit for storage food, not frozen food.

When first starting up or after a period out of use. Before putting the product in the compartment let the appliance run for at least 2 hours on the higher settings.

Important! In the event of accidental defrosting, for example, the power has been off for longer than the value shown in the technical characteristics chart under “rising time”, the defrosted food must be consumed quickly or cooked immediately.

Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the fridge compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer. In this case, cooking will take longer.

Ice-cube

This appliance may be equipped with one or more ice-cube to produce ice.

Accessories

Movable shelves

The walls of the refrigerator are equipped with a series of runners so that the shelves can be positioned as desired.Positioning the door balconiesTo permit storage of food packages of various sizes, the door balconies can be placed at different heights. To make these adjustments proceed as follows: gradually pull the balcony in the direction of the arrows until it comes free, then reposition as required.

Helpful hints and tips

To help you make the most of the freezing process, here are some important hints:

prepare food in small portions to enable it to be rapidly and completely cooled and to make it possible subsequently to thaw only the quantity required;
wrap up the food in aluminum foil or polythene and make sure that the packages are airtight;
do not allow fresh, unfrozen food to touch food that is already frozen, thus avoiding a rise in temperature of the latter;
lean foods store better and longer than fatty ones; salt reduces the storage life of food;
water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable your removal from the freezer compartment, which can possibly cause the skin to be freeze burnt;
it is advisable to show the freezing in date on each individual pack to enable you to keep a tab of the storage time.

Hints for storage of frozen food

To obtain the best performance from this appliance, you should:make sure that the commercially frozen foodstuffs were adequately stored by the retailer;be sure that frozen foodstuffs are transferred from the food store to the freezer in the shortest possible time;

not open the door frequently or leave it open longer than absolutely necessary.
once defrosted, food deteriorates rapidly and cannot be re-frozen;
do not exceed the storage period indicated by the food manufacture.

Hints for fresh food refrigeration

To obtain the best performance:

Do not store warm food or evaporating liquids in the refrigerator
Do cover or wrap the food, particularly if it has a strong flavor
Make (all types): wrap in polythene bags and place on the glass shelves above the vegetable drawer.
For safety, store in this way only one or two days at the most.
Cooked foods, cold dishes, etc…: these should be covered and may be placed on any shelf.
Fruit and vegetables: these should be thoroughly cleaned and placed in the special drawer(s) provided.
butter and cheese: these should be placed in special airtight containers or wrapped in aluminum foil or polythene bags to exclude as much air as possible.
Milk bottle: these should have a cap and should be stored in the balconies on the door.
Bananas, potatoes, onions, and garlic, if not packed, must not be kept in the fridge.

Cleaning

For hygienic reasons the appliance interior, including interior accessories, should be cleaned regularly.

Caution! The appliance may not be connected to the mains during cleaning. The danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or fuse. Never clean the appliance with a steam cleaner. Moisture could accumulate in electrical components, the danger of electrical shock! Hot vapors can lead to the damage of plastic parts. The appliance must be dry before it is placed back into service.

Important! Ethereal oils and organic solvents can attack plastic parts, e.g. lemon juice or the juice from orange peel, butyric acid, cleanser that contains acetic acid.

Do not allow such substances to come into contact with the appliance parts.
Do not use any abrasive cleaners
Remove the food from the freezer. Store them in a cool place, well covered.
Switch the appliance off and remove the plug from the mains, or switch off or turn out the circuit breaker or the fuse.
Clean the appliance and the interior accessories with a cloth and lukewarm water. After cleaning wipe with fresh water and rub
After everything is dry place the appliance back into service.

Defrosting of the freezer

The freezer compartment, however, will become progressively covered with frost. This should be removed. Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

However, when the ice becomes very thick on the inner liner, complete defrosting should be carried out as follows:

pull out the plug from the socket;
remove all stored food, wrap it in several layers of newspaper, and put it in a cool place;
keep the door open, and place a basin underneath the appliance to collect the defrost water;
when defrosting is completed, dry the interior thoroughly
replace the plugin of the power socket to run the appliance again.

Replace the lamp

The internal light is a LED type. To replace the lamp, please contact a qualified technician.

Troubleshooting

Caution! Before troubleshooting, disconnect the power supply. Only a qualified electrician or competent person must do the troubleshooting that is not in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation).

Problem	Possible cause	solution
The appliance does not work	The temperature regulation knob is set at number “0”.	Set the knob at another number to switch on the appliance.
The mains plug is not plugged in or is loose	Insert mains plug.
Fuse has blown or is defective	Check fuse, replace if necessary.
Socket is defective	Mains malfunctions are to be corrected by an electrician.
The food is too warm.	Temperature is not properly adjusted.	Please look in the initial Temperature Setting section.
The door was open for an extended period-	Open the door only as long as necessary.
A large quantity of warm food was placed in the appliance within the last 24 hours.	Turn the temperature regulation to a colder setting temporarily.
The appliance is near a heat source.	Please look in the installation location section.
Appliance cools too much	The temperature is set too cold.	Turn the temperature regulation knob to a warmer setting temporarily.
Unusual noises	The appliance is not level.	Re-adjust the feet.
The appliance is touching the wall or other objects.	Move the appliance slightly.
A component, e.g. a pipe, on the rear of the appliance is touching another part of the appliance or the wall.	If necessary, carefully bend the component out of the way.
Water on the floor	The water drain hole is blocked.	See the Cleaning and Care section.
The side panel is hot	The condenser is inside the panel.	It’s normal.

If the malfunction shows again, contact the Service Center.

EARTHING

IMPORTANT — This is a Class I Electrical Product. It requires an Earth connection.

WARNING! ELECTRIC SHOCK HAZARD.

DO NOT DISASSEMBLE THIS APPLIANCE. TOUCHING SOME OF THE INTERNAL COMPONENTS CAN BE EXTREMELY HAZARDOUS.

This appliance must be earthed.Consult a qualified electrician or service engineer if the earthing instructions are not completely understood or doubts exist as to whether the appliance is properly earthed.

WASTE ELECTRICAL RECYCLING

This symbol indicates the product is classed as Electrical or Electronic Equipment and should not be disposed of with other household waste.

The Waste Electrical and Electronic (WEEE) Directive has been introduced across the EU: to recycle waste electrical products using the best available recovery and recycling techniques in order to minimize the impact on the environment to treat any hazardous substances and to avoid increasing landfill.

WEEE products should be disposed of by handing them over at a designated collection point. For more information about where you can drop off your waste product for recycling please contact your local authority.

WARRANTY

This product is guaranteed for 2 years from the date of original purchase.

If the product fails within this period due to faulty materials or workmanship, it will be repaired, replaced or refunded at our discretion. Proof of purchase will be required.

This warranty applies only to:

Product installed and used in accordance with the instructions contained in this
Product used for domestic purposes only.
Product purchased in the UK and Eire.

This warranty does not cover:

Cosmetic damage.
Normal wear and tear or consumable parts.
Incorrect voltage supply or power surges.
Customer misuse, modifications or adjustments.
Products with unreadable or removed serial numbers.

Haden disclaims any liability for incidental or consequential loss or damages.

In the event of a problem:

Please refer to the troubleshooting tips section within your user guide for help and
If you are still unable to resolve the problem, please contact our technical support team for assistance.

When contacting Haden please provide:

Product model number and serial number. Model & serial numbers can be found on the product rating label.
Date of purchase.
A complete description of the problem.

This information will help our team assist you more quickly.

Technical Help Line:01759 487 830

Opening Hours: Monday – Friday 9 am — 5.30 pm

Email: adminhadenwarrantv.co.uk

TECHNICAL SPECIFICATION

Model No	HR82W
Power source	220-240 Volts AC. 50Hz
Power Consumption	157 KWh / year
Refrigerant Gas	R600a
Storage Capacity	80 liters net
Fridge Capacity	69 liters net
Freezer Capacity	11 liters net
Fresh food freezing capacity	– Kg / 24 hours
Energy efficiency rating	A+ rated
Climate Class	N.ST (16°C – 38°C)
