Petrel132FPV Racing Drone 6SManual
Package IncIudedPetrel132 FPV Racing Drone 6S*1
Product Specifications
Product parameters | |
Model | Petre1132 FPV Racing Drone 6S |
Weight | BNF: 77.2gPNP: 75.2g |
Frame Kit | Petre1132 Frame Kit |
Flight Controller | FD411 |
ESC | FD 13A 4in1 |
VTX | FD VTX Micro |
Camera | Turbo Eos v2 |
Motor | FD1106 kv2400 |
Support receiver | SBUS .PPM..DSMX.i.BUS |
Input Voltage | 3-6S Lipo |
Size | 98X88mm (body dimension) |
Interface Description
Check the flight control drive

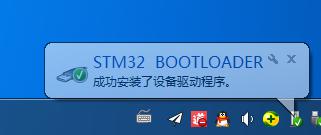

1. Long Press BOOT buttons. connect USB. The system automatically install the driver

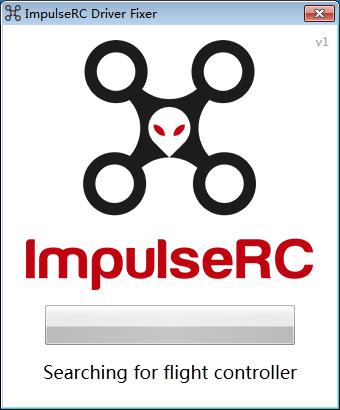

2.Driver cannot be installed, please download ImpulseRC_Driver_Fixer
3.Double-click on the run(Plug in the flight controller to automatically install the driver)
4.open betaflight configurator ,enter DFU mode
5. Click
6.Click
7.open betaflight configurator
Calibration accelerometer
1. Put the aircraft horizontal and click“Reset Z axis” Click again
URAT serial port use

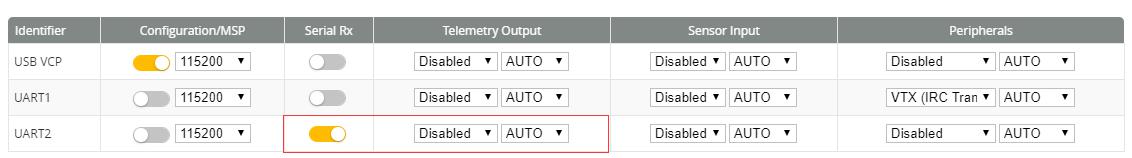

URAT1 uses VTX image transmissionUART2 uses receiver telemetry
Select aircraft model
1.Click
2.Click
Choose ESC protocol
1.Choose the right ESC protocol, the optional universal protocol DSHOT600.
Voltage parameters setting
1.Click
Setting up the receiver

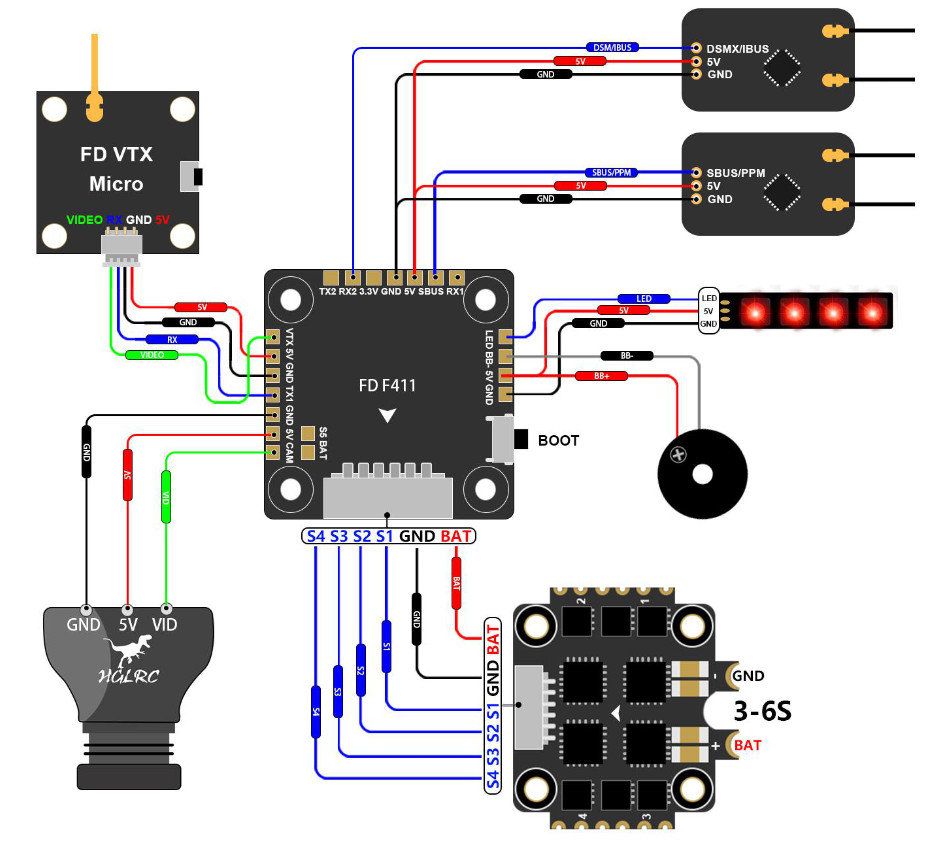

1.Receiver connection diagram
2.Click
3.Open (i.BUS/DSMX) receiver serial port

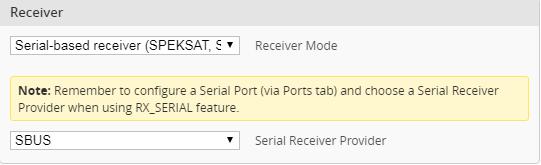

4.Set the SBUS receiver

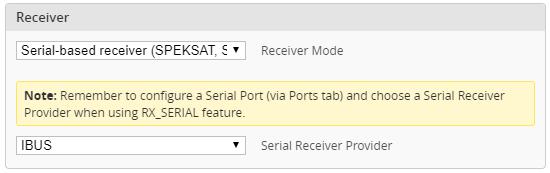

5.Set the i.BUS receiver
6.Set the DSMX receiver
7. .Set the PPM receiver
VTX serial port use. VTX uses OSD smart audio
2.VTX serial port opens. The protocol is selected according to its own VTX protocol.
3.Use OSD to adjust VTX
which displays information like battery voltage and mAh consumed while you fly. In addition, the Betaflight OSD can be used to configure the quadcopter, making in-field adjustments and tuning more convenient.
The graphics above show the stick command to bring up the OSD menu. The stick command is: throttle centered, yaw left, pitch forward. The exact stick command, therefore, depends on which mode your transmitter sticks are in.In the OSD menu, use pitch up/down to move the cursor between menu items. When a menu option has a > symbol to the right of it, this indicates that it contains a sub-menu. Roll-right will enter the sub-menu. For example, in the screen to the right, moving the cursor to “Features” and then moving the roll stick to the right will enter the “Features” sub-menu.
If you are using a video transmitter that supports remote configuration, enter the “Features” menu to configure the vTX. From there, enter either “VTX SA” if you are using SmartAudio (TBS Unify) or “VTX TR” if you are using IRC Tramp Telemetry.
To adjust PIDs, rates, and other tuning-related parameters, enter the “Profile” sub-menu.In the “Scr Layout” sub-menu, you can move the OSD elements (like battery voltage, mAh, and so forth) around on the screen.
The “Alarms” sub-menu lets you control when the OSD will try to alert you that battery voltage is too low or mAh consumed is too high.
When a parameter can be modified, the parameter’s current value will be shown on the right-hand side of the screen. In this case, roll left/right will adjust the parameter up and down.The screen to the right shows the current vTX settings. From here, you can change the frequency band, channel, and power level of the video transmitter. After making the changes, move the cursor to “Set” and press roll-right to confirm the settings.
Check receiver signal
1.Click
Select flight mode startup mode
1. Click

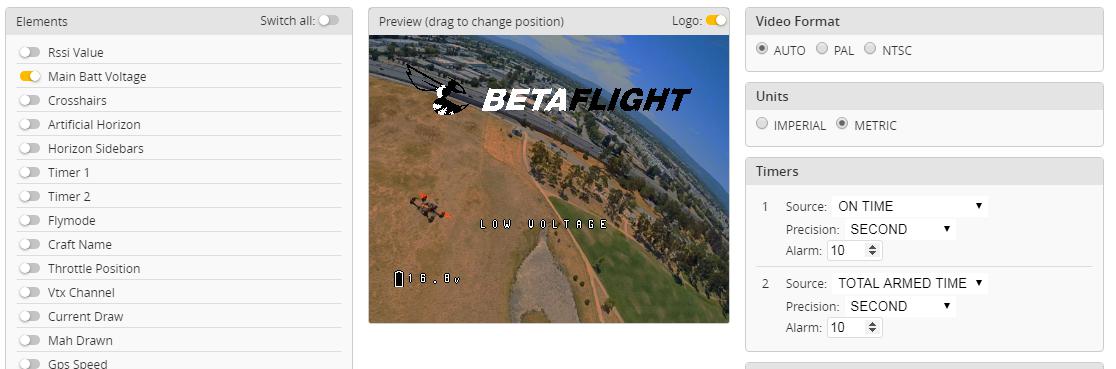

OSD settings
1. Click
LED settings
1. Click
2.Click
Troubleshooting
Warning:Please read the cautions as follows, otherwise stability of your flight controller cannot be ensured, your flight controller will even get damaged.● Keep focus on the polarity. Check carefully before power supply.● Cut off the power when you connect, plug and pull anything.● The refresh rate of PID and Gyroscope is up to 8K/8K.
after-sales question:
- After receiving the goods, it is found that the product can not be used normally. If the return to the factory is a quality problem, the repair service will be provided free of charge.
- If the product is damaged due to improper operation, the repair service may be provided under the condition that the inspection can be repaired.
- For domestic customers, please contact the after-sales service personnel. For overseas customers, please contact the official website for after-sales service.
Product daily problems

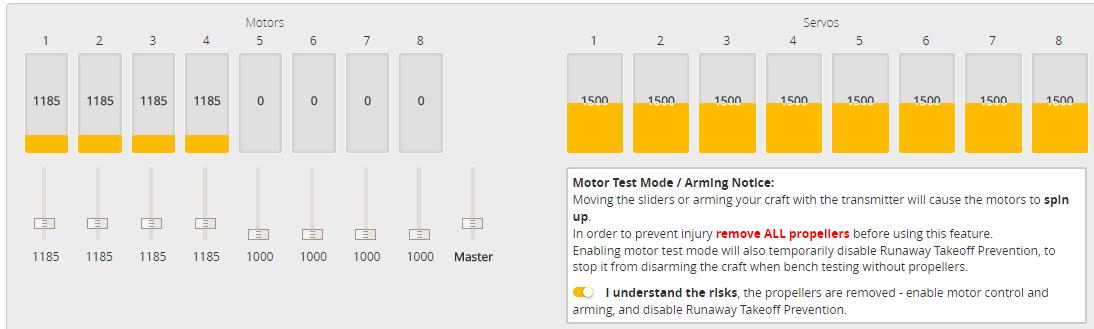

1.OSD garbled:If you find garbled characters, please open Betaflight, click “OSD” .and click “Font Manager” clicks on “Upload Font” to update1. When plugged in the battery, the aircraft does not pass the self-test without “BBB” sound. There is only one sound. Please check if the ESC agreement is correct3.The spin of the aircraft keeps spinning1. Please check if the propeller is correct2. Please check if the motor direction is correct
