HIKMICRO OWL OHX5 Handheld Thermal Monocular Camera User Guide

Handheld Thermal Monocular CameraQuick Start Guide

 Brief Description

The handheld thermal monocular camera is a handheld device with functions of observation, highest temperature target tracking, distance measurement, Wi-Fi hot spot, and so on. The high-sensitivity built-in thermal detector provides you with a clear view even in total darkness.The device is mainly applied to outdoor scenarios such as patrolling, law enforcement, searching and rescuing, drug enforcement, anti-smuggling, criminal seizing, hiking, travel, and hunting, etc.The device can capture snapshots, record videos, and set parameters by T-Vision APP after being connected to your phone via hot spot.Search the T-Vision on App Store (iOS System) or Google Play™ (Android System) to download it, or scan the QR code to download and install the app.

https://play.google.com/store/apps/details?id=com.guardExpert1.commercialvisionAndroid System

https://itunes.apple.com/cn/app/id1478705944?mt=8iOS System

 Appearance

Button

Icon	Button	Function
	Power	Hold: power on/off
	Mode	Press: palettesHold: FFC
	Capture	Press: captureHold: start/stop recording
	Menu	Press: standby mode on/offHold: display menu or not
	Zoom	Press: start digital zoom

Interface

• Lens Cover: protect the lens from dust or scratch.
• Diopter Adjustment Knob: adjust the view according to your degree of myopia.

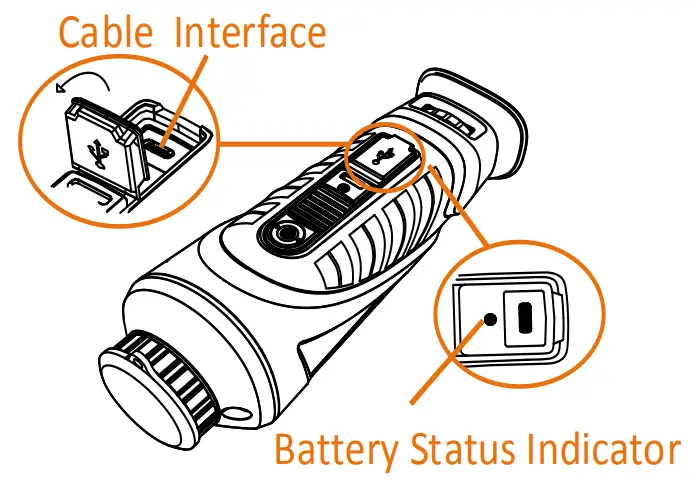

• Cable Interface: charge the device or export files with the supplied cable.
• Tripod Screw: connected to a tripod.

 Charge Device

After the device starts up, the OSD (on-screen display) shows the battery status. When the battery is low, charge the device and ensure it works properly.Before You Start

• The charging temperature should be from 0 °C to 45 °C (32 °F to 113 °F).
• Charge the device with the delivered cable.

Steps

1.  Lift the cable interface cover.
2.  Plugin the cable and charge the device.

•  Flashing Red & Green: error occurred.
•  Solid Red: the battery is properly charged.
•  Solid Green: the battery is fully charged.
• OFF: the battery is not charged.

User Manual

http://enpinfodata.hikvision.com/analysisQR/showQR/638c484a
