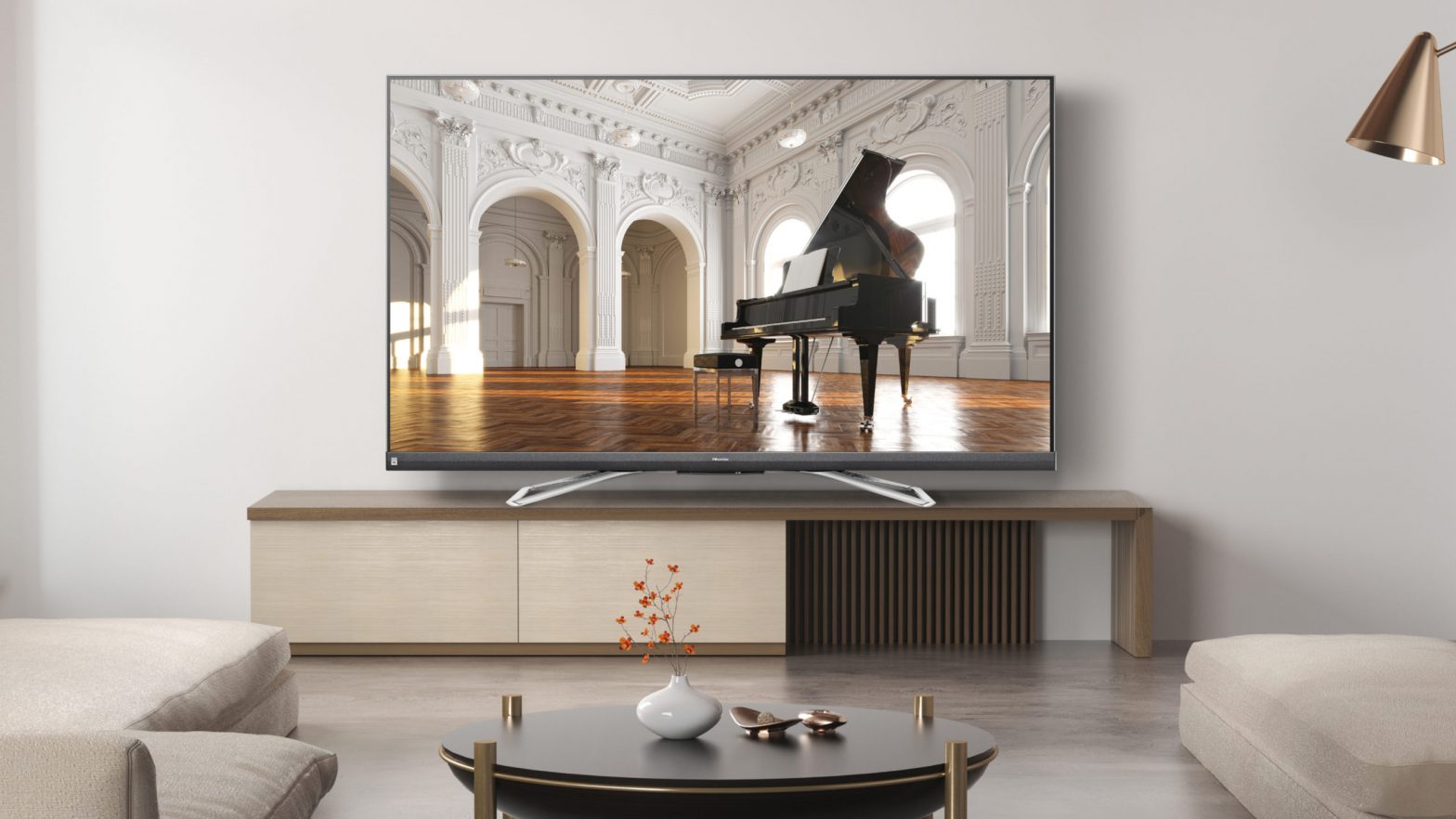

Hinsense 75U8G 4K UHD HDR Smart ULED TV

Important Safety Precautions

Do not open the back cover.In no case the user is allowed to operate inside the TV set. Only a qualified technician is entitled to operate.

  • AC voltage: This symbol indicates that the rated voltage marked with the symbol is AC voltage.
  • Class I product: This symbol indicates that it requires a safety connection of protective earthing (ground).
Disposal of Used Electrical & Electronic Equipment

Packaging and electrical goods should be recycled appropriately, and not treated as household waste. Please dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipment waste. By ensuring the correct disposal of this product, you will help prevent potentially hazardous to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. Please do not therefore dispose of your old electrical and electronic equipment with your household waste. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

WarningNever place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

  • Using stands recommended by the manufacturer of the television set.
  • Only using furniture that can safely support the television set.
  • Ensuring the television set is not overhanging the edge of the supporting furniture.
  • Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.
  • Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.
  • Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Safeguards

Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television.

  1. A note about safety and operating instructionsRead and follow all safety and operating instructions, and retain them safely for future reference.
  2. Heed WarningsAdhere to all warnings on the appliance and in the operating instructions.
  3. CleaningUnplug the TV from the wall outlet before cleaning. Do not use liquid, abrasive, or aerosol cleaners. Cleaners can permanently damage the cabinet and screen. Use a lightly dampened cloth for cleaning.
  4. Wall Mount BracketWall mount bracket is only available for some models. If wall mount bracket is not supplied with this product, you can buy it at the local market.Please refer to the Installing the Wall Mount Bracket page for dimensions.
  5. Water and MoistureAvoid dripping or splashing of liquids onto the product. Objects filled with liquids, such as vases, should not be placed on the product.
  6. SettingDo not place this TV on an unstable cart, stand or table. Placing the TV on an unstable base can cause the TV to fall, resulting in serious personal injuries as well as damage to the TV. Use only a cart, stand, bracket or table recommended by the manufacturer or salesperson.
  7. VentilationSlots and openings in the cabinet are provided for ventilation, to ensure reliable operation of the TV and to protect it from overheating. Do not cover the ventilation openings in the cabinet and never place the set in a confined space such as built-in cabinet unless proper ventilation is provided. Leave a minimum 10cm gap all around the unit, the rear of the TV should be 6cm away from the wall.
  8. Power SourceThis TV should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your appliance dealer or local power company.
  9. Power-Cord ProtectionPower- supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plug, wall outlets, and the point where they exit from the TV. MAIN plug is used as the disconnect device, the disconnect device shall remain readily operable.
  10. LightningFor added protection for this TV during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the TV due to lightning or power-line surge.
  11. Power LinesAn outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. Where installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  12. OverloadingDo not overload wall outlets and extension cords as this can result in a risk of fire or electric shock.
  13. Object and Liquid EntryNever push objects of any kind into this TV through openings as they may touch dangerous voltage points or short-out parts that could result in fire or electric shock. Never spill liquid of any kind on or into the TV.
  14. Outdoor Antenna GroundingIf an outside antenna or cable system is connected to the TV, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges.
  15. ServicingDo not attempt to service this TV yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
  16. Damage Requiring ServiceUnplug the TV from the wall outlet and refer servicing to qualified service personnel under the following conditions:
    • When the power – supply cord or plug is damaged.
    • If liquid has been spilled, or objects have fallen into the TV.
    • If the TV has been exposed to rain or water.
    • If the TV does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the TV to its normal operation.
    • If the TV has been dropped or the cabinet has been damaged.
    • When the TV exhibits a distinct change in performance – this indicates a need for service.
  17. Replacement PartsWhen replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.
  18. Safety CheckUpon completion of any service or repair to the TV, ask the service technician to perform safety checks to determine that the TV is in safe operating condition.
  19. HeatThe product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
  20. FireThe product should be situated away from naked flame sources such as lighted candle.
  21. Off-gassingThe TV smells of plastic is normal and will dissipate over time.

ATTENTION

  • Do not mix and use new batteries with old batteries, or batteries with different types. Do not expose batteries to heat such as direct sunlight or fire. Make sure the batteries’ positive and negative ends are facing the correct direction.
  • The device should not be exposed to dripping and spraying and it cannot be placed under objects filled with liquids.
  • To fully disconnect the TV, remove power plug from wall socket. Be sure to have the wall socket and power plug readily accessible.
  • Apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Accessories List

The following accessories are included with TV:

  • Actual product may vary in appearance.
  • The accessories may be different from the list above due to different models, countries/regions, please refer to the actual accessory bag.

Installing the Stand or Wall Mount Bracket

CAUTION

  • Be sure to disconnect the AC power cord before removing a base stand or installing wall mount brackets.
  • The display on your TV is fragile. Make sure the TV screen is not scratched or damaged by hard objects or from pressure.
  • After the installation is complete, make sure the TV is steady on a table or firmly attached to a wall mount, before removing all protective film, if any.
Installing the Stand

Follow the illustrations and textual instructions below to complete the installation steps:

  1. Carefully place your TV facedown on a soft, flat surface to prevent damage to the TV or scratching to the screen.
  2. Take out the 2 stands from the accessory bag and then insert the stands into the bottom slots of the TV.
  3. Secure the Base Stand to the TV with the 4 screws in the accessory bag tightly.

Installing the Wall Mount Bracket

Before you begin the installation of the wall mount bracket, be sure to do the following things:

  1. Place the TV in the bottom tray.
  2. One person holds the TV to prevent from tipping over. Other person removes the screws on the back of the TV, as shown in the picture below.

CAUTION

When mounting the TV on a wall, follow instructions provided with the wall mount bracket. If it is not correctly mounted, the TV may fall and cause property damage or personal injury.

  • Place spacers between the TV and bracket.
  • Make sure the tilt angle between the TV screen and the vertical surface is no more than 15 degrees.
  • Standard dimensions are shown below.

Wall mount hole pattern (mm)

600 × 400
Wall mount screw size

M8

NOTES

  • The diameter and length of the screws differ depending on the wall mount bracket model.
  • Wall mount bracket is optional, your device may not have wall mount bracket, please refer to the actual accessories.

TV Front



NOTES

  • The Picture is Only for Reference.
  • Powering on the TV requires several seconds to load programs. Do not rapidly turn the TV off as it may cause the TV work abnormally.
  • Hands-free Wake-up function and some of its features are only available in limited countries/regions.

TV Rear



NOTES

  • Check the jacks for position and type before making any connections. Loose connections can result in image or color problems. Make sure that all connections are tight and secure.
  • The TV may not be compatible with all external devices. To check compatibility, please refer to the user manual of external device.
  • Do not connect external equipment while TV’s power cord is plugged in. It may cause electric shock.
  • Service jack is not available for you to connect an external device. It can only be used by our factory for testing purposes.

Making Connections

  • ANT Connect an outdoor VHF/UHF antenna or cable.

  • HDMI / AVConnect a HDMI / AV cable from an external AV equipment. No sound connection is needed for HDMI to HDMI connection. If the signal resolution does not match the specification table, you need to change the setting of device according to the table. Please consult your device user manual for instruction.
    • To select the HDMI / AVPress the [INPUT] button, when the list of input Source appears, press the [INPUT] buttons to select the source HDMI / AV, then press the [OK] button to connect.

  • HEADPHONE Connect Headphone for audio out of the TV.

NOTEPlease make sure that the headphone you plug in is without microphone function, or it may not be supported.

  • DIGITAL AUDIO OUT Connect to an external digital audio system.Before connecting a digital audio system to the DIGITAL AUDIO OUT jack, you should decrease the volume of both the TV and the system to avoid that the volume suddenly becomes bigger.

  • eARC/ARC Connect an HDMI cable from an external digital audio system. eARC/ARC enables the TV to directly output the digital sound through an HDMI cable. Please note that it works only when the TV is connected to the audio receiv-er that supports the eARC/ARC (Audio Return Channel) function.When this port is used as the eARC/ARC function, it can’t be used as signal input at the same time.

  • USBConnect the USB1.1 and USB2.0 devices such as hard drives, USB sticks and digital cameras for browsing photos, listening music and watching movies.

NOTESWhen connecting a hard disk or a USB hub, always connect the mains adapter of the connected device to the power supply. If a USB 1.1 or USB2.0 device requires more than 500mA or 5V, the USB device may not be supported. Max supportedcurrent for USB 3.0 device is 1A (only for some models). Exceeding the max supported current may result in damage or data loss.Certain digital cameras may not be compatible with the TV.

  • LAN (Wired setup)Connect your TV to your network by connecting the LAN port on the back of your TV to an external modem or router using a LAN (Ethernet/Cat 5) cable. See the illustration below.
    • We recommend you to use a modem or router that supports Dynamic Host Configuration Protocol (DHCP). Modems and routers that support DHCP automatically provide the IP address, subnet mask, gateway, and DNS, so you don’t have to enter them manually. Most home networks already have DHCP.

Wireless Setup

Connect your TV to your wireless network, you need a wireless router or modem. See the illustration below.

  • The TV’s built-in Wireless LAN Adapter supports the IEEE 802.11 a/b/g/n/ac communication protocols.

NOTES

  • You must use the built-in Wireless LAN Adapter to use a wireless network because the set doesn’t support external USB network adapters.
  • If the wireless router supports DHCP, your TV can connect more easily to the wireless network.
  • If you apply a security system which is not listed below, it will not work with the TV.Security system : WPA, WEP, WPA2.
  • In order to guarantee smooth network, the distance between router and TV should be less than 10 meters.

Remote Control

NOTE: The included remote control will vary depending on model, country/region. Check information according to the actual remote control in the accessory bag.

  • Installing Batteries in the Remote ControlNOTE: Check information according to the actual remote control in the accessory bag.
  1. Press the switch and the battery case will pop up automatically.
  2. Insert two AAA size batteries. Make sure to match the (+) and ( – ) ends of the batteries with the (+) and ( – ) ends indicated in the battery compartment.
  3. Push the battery case back to the remote control.

NOTES

  • Product image is only for reference, actual product may vary in appearance. Dispose of your batteries in a designated disposal area. Do not throw the batteries into fire.
  • Do not mix battery types or combine used batteries with new ones.
  • Remove depleted batteries immediately to prevent battery acid from leaking into the battery compartment.
  • If you do not intend to use the remote control for a long time, remove the batteries.
  • Batteries should not be exposed to excessive heat, such as sunshine, heat registers, or fire.
  • Battery chemicals can cause a rash. If the batteries leak, clean the battery compartment with a cloth. If chemicals touch your skin, wash immediately.

Pairing the Remote Control (only for Bluetooth remote control)

Pair the remote to the TV after you power it on. Keep the remote control within 3 meters from the TV. Press any button (except power and mic button) to pair.

NOTES

  • In special cases, press and hold [ ] button to pair.
  • If an unknown error occurred with the remote, then it could have been caused by interference. Try to remove what’s causing the interference and pair it again.
  • If an unknown error occurred in the remote control while the battery power is normal, you can take out the batteries, press any key for 1~2 seconds, and insert them back. Then the remote control will work normally.
  • The remote cannot be paired to the TV while the TV is in standby mode.

Remote Control Operation Range

  1. The remote control can work at a distance of up to 8 meters in front of the TV set.
  2. The remote control angle: taking the remote sensor as an apex, 6 meters away, its controlled horizontal angle is within ±30°, while the vertical angle is within ±15°.
  3. The operating distance may vary depending on the brightness of the room.

Disposal of This UnitProduct should not be damaged, dismantled or thrown in municipal waste. It should be packed and handed over to authorized re-cycler.

Turning the TV on for the First Time

Turning the TV on for the First Time
  1. Connect the mains cable to the mains socket after you have completed all the connections.
  2. The first time you turn the TV on, it will go straight into the Installation Guide.
  3. Press the [ ^ / < / > ] buttons to navigate the menu and change the settings. Press the [OK] button to confirm.
Select your Language Select your desired language to be displayed on the menu. Press menu button to set up your TV for store mode.
Connect to the Internet If your TV does not automatically detect an Ethernet connection, then use a wireless network, select your network from the list that displays, also you can add a hidden network.
Select your Country

Select the Country where you will operate the TV.
Terms & Conditions, Privacy Policy Your use of this device is subject to the End User License Agreement, and lack of your acceptance of the End User License Agreement will turn off all smart features of this device. Please read the details carefully before you choose.
 Enhanced Viewing Enhanced viewing can automatically adjust the picture mode and sound mode so as to match with the current content displayed  on this device in case it is recognized by the automatic content recognition service.
Sign in your VIDAA Account  Link your TV with VIDAA account.
Name your TV Give your TV a name.
Select your Voice Assistant  Select a voice assistant that you want to use on the TV.

NOTE: The Guide above is for referencing purpose and may differ depending on models/countries/regions.

Specifications

Features, appearance and specifications are subject to change without notice.If you encountered difficulty when setting up your TV, we suggest you refer to the troubleshooting tips in the User Manual or the E-Manual.

Item 75″
Dimension (mm) Without Stand (W × H × D) 1679 × 971 × 74
With Stand (W × H × D) 1679 × 1057 × 424
Weight (kg) Without Stand 35.7
With Stand 36.8
Active Screen Size (Diagonal) (cm) 189
Screen resolution 3840 × 2160
Audio power 15W + 15W
Power consumption Please refer to the rating label.
Power supply 100 – 240V      50/60Hz
Standby Power 0.5W
Receiving systems Analog PAL-D/K, B/G, I SECAM-D/K, B/G
Digital DVB-T/T2, DVB-C
Environmental conditions Temperature: 5°C – 45°C

Humidity: 20% – 80% RH

Atmospheric pressure: 86 kPa – 106 kPa
HDMI Input 60Hz (640×480, 800×600, 1024×768)

60Hz (480i, 480p, 720p, 1080i, 1080p)

50Hz (576i, 576p, 720p, 1080i, 1080p)

24Hz 25Hz 30Hz 50Hz 60Hz (3840×2160)

Other Information

What is Freeview Plus?Freeview Plus is a new television service delivered via broadband providing a state of the art Electronic Program Guide (EPG) and seamless access to catch-up TV across the free-to-air networks with the simple press of a button.

How does it work?First ensure the TV is connected to internet and an antenna system. Then when you’re watching TV, you’ll briefly see a prompt at the top left of the screen. Press the ‘Green’ button on your remote to launch Freeview Plus. More information about Freeview Plus can be found on http://www.freeview.com.au/

NOTEFreeview Plus service only available in Australia territories.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Dolby, Dolby Vision, Dolby Atmos, and the double-D symbol are registered trademarks of Dolby Laboratories Licensing Corporation. Manufactured under license from Dolby Laboratories. Confidential unpublished works. Copyright © 2012-2020 Dolby Laboratories. All rights reserved.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS, DTS-HD Master Audio, DTS-HD, Virtual:X, and the DTS-HD logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.

Manufactured under license from IMAX Corporation. IMAX® is a registered trademark of IMAX Corporation in the United States and/or other countries. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. (for companies headquartered in the U.S./Japan/Taiwan) or under license from DTS Licensing Limited (for all other companies). DTS and the DTS logo are registered trademarks or trademarks of DTS, Inc. in the United States and other countries. © 2020 DTS, Inc. ALL RIGHTS RESERVED.
