HOLLYLAND MARS 400S PRO SDI/HDMI Wireless Video Receiver User Manual

Table of Contents

MARS 400S PROUser ManualV1.0.0

FOREWORD

Thank you for purchasing the Hollyland Mars 400S PRO Wireless HD Video Transmission system. Please kindly read this manual carefully before using it. Hope you have a pleasant experience. KEY FEATURES

400ft Transmission Range between TX and RX(LOS)
300ft Transmission Range between TX and APP(LOS)
Integrated Cold Shoe for Quick Installation
Lowest Transmission Latency 0.08s
SDI Input & HDMI Input at TX
SDI Output & HDMI Output at RX

Supports DC Power Supply, USB Type-C Power Supply, and Battery Power Supply
1 Transmitter Supports 2 Receivers(1 Transmitter Supports 1 Receiver and 2 APPsMonitoring or 1 Transmitter Supports up to 4 APPs Monitoring Without Receiver)
Supports Smart Channel Selection
Supports APP Firmware Upgrade
Direct Data Stream from RX for Live Streaming

PACKING LIST

1 TX WITH 1 RX PACKING

TransmitterReceiverAntennaDC AdapterUser Guide

x1x1x5x1x1

SINGLE RECEIVER PACKING

ReceiverAntennaDC AdapterUser Guide

x1x3x1x1

TYPICAL SETUP

1 TX-1 RX SETUP

1 TX-2 RX SETUP

PRODUCT INTERFACES

(A) TRANSMITTER	(B) RECEIVER
① Antenna Interface	① Antenna Interface
② Fan Air Outlet	② Fan Air Outlet
③SDI Input	③SDI Output
④ OLED Display Screen	④ OLED Display Screen
⑤ UP	⑤ UP
⑥ OK	⑥ OK
⑦ DOWN	⑦ DOWN
⑧ Cold Shoe	⑧ Cold Shoe
⑨ USB Type-C Interface	⑨ USB Type-C Interface
⑩ Power Switch	⑩ Power Switch
⑪ HDMI Input	⑪ HDMI Output
⑫ DC Input	⑫ DC Input

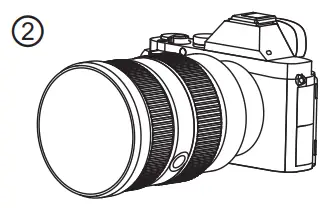

INSTALLATION

Install the antennas as demonstrated.
Secure the cold shoe with a 1/4 screw hole at the bottom of the transmitter and mount it to the camera.
Connect the HDMI input or SDI input of the transmitter with cameras by HDMI or SDI cable.
Connect to a power supply(compatible with NP-970 battery or the same series of batteries).
Turn on the devices.

OLED DISPLAY

(A) TRANSMITTER	(B) RECEIVER
① Device Number	① Device Number
② WIFI Signal Strength	② WIFI Signal Strength
③ Scene Mode	③ Scene Mode
④ USB Flash Detection Indicator	④ USB Flash Detection Indicator
⑤ Device ID	⑤ Device ID
⑥ Channel Display	⑥ Chanel Display
⑦ Video Format	⑦ Video Format
⑧ Fan Status	⑧ Fan Status
⑨ Battery Voltage Display	⑨ Battery Voltage Display

CAUTION

This device supports several power methods, and the device will be charged by the method which has a higher voltage.* The picture on the left shows the symbol of Type-C power supply, the picture on the right shows the symbol of DC power supply.

QUICK GUIDE

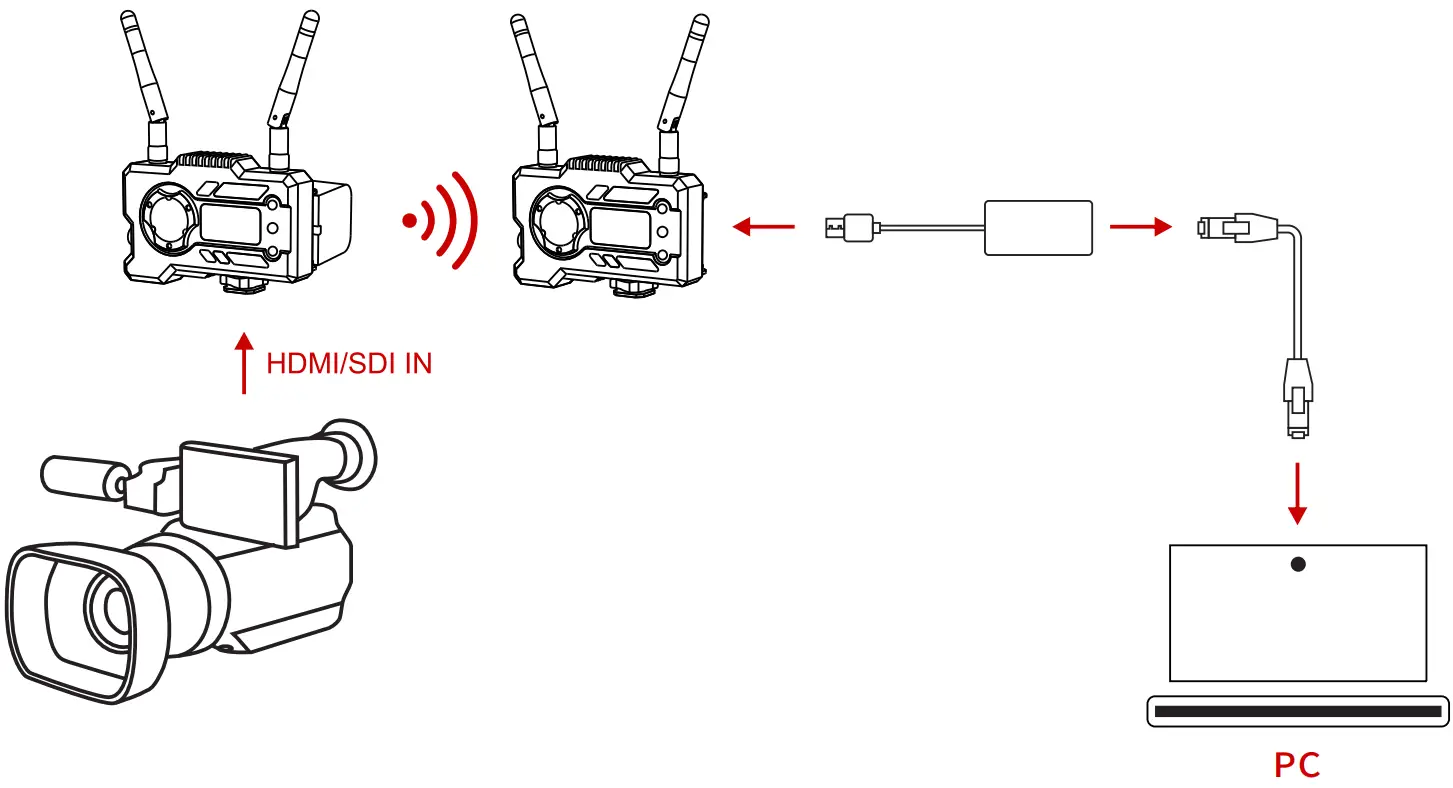

ENTER MENULong press the “OK” button for 3 seconds to enter the root menu interface. Click the “UP” and “DOWN” buttons to switch menu options, click “OK” to confirm. CHANNEL CHANGEPress the button ” UP/DOWN” on the transmitter or the receiver to change the current channel. Press “OK” to confirm the channel number, then the channel of the receiver and the transmitter will be synchronously and automatically changed.PULL STREAM FROM RECEIVER

Confirm there is a video format display on both transmitter and receiver. Use the TypeC to Lan Connector to connect the laptop and RX.
Go to the network settings on the laptop and set it to DHCP mode.
Go to your live stream software, such as VLC Player, OBS Studio, Vmix, etc., and open the network video source via the RTSP URL: rtsp://192.168.218.25:5554.

APP DOWNLOAD AND CONNECTION

“HollyView” APP Downloadhttps://a.app.qq.com/o/simple.jsp?pkgname=com.hollyview&fromcase=40002 https://apps.apple.com/cn/app/hollyview/id1460631425
Connecting Method: Enter the WiFi connection interface of mobile phone and find out the WiFi named as “HLD + DEVICE ID”, and input the WiFi password to connect (Factory Default Password is: 12345678). After a successful connection, you can have the APP monitoring.

PRODUCT PARAMETERS

Transmitter	Receiver
Interfaces	HDMI Input(Type A Female)SDI Inputr Antenna Interfaces (RP-SMA Male) DC InputUSB Type-C	HDMI Output(Type A Female)SDI Output2′ Antenna Interfaces (RP-SMA Male) DC InputUSB Type-C
Supply Interfaces	DC Power Input:6-16VUSB Type-C Power Supply:5V/2A Battery Power Supply:6-16V DC	DC Power Input:6-16VUSB Type-C Power Supply: SV/2A Battery Power Supply:6-16V DC
Power Consumption	<11W	<7W
Weight	206g	206g
Dimension	(UW*H): 110’72’33.5mm (The Battery Plate Exclude)	(L’W’H): 110’72’33.5mm (The Battery Plate Exclude)
Input / Output Video Format	HDMI:480p60576p50720p50/59.94/601080i50/59.94/601080p23.98/24/25/29.9/301080p50/59.94/60 SDI:1080p60/59.94/50(Level A) 1080p60/59.94/50(Level B)1080i60/59.94/501080p30/29.97/25/24/23.98 1080PsF25720p60/59.94/50 1080PsF24/23.98SDI:	HDMI:480p60 576p50 720p50/601080i50/601080p24/25/301080p50/601080p60/50(Level A)1080i60/501080p30/25/24720p60/50 1080i50(1080PsF25/24/23.98input) 1080i60(1080PsF30/29.97input)
Frequency	5GHz	5GHz
Modulation Mode	OFDM	OFDM
Transmission Power	Maximum 21dBm	/
Receiver Sensitive	/	-80dBm
Transmission Latency	0.08s	0.08s
Bandwidth	20MHz	20MHz
