Homedics AF-20 True HEPA Air Cleaner Manual

Table of Contents

Distributed By

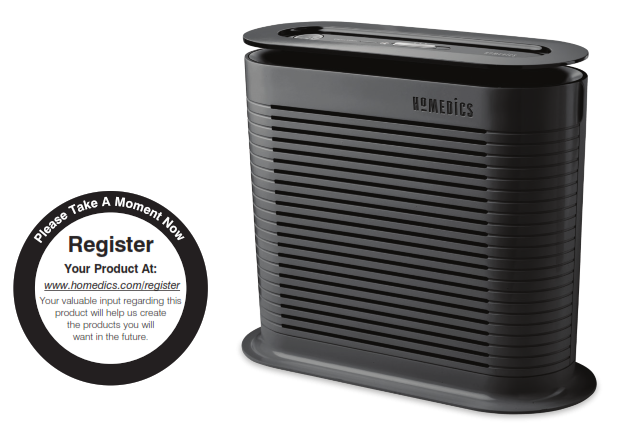

True HEPA Air Cleaner

AF-20

Instruction Manual and Warranty Information

2 Year Limited Warranty

IMPORTANT SAFETY INSTRUCTIONS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULDALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

Always unplug the air cleaner from the electrical outlet immediately after using and before cleaning.
Keep the cord away from heated surfaces.
Always place the air cleaner on a firm, level surface.
Always place the air cleaner at least six (6) inches away from walls and three (3) feet from heat sources such as stoves, radiators, or heaters.
DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
DO NOT place in or drop into water or other liquid.
Keep dry – DO NOT operate in wet or moist conditions.
Check your air cleaner cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

Extreme caution is necessary when any air cleaner is used by or near children orinvalids and whenever the air cleaner is left operating and unattended.
Always unplug the air cleaner when not in use.
Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, or has been dropped or damaged in any manner. Return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.
This air cleaner is not intended for use in the bathroom, laundry areas, and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover the cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from traffic areas where it can be tripped over.
To disconnect the air cleaner, first, turn controls to the OFF position, then remove the plug from the outlet.
Do not tilt or move the air cleaner while it is in operation. Shut off and remove the plug from the outlet before moving.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.
To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use it on any soft surface, like a bed, where openings may become blocked.
Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock,or injury to persons.
DO NOT use outdoors.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.

The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model’s CADR for Dust and the electrical energy it consumes, or CADR/Watt.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE

Technical Specifications

Main Features of the HoMedics True HEPA Air Cleaner

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.

DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

Control Panel

NOTE: The Clean/Reset Filter Indicator MUST be pressed to reset the indicator after you have cleaned and replaced the filter.

Operating Instructions

Turning the Unit On

Take the air cleaner out of the box and remove the clear protective plastic bag.
Place the air cleaner on a firm level surface.
Before turning the air cleaner ON, you need to check that the filter is firmly in place and did not become loose during shipping. You may also choose to install the optional odor-reducing pre-filter.

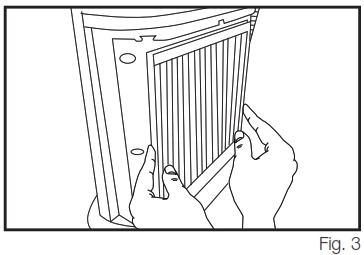

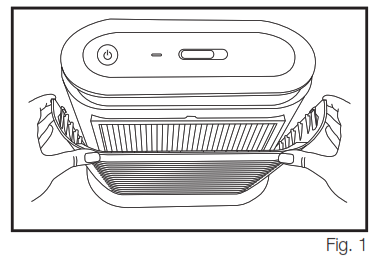

1. To check the True HEPA filter, open the front grill cover by pulling on the tabs on either side of the top of the grill cover. Fig. 12. Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 23. The True HEPA filter will be resting inside the unit. Make sure that the filter is firmly seated inside the unit. Fig. 3

4. Place the tabs at the bottom of the grill cover into the base of the unit. Push the grill cover back into place until you hear a click sound indicating that the grill is firmly latched. Fig. 4

Plug the power cord into a standard AC outlet.

To Install Optional Odor Reducing Pre-Filter

1. Remove optional pre-filter from a plastic bag.2. Remove front grill cover from air cleaner unit. Fig 5-63. Attach pre-filter to adhesive fasteners on the inside of the front grill cover. Press firmly. Fig 74. Replace the front grill cover on the air cleaner unit. Fig 8NOTE: Unit will not operate unless True HEPA filter and grill cover are properly installed.

1. On/Off and Fan Speed Settings

To turn the air cleaner on, press the ON/OFF Control. When the air cleaner is on, the ON/OFF Control will illuminate and the air cleaner will start to operate on LOW speed.
This air cleaner has 3 fan speed settings: LOW, MEDIUM, and HIGH. The higher the fan speed setting, the faster the air will be cleaned. To select or change fan speed, press the FAN SPEED Control until the desired speed is reached. Return to LOW-speed setting by cycling through MED and HIGH settings. Fan speed is indicated by the illuminated bars to the right of the fan speed control.
To turn the air cleaner off, press the ON/OFFControl.

2. TimerSelect timed operation of your air cleaner with the TIMERcontrol. Timed operation up to 12 hours can be selected, in increments of 2 hours. The air cleaner will turn off automatically after the selected timer interval has elapsed. Use the timer setting whenever you wish to maintain air quality over a given time period (up to 12 hours), but do not wish to leave your air cleaner running continuously.

To select timed operation, press the TIMERControl until desired timer setting is reached. Return to 2-hour timer setting by cycling through 12-hour setting. The timer interval selected is indicated by the illuminated time interval to the right of the timer control. To deselect timed operation, cycle through all timer settings until no timer interval is illuminated.

3. Using the Remote ControlBattery InstallationOne CR2032 3V battery is included with the remote control. To activate the remote control, pull out the plastic pull tab protruding from the remote control housing. To change the battery, remove the battery door on the bottom of the remote by sliding

the tab and pulling the door away from the back of the remote. Insert the battery into the remote with the + symbol facing up as shown on the drawer.

NOTE: Always keep the battery and remote control out of the reach of children and pets.

4. Clean Filter Indicator ButtonThis air cleaner is equipped with a CLEAN FILTER indicator button to let you know when the True HEPA filter requires cleaning. Generally, this is every 480 hours of use. When the True HEPA filter requires cleaning, the CLEAN FILTER indicator button on the control panel will illuminate. If the air cleaner is used daily, we recommend cleaning the True HEPA filter more frequently.

Replacing True HEPA FilterWith regular cleaning, the life of the True HEPA filter is approximately 12-18 months under typical household usage and conditions. We recommend replacing your filter every year. To purchase replacement True HEPA filters, model # AF-20FL, go back to your retailer (where you purchased your air cleaner) or visit www.homedics.com.After cleaning or replacing the True HEPA filter, be sure to reset the filter indicator by pressing the CLEAN/RESET FILTER INDICATOR BUTTON for several seconds until an audible chime sounds and the light turns off.

Cleaning the True HEPA FilterMake sure that the air cleaner is turned OFF and unplugged from the outlet before cleaning.

Open the front grill cover by pulling on the tabs on either side of the top of the grill cover. Fig. 5

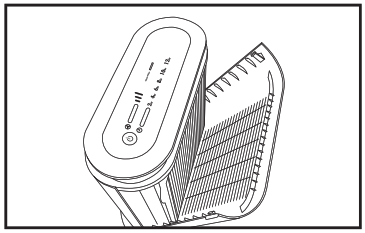

Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 6

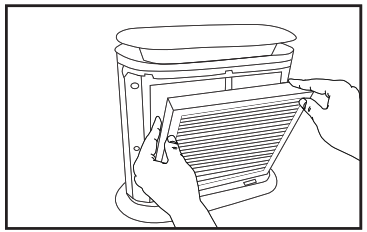

Remove the True HEPA filter from the main unit. Fig. 7
Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the True HEPA filter, cleaning thoroughly between the accordion folds of the filter. Fig. 8
Place the clean True HEPA filter back in the air cleaner in the direction indicated by the arrows on the sides of the filter. Make sure the filter is firmly seated inside the unit. Fig. 9
Place the tabs at the bottom of the grill cover into the base of the unit. Push the grill cover back into place until you hear a click sound indicating that the grill cover is firmly latched. Fig. 10

Cleaning and Maintenance

For best performance, we recommend:

Vacuum the True HEPA filter and pre-filter using the brush attachment of your vacuum cleaner once a month.
NEVER use water or any household cleaners or detergents to clean the True HEPA filter or pre-filter.
Clean off the outside of the unit with a dry cloth once a month.
NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit.
Clean off the grill cover using a damp cloth or the brush attachment of your vacuum once a month.
NEVER use wax, polish, or any chemical solution to clean the grill cover.
Replace the True HEPA filter every 12-18 months.

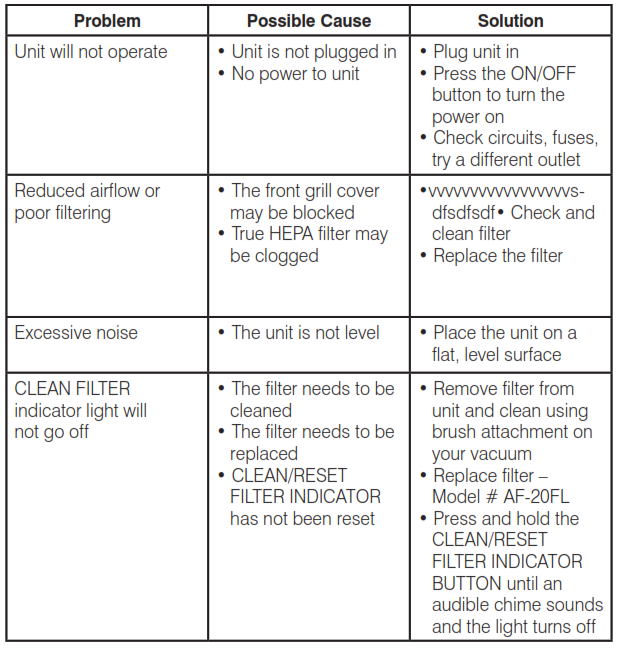

Troubleshooting

LIMITED TWO YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of two years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.No COD’s will be accepted.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from a failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved, and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged, and/or resealed products, including but not limited to the sale of such products on Internet auction sites and/ or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.

This warranty provides you with specific legal rights. You may have additional rights that may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit: www.homedics.com

Distributed By

e-mail: Monday-Friday8:30 am – 7:00 pm (EST)1-800-466-3342
