Homedics Destress Spa Recliner – AG-3501CBNTL, AG-3501BRGTL, AG-3501TL

A NOTE FROM TONY LITTLE

My commitment is to you the customer and always will be. I will always do my best to bring you innovative, useful, quality of life enhancing products that cover all categories of health fitness and wellness.

Enjoy life, Believe in Yourself and Always Go For It!







IMPORTANT SAFEGUARDS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:

READ ALL INSTRUCTIONS BEFORE USING

DANGER– TO REDUCE THE RISK OF ELECTRIC SHOCK:

  • ALWAYS unplug the appliance from the electrical outlet immediately after using andbefore cleaning.
  • DO NOT reach for an appliance that has fallen into water. Unplug it immediately.WARNING – TO REDUCE THE RISK OF BURNS, ELECTRIC SHOCK, FIRE OR INJURY TO PERSONS:
  • An appliance should never be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts or attachments.
  • Close supervision is necessary when this appliance is used by, on or near children or disabled persons.
  • Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by HoMedics; specifically any attachments not provided with the unit.
  • NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water. Return it to HoMedics Service Center for examination and repair.
  • Keep cord away from heated surfaces.
  • NEVER drop or insert any object into any opening.
  • DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
  • DO NOT operate under a blanket or pillow. Excessive heating can occur and cause fire, electrocution or injury to persons.
  • DO NOT carry this appliance by supply cord or use cord as handle.
  • To disconnect, turn all controls to the “OFF” position, then remove plug from outlet.
  • NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
  • Use heated surfaces carefully. May cause serious burns. Do not use over insensitive skin areas or in the presence of poor circulation. The unattended use of heat by children or incapacitated persons may be dangerous.

Please Note: Hands and fingers should rest comfortably on top of arm rests. When moving the recliner between resting positions, fingers can be pinched if placed into the areas of the leg noted on the yellow caution sticker. (See yellow caution sticker on recliner legs.)



SAVE THESE INSTRUCTIONS

Caution—Please read all instructions carefully before operating.

  • This product is not intended for medical use. It is intended only to provide a luxurious massage.
  • Consult your doctor prior to using this product, if– You are pregnant– You have a pacemaker– You have any concerns regarding your health
  • Not recommended for use by diabetics.
  • NEVER leave the appliance unattended, especially if children are present.
  • NEVER cover the appliance when it is in operation.
  • DO NOT use this product for more than 60 minutes at a time.
  • Extensive use could lead to the products excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
  • NEVER use this product directly on swollen or inflamed areas or skin eruptions.
  • DO NOT use this product as a substitute for medical attention.
  • DO NOT use this product before bed. The massage has a stimulating effect and can delay sleep.
  • This product should NEVER be used by any individual suffering from any physical ailment that would limit the user’s capacity to operate the controls.
  • This product should never be used by any individual suffering from any ailments that would limit or altogether inhibit the user’s capacity to feel or have any sensation in the body part that the product is being used on.
  • This unit should not be used by children or invalids without adult supervision.

Important Notice:If you experience any type of distortion or interference to radio or television reception when turning the unit to the ON position, immediately turn the unit off. Wait a few seconds before turning the unit on and distortion/interference should be eliminated.



Assembly Instructions

  1. Carefully remove all contents from the packaging and inspect the product to make sure all components of the recliner are present.

These should include (figure 1):

  • Right side armrest with hand control pocket (A)
  • Left side armrest (B)
  • Crossbars (C) & (D)
  • Cup holder (E)
  • Back and leg frames with attached slip covers (F) (G)
  • Small nuts and washers (8) (H)
  • Large bolts (8) (I)
  • Allen wrench (J1)
  • Open end wrench (J2)
  • Massage mat with attached hand control (K)
  • Detachable headrest (L)
  • AC adaptor (M)

2. Assemble Chair Base:

  • Attach both crossbars (figure 2) to the right hand armrest, matching corresponding numbers, and insert large bolts. Tighten partially with Allen wrench.
  • Attach both crossbars to left side armrest, matching the corresponding letters, and insert large bolts (figure 3). Tighten partially with the Allen wrench. Stand base upright.

3. Attach Back Frame to Base:

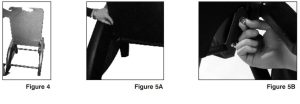

  • Slide the back of the chair into the frame with the straps facing the chair (figure 4).
  • Align the back by inserting the large bolts into the frame.
  • Place a washer and nut over each bolt to secure the Back Frame to the Chair Base. Use open end wrench to tighten partially (figures 5A and 5B).

4. Attach Seat/Leg Frame to Base:

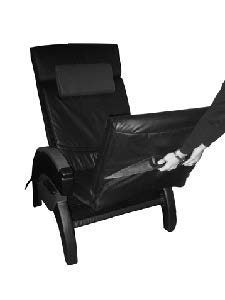

  • Flip the chair on its back and slide the seat in place. Place into frame with the straps facing the back of the chair (figure 6).

Figure 6

  • Align the seat by inserting large bolts into the frame.
  • Place washer and nut over each bolt to secure the Seat Frame to the Chair Base. Use open end wrench to tighten partially (figure 7).

Figure 7

  • Stand chair upright and adjust so the base is level. Completely tighten all nuts and bolts now (figure 8).

Figure 8

5. Add Massage Cushion:

  • Slide the top pocket of the massage cushion over the top of the back frame (figure 9).

Figure 9

  • Slide the bottom pocket over the foot frame by lifting up the footrest (figure 10).

Figure 10

  • Smooth down the massage cushion and make it flush with the frame (figure 11).

Figure 11

  • The pillow can be repositioned or completely removed by adjusting the strap on the back of the chair (figure 12).

Figure 12

6. Finishing Details:

  • Remove all letter and number stickers.

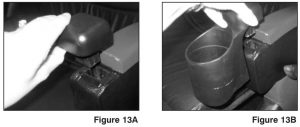

  • To add the cup holder, remove the T-block cover and insert the cup holder into either armrest (figures 13A and 13B).
  • Feed the power and hand control cord through the back of the frame. Be sure the cords are not twisted.
  • Attach the power cord to the adaptor and store the hand control in the pocket on the right side.



Instructions for Inversion Massage Recliner Use

Your Inversion Massage recliner is designed to provide relaxation in a variety of positions utilizing the easy lock levers on each side of the armrests. The ideal position for optimum relaxation is one in which the feet are above the heart.

NOTE: The Inversion Massage recliner design has a weight limit of 300 pounds. Persons exceeding this body weight should not use this recliner.

  • Before sitting in the Inversion Massage recliner, be sure it is in the complete upright position by unlocking the levers and pulling the backrest forward until it stops.
  • Lock the recliner into the upright position by pulling the levers back towards your head.
  • Sit in the chair, unlock levers by pushing forward and lean back slowly. Sitting all the way back in the seat will make it easier to recline. To adjust the angle of the chair, hold on to the armrests and lean back or forward until you reach the desired position. Lock the position into place by pulling the levers back towards your head.
  • The footrest may be raised by pulling it upward. Each position will sound with a click. To lower the footrest, raise it until it stops and then push it back towards the floor.
  • Before getting out of the Inversion Massage recliner, be sure to return it to its full upright position and lock into place.
  • Stand up using the armrests for support.

Tip: To help you recline, slowly raise your hands above your head and lean back. Lock in your desired position with the easy lock levers. To sit upright, unlock the levers and move hands slowly towards your knees while leaning slightly forward. This will bring the recliner back to its full upright position.

Power Adaptor InstructionsConnect the adaptor jack to the massage cushion’s power receptacle located along the right side of the cushion. Once inserted, plug the other end into an AC power outlet. Use only the AC power adaptor provided with this unit.

AC Power Adaptor InformationYour massage cushion is powered by an attached custom AC home adaptor. Use only the supplied AC home adaptor as other similar-looking adaptors may cause irreparable damage to the unit and will void your warranty.

Note:Heat only works with massage function activated

Automatic Shut Off

The Inversion Massage recliner has been designed for convenience and safety. As a special precaution against falling asleep while using the unit, or leaving the unit on while it is still in operation, we’ve programmed it to automatically stop working 60 minutes after receiving your last command. Any time you change massage functions, the timer will reset. This special feature should not be considered as a substitute for OFF. Always remember to turn your unit off when not in use.

Please Note:For added protection of your unit: When the heat is left on it will automatically shut off after 15 minutes.



Maintenance

To Store: Place the hand control into the custom storage pocketon the right side of chair. Avoid contact with sharp edges or pointed objects which might damage/puncture the fabric.To Clean: Disconnect massage cushion from power source before cleaning. The massage cushion and hand control may be cleaned with a soft, damp cloth only.

  • The massage cushion is not machine washable and must not come into contact with water or any other liquids.
  • Do not immerse into liquids to clean.
  • Never use abrasive cleaners, brushes, gasoline, kerosene, polish or paint thinner to clean.
  • Do not attempt to repair your Inversion Massage recliner. There are no user serviceable parts. For service, send the unit to the HoMedics service address listed in the warranty section.

Frame: Periodically, the frame should be checked to ensure the screws are tight. If the frame is found to be loose, tighten screws with the tools provided.

The Inversion Massage recliner and massage cushion are designed for indoor applications only. Use of this product for outdoor applications may cause irreparable damage and void your warranty.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.
  • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Consult the dealer or an experienced radio/TV technician for help.



LIMITED TWO YEAR WARRANTY

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of two years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your HoMedics product, mail the product and your dated sales receipt (as proof of purchase), postpaid, to the following address:

HoMedics Service CenterDept. 168, Suite 343155 West Nine Mile RdNovi, MI 48375No COD’s will be accepted.

HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer’s recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.This warranty provides you with specific legal rights. You may have additional rights which may vary from country to country. Because of individual country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit: www.homedics.com

HoMedics Service Center1.800.466.33428:30am – 7:00pm (EST ) M – F

Mail To:HoMedics Service CenterDept. 168, Suite 343155 West Nine Mile RdNovi, MI 48375Email: [email protected]

©2008-2010 HoMedics, Inc. and its affiliated companies, all rights reserved.HoMedics® is a registered trademark of HoMedics Inc. and its affiliated companies.All rights reserved. America’s Personal Trainer® and Destress® are registered trademarksof Health International Corporation. IB-AG3501TL
