AR-NC02
Instruction Manual and Warranty Information
2 Year Limited Warranty
IMPORTANT SAFETY INSTRUCTIONS:
WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USINGDANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:
- Always unplug the air cleaner from the electrical outlet immediately after using and before cleaning.
- Keep cord away from heated surfaces
- Always place the air cleaner on a firm, level surface.
- Always place the air cleaner at least twelve (12) inches away from walls and three (3) feet from heat sources such as stoves, radiators, or heaters.
- DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
- DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
- DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
- DO NOT place in or drop into water or other liquid.
- Keep dry – DO NOT operate in a wet or moist condition.
- Check your air cleaner cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tight in the outlet.
WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK OR INJURY TO PERSONS:
- Extreme caution is necessary when any air cleaner is used by or near children or invalids and whenever the air cleaner is left operating and unattended.
- Always unplug the air cleaner when not in use.
- Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, has been dropped or damaged in any manner. Return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.
- This air cleaner is not intended for use in bathroom, laundry areas and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.
- Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
- To disconnect the air cleaner, first turn controls to the OFF position, then remove plug from outlet.
- Do not tilt or move the air cleaner while it is in operation. Shut off and remove plug from the outlet before moving.
- Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.
- To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
- Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
- DO NOT use outdoors.
SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE
This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR-qualified model is measured based on a ratio between the model’s CADR for Dust and the electrical energy it consumes, or CADR/Watt.
Grounding Instructions
To reduce the risk of electric shock, this product has a grounding type plug that has a third (grounding) pin (Fig. 1). This plug will only fit into a grounding type power outlet. If the plug does not fit into the outlet, contact qualified personnel to install the proper outlet. Do not alter the plug in any way. If your home is not equipped with a grounded outlet, you may use a temporary adapter (Fig. 2). The tab for grounding screw extending from the temporary adapter must be connected to a permanent ground such as a properly grounded outlet box cover and it must be held in place by a metal screw (Fig. 3). The temporary adapter should be used only until a properly grounded outlet (Fig. 4) can be installed by a qualified electrician.
SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE

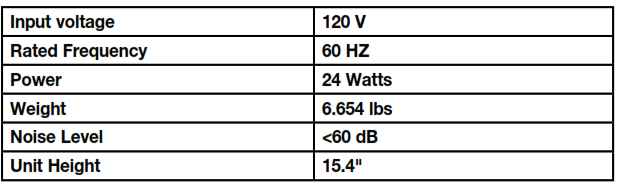

Technical Specifications

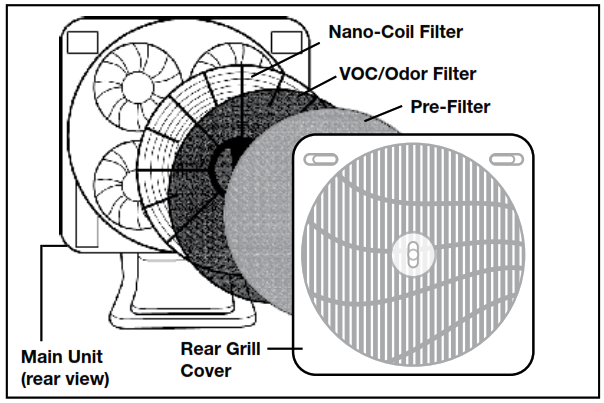

Main Features on The HoMedics Brethe Air Cleaner
Pre-Filter: Captures large particles and fibersNano-Coil Filter: Cleanable spiral filter that captures charged air contaminantsVOC/Odor Filter: (optional) Removes VOC (Volatile Organic Compounds)
Operating Instructions
Getting Started• Take the air cleaner out of the box and remove the clear protective plastic bag.• Place the air cleaner on a firm level surface.• BEFORE TURNING ON THE AIR CLEANER, if you choose to use the optional VOC filter, you will need to install it and confirm that all the filters are firmly in place.

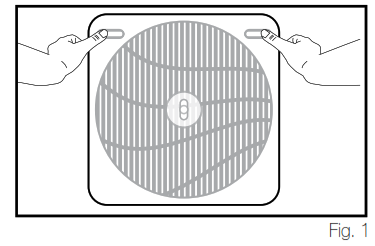

1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 1

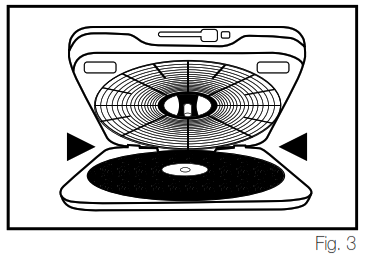

2. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 2 & 3
3. The pre-filter and Nano-Coil filter will be installed already. Confirm that the Nano-Coil filter is fully engaged on the center hub. To install the VOC/Odor filter (optional), remove the VOC/Odor filter from the plastic bag. Place the VOC filter into the unit flush against the pre-filter, secured by four clips. See Fig. 4
4. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 5
5. Hold engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit. The release tabs at the top of the grill will click back into place. See Fig. 6

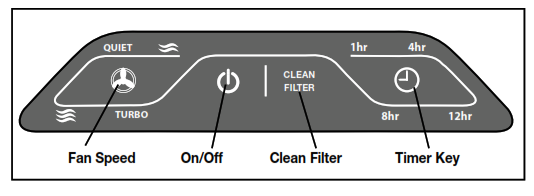

Control Panel
NOTE: Unit will not operate unless Nano-Coil, pre-filter and grill are properly installed.
Operating Instructions1. On/Off and Speed Settings1. To turn the air cleaner on, press the ON/OFF
button. When the air cleaner is on, the LED light will be lit and the air cleaner will start to operate on LOW
speed.2. There are four-speed settings: Quiet
(low)
(medium) TURBO. Quiet mode is whisper-quiet – below normal room noise – and is recommended particularly for night use and uninterrupted sleep. TURBO mode gives a cleaning power boost. When the fan is set at TURBO, it will run for 30 minutes and then return to (low) speed.3. To turn the air cleaner OFF, simply press the ON/OFFagain.
2. Timer Settings
There are four possible timer settings: 1 (one) hour, 4 (four) hours, 8 (eight) hours, and 12 (twelve) hours. To activate the timer, press the
on the control panel. Each time it is pressed, it will advance to the next timer setting. The timer LED will be illuminated while the timer function is on. Cycle through 1, 4, 8, 12, then off to operate the unit without the timer feature.
Filter Cleaning and Maintenance
Make sure the air cleaner is turned off and unplugged from the outlet before cleaning. Check the filters every 30 days to see if they need cleaning. If you use your air cleaner daily, we recommend checking the filters more frequently.
Nano-Coil Filter

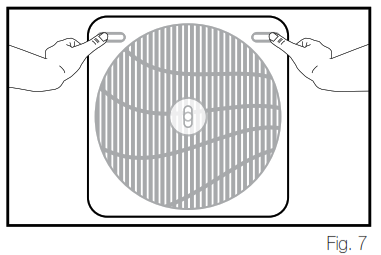

1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 7

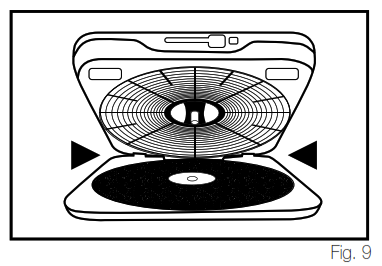

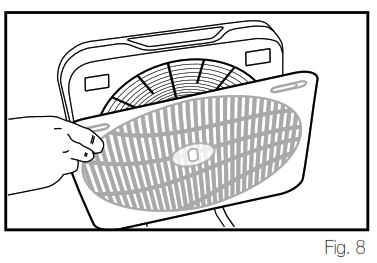

2. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 8 & 9
3. Remove the Nano-Coil filter from the unit by grasping the center handle and pulling out from the center hub. See Fig. 10
4. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the Nano-Coil filter, taking care not to dislodge the combs. See Fig. 11
5. Replace the Nano-Coil filter. Make sure to align the center of the filter handle with the center hub. Filter handle should be vertical. Be sure the post on the center hub comes through the hole on the filter’s handle. See Fig. 10

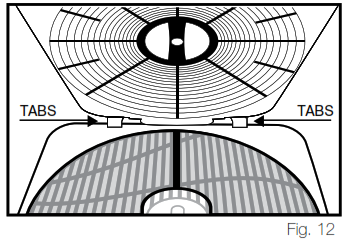

6. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 12
7. Hold the engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit until the release tabs at the top of the grill click back into place. See Fig. 13
DO NOT USE WATER OR ANY HOUSEHOLD CLEANERS OR DETERGENTS TO CLEAN THE NANO-COIL FILTER OR PRE-FILTER
Pre-Filter
1. Open the rear grill by gently pushing the release tabs toward the outside of the unit. See Fig. 14
2. Pull the grill away from the body until the tabs at the bottom of the grill plate easily slide away from the unit. See Fig. 15 & 16
3. If you are using the VOC filter, remove it by sliding out of the 4 clips. See Fig. 17
4. Remove the pre-filter by gently pulling it off and away from the 4 posts. See Fig. 18
5. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the pre-filter. See Fig. 11
6. Replace the pre-filter by pushing the 4 loops of the filter onto the 4 posts of the grill. See Fig. 18
7. If you are using the VOC filter, put it back in and secure with 4 clips. See Fig. 17
8. Place the tabs at the bottom of the grill plate into the base of the unit. See Fig. 19
9. Hold the engaged bottom of the grill plate in place and push the top of the grill plate back toward the unit until the release tabs at the top of the grill click back into place. See Fig. 20
Clean Filter Indicator
This air cleaner is equipped with a CLEAN FILTER indicator to let you know when it is time to clean the Nano-Coil filter, about every 732 hours of use. When the NanoCoil filter is ready to be cleaned, the CLEAN FILTER indicator will light up on the control panel.
Once the Nano-Coil filter has been cleaned, press and hold the CLEAN FILTER button until it beeps to reset the filter indicator.
We recommend replacing your VOC filter if you choose to use it when you replace your Nano-Coil filter (about every 18 months, with regular maintenance).
To purchase a Nano-Coil replacement filter, model # AR-NCFL1, go back to the retailer (where you purchased your air cleaner) or visit www.homedics.com. Replacement VOC filter, model # PP-ARNC01VOC, can also be purchased at www.homedics.com.
Cleaning and MaintenanceWe recommend that the air cleaner be cleaned at least once a month and before storage.1. Turn the air cleaner OFF and unplug it from the outlet2. Use a dry cloth to clean the external surfaces of the air cleaner3. The grill plate may be cleaned with a damp cloth or the brush attachment of your vacuum cleaner.DO NOT USE WATER, WAX, POLISH, OR ANY CHEMICAL SOLUTION
Troubleshooting
Limited Two Year Warranty
HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of two years from the date of original purchase, except as notedbelow. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.
To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.
HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.
This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved, and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.
THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.
This warranty does not extend to the purchase of opened, used, repaired, repackaged, and/or resealed products, including but not limited to the sale of such products on Internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.
This warranty provides you with specific legal rights. You may have additional rights that may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.
For more information regarding our product line in the USA, please visit: www.homedics.com
1.800.466.33428:30a.m. – 7:00p.m. (EST)M – Fe-mail:
HoMedics® and brethe® are registered trademarks of HoMedics, LLC.© 2014 HoMedics, LLC. All rights reserved.IB-ARNC02
