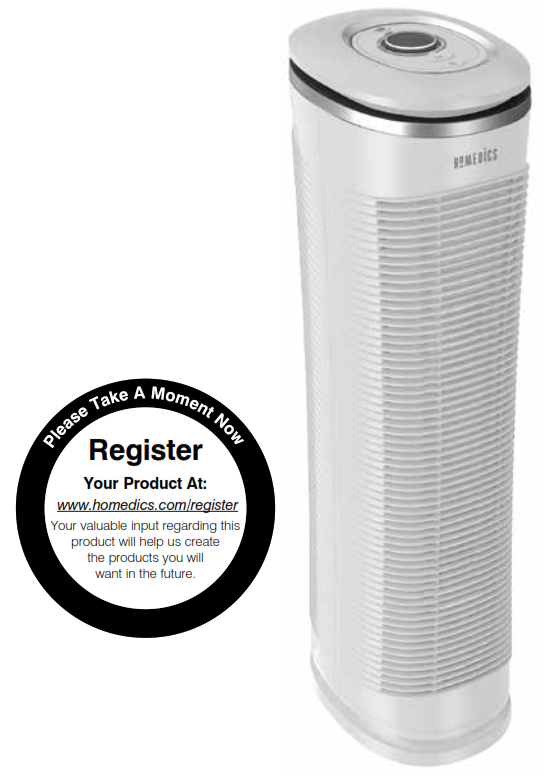

Total Clean Tower Air Cleaner
AR-15
Instruction Manual and Warranty Information
2 Year Limited Warranty
IMPORTANT SAFETY INSTRUCTIONS:
WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:
READ ALL INSTRUCTIONS BEFORE USING
DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:
• Always unplug the air cleaner from the electrical outlet immediately after using and before cleaning.• Keep the cord away from heated surfaces.• Always place the air cleaner on a firm, level surface.• Always place the air cleaner at least six (6) inches away from walls and three (3) feet from heat sources such as stoves, radiators, or heaters.• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.• DO NOT reach for an appliance that has fallen into the water. Unplug it immediately.• DO NOT place or store an appliance where it can fall or be pulled into a tub or sink.• DO NOT place in or drop into water or other liquid.• Keep dry – DO NOT operate in a wet or moist condition.• Check your air cleaner cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.
WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:
• Extreme caution is necessary when any air cleaner is used by or near children or invalids and whenever the air cleaner is left operating and unattended.• Always unplug the air cleaner when not in use.• Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, has been dropped, or damaged in any manner. Return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.• This air cleaner is not intended for use in the bathroom, laundry areas, and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route the cord under furniture or appliances. Arrange the cord away from traffic areas where it can be tripped over.• To disconnect the air cleaner, first, turn controls to the OFF position, then remove the plug from the outlet.• Do not tilt or move the air cleaner while it is in operation. Shut off and remove the plug from the outlet before moving.• Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.• To prevent a possible fire, do not block air intake or exhaust in any manner. Do not use it on a soft surfaces, like a bed, where openings may become blocked.• Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.• DO NOT use outdoors.
This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model’s CADR for Dust and the electrical energy it consumes, or CADR/Watt.
SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE
Technical Specifications

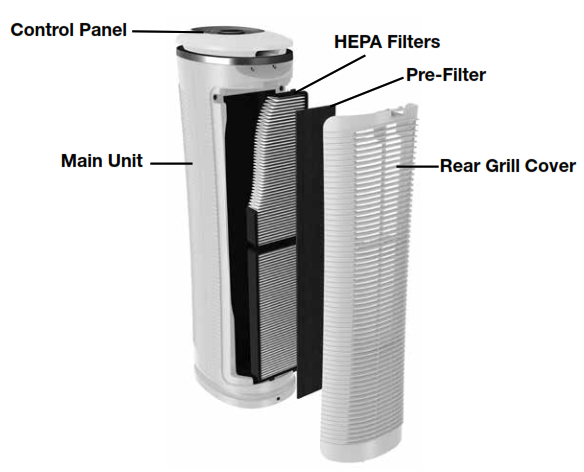

Main Features of the HoMedics Tower Air Cleaner
NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

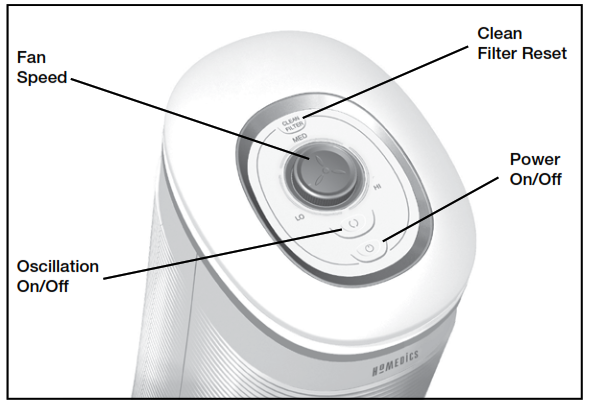

Control Panel
Operating Instructions
Turning the Unit On
• Take the air cleaner out of the box and remove the clear protective plastic bag.• Place the air cleaner on a firm level surface.• Before turning the air cleaner ON, you need to confirm that the filters are firmly in place and did not become loose during shipping.
1. To check filters, open the rear grill cover by gently pushing down on the release tab on the top of the rear grill. Fig. 1
2. Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 2
3. The HEPA filters will be resting inside the unit. Make sure that the filters are firmly seated inside of the unit. Fig. 3
4. Place the tabs at the bottom of the grill cover into the base of the unit. Gently push the grill cover plate back into place until you hear a click sound indicating that the grill cover is firmly latched. Fig. 4Connect the power cord into a standard AC outlet.
NOTE: Unit will not operate unless filters and grill are properly installed.
1. On/Off and Speed Settings
- To turn the air cleaner on, press the ON/OFF
button on the control panel. When the air cleaner is turned on, the ON/OFF button on the control panel will illuminate and the air cleaner will start to operate on LOW speed. LOW is the default speed setting when the air cleaner is turned on for the first time. Upon restarting the air cleaner, fan speed will revert to the speed selected prior to turning the unit off. - Once the air cleaner is on, turn the dial clockwise until the MED setting illuminates to increase the fan speed to MED. Turn clockwise once more to increase the fan speed to HIGH setting. The fan speed dial turns continously in either direction to adjust the fan speed. The dial surround illuminates to indicate the fan speed setting.
- To turn the air cleaner OFF, simply press the ON/OFF button on the control panel.
button on the control panel. When the air cleaner is turned on, the ON/OFF button on the control panel will illuminate and the air cleaner will start to operate on LOW speed. LOW is the default speed setting when the air cleaner is turned on for the first time. Upon restarting the air cleaner, fan speed will revert to the speed selected prior to turning the unit off.2. OscillationTo activate the oscillation, press the
button. To stop oscillation, press the button a second time. Unit will not automatically realign with foot when oscillation is stopped. To achieve alignment, stop oscillation at the moment when the body becomes aligned with the foot.
Cleaning the HEPA FiltersMake sure that the air cleaner is turned OFF and unplugged from the outlet before cleaning.
1. Open the rear grill cover by gently pushing down on the tab on the top of the grill cover. Fig. 5

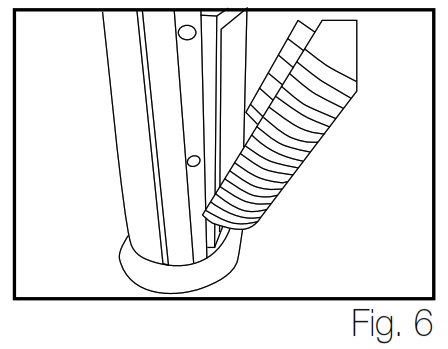

2. Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 6

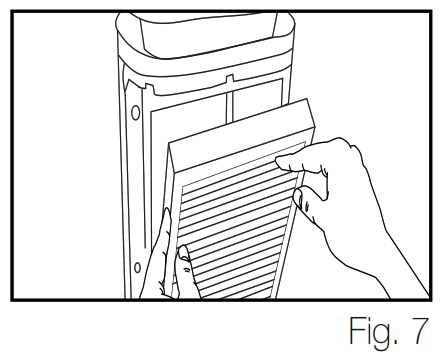

3. Remove the HEPA filters from the main unit. Fig. 7
Note: There are two HEPA filters in this air cleaner.

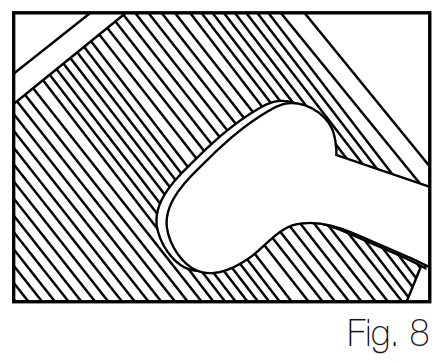

4. Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the HEPA filters, cleaning thoroughly between the accordion folds of the filters. Fig. 8
5. Place the clean HEPA filters back in the main unit, making sure they are firmly seated inside the unit. Fig. 9
6. Place the tabs at the bottom of the grill cover into the base of the unit. Gently push the grill cover back into place until you hear a click sound indicating that the grill cover is firmly latched. Fig. 10
DO NOT USE WATER OR ANY HOUSEHOLD CLEANERS OR DETERGENTS TO CLEAN THE HEPA FILTERS.
Replacing HEPA FiltersWith regular cleaning, the life of the HEPA filters is approximately 12-18 months under typical household usage and conditions. We recommend replacing your filters every year. To purchase the replacement HEPA filters, model # AR-OTFL, go back to your retailer (where you purchased your air cleaner), or visit www.homedics.com.
After cleaning or replacing your HEPA filters, be sure to reset the filter indicator by pressing the CLEAN/RESET filter indicator button for several seconds until an audible chime sounds and the light turns off.
Cleaning and Maintenance
For best performance, we recommend:• Vacuum the HEPA filter using the brush attachment of your vacuum cleaner once a month• NEVER use water or any household cleaners or detergents to clean the HEPA filter• Clean off the outside of the unit with a dry cloth once a month• NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit• Clean off the grill cover using a damp cloth or the brush attachment of your vacuum once a month• NEVER use wax, polish, or any chemical solution to clean the grill cover.• Replace the HEPA filter every 12-18 months• If you will not be using the air cleaner for an extended period of time, please store in the box, or a cool, dry place.
Troubleshooting
Limited Two Year Warranty
HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of two years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.
To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.
No COD’s will be accepted.
HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/ power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.
This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved, and/ or authorized, or repair of products damaged by these modifications is not covered under this warranty.
THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.
This warranty does not extend to the purchase of opened, used, repaired, repackaged, and/or resealed products, including but not limited to sale of such products on Internet auction sites and or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.
This warranty provides you with specific legal rights. You may have additional rights that may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.
For more information regarding our product line in the USA, please visit: www.homedics.com
Distributed By
e-mail: Monday – Friday8:30 am – 7:00 pm (EST)1-800-466-3342
HoMedics® is a registered trademark of HoMedics, LLC.©2012-2014 HoMedics, LLC. All rights reserved.IB-AR15A
