Homedics Total Clean UV-C Tower Air Cleaner Manual AR-35

Table of Contents

Homedics Total Clean UV-C Tower Air Cleaner AR-35

IMPORTANT SAFETY INSTRUCTIONS:

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING THE FOLLOWING:READ ALL INSTRUCTIONS BEFORE USING

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

Always unplug the air cleaner from the electrical outlet immediately after using and before cleaning.
Keep cord away from heated surfaces.
Always place the air cleaner on a firm, level surface.
Always place the air cleaner at least six (6) inches away from walls and three (3) feet from heat sources such as stoves, radiators, or heaters.
DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
DO NOT reach for an appliance that has fallen into water. Unplug it immediately.
DO NOT place or store appliance where it can fall or be pulled into a tub or sink.
DO NOT place in or drop into water or other liquid.
Keep dry – DO NOT operate in a wet or moist conditions.
Check your air cleaner cord and plug connections. Faulty wall outlet connections or loose plugs can cause the outlet or plug to overheat. Be sure the plug fits tightly in the outlet.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE,

ELECTRIC SHOCK OR INJURY TO PERSONS:

Extreme caution is necessary when any air cleaner is used by or near children or invalids and whenever the air cleaner is left operating and unattended.
Always unplug the air cleaner when not in use.
Do not operate the air cleaner with a damaged cord or plug, or after the air cleaner malfunctions, has been dropped or damaged in any manner. Return to HoMedics Consumer Relations for examination, electrical or mechanical adjustment, or repair.
This air cleaner is not intended for use in bathroom, laundry areas and similar moist indoor locations. Never locate air cleaner where it may fall into a bathtub or other water container.
Do not run cord under carpeting. Do not cover cord with throw rugs, runners or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic areas where it can be tripped over.
To disconnect the air cleaner, first turn controls to the OFF position, then remove plug from outlet.
Do not tilt or move the air cleaner while it is in operation. Shut off and remove plug from outlet before moving.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause an electric shock or fire, or damage the air cleaner.
To prevent a possible fire, do not block air intakes or exhaust in any manner. Do not use on soft surface, like a bed, where openings may become blocked.
Use this air cleaner only for its intended use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons.
DO NOT use outdoors.

This product earned the ENERGY STAR by meeting strict energy efficiency guidelines set by the US EPA. US EPA does not endorse any manufacturer claims of healthier indoor air from the use of this product.The energy efficiency of this ENERGY STAR qualified model is measured based on a ratio between the model’s CADR for Dust and the electrical energy it consumes, or CADR/Watt.

SAVE THESE IMPORTANT INSTRUCTIONS FOR EASY REFERENCE

Input voltage: 120 VRated Frequency: 60 HZPower: 65 WattsWeight: 12.5 lbsNoise Level: <60 dBUnit Height: 28″

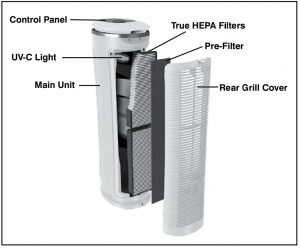

Main Features of the HoMedics Tower Air Cleaner

Technical Specifications

NOTE: This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of shock, this plug is intended to fit only one way in a polarized outlet. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician.DO NOT attempt to defeat this safety feature. To do so could result in an electric shock hazard.

Control Panel

Operating Instructions

Turning the Unit On

Take the air cleaner out of the box and remove the clear protective plastic bag.
Place the air cleaner on a firm level surface.
Before turning the air cleaner ON, you need to confirm that the filters are firmly in place and did not become loose during shipping.

To check filters, open the rear cover by gently pushing down on therelease tab on the top of the rear grill cover. Fig. 1Fig. 1

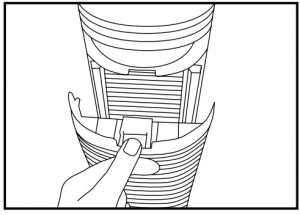

Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 2Fig. 2

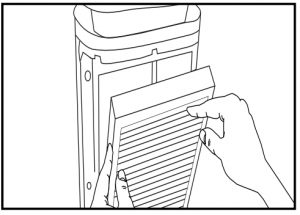

The True HEPA filters will be resting inside the unit. Make sure that the filters are firmly seated inside of the unit. Fig. 3Fig.3
Place the tabs at the bottom of the grill cover into the base of the unit.Gently push the grill cover back into place until you hear a click sound indicating that the grill cover is firmly latched. Fig. 4Fig.4Connect the power cord into a standard AC outlet.

NOTE: Unit will not operate unless filters and grill are properly installed.

On/Off and Speed Settings* To turn the air cleaner on, press the ON/OFF button on the control panel.When the air cleaner is on, the ON/OFF button on the control panel will be lit and the air cleaner will start to operate on LOW speed.* Once the air cleaner is ON, press the SPEED+ button to increase the fan speed to the MED setting. Press again to increase the fan speed to HIGH setting. To decrease the fan speed, press the SPEED– button until your desired settingis reached. The fan speed setting is indicated by the illuminated ring around the fan symbol.* To turn the air cleaner OFF, simply press the ON/OFF button on the control panel.
TimerThere are four possible timer settings: 2 (two) hours, 4 (four) hours, 8 (eight) hours, and 12 (twelve) hours. To activate the timer press the TIMER+ button on the control panel. Each time the + button is pressed, it will display the successive settings. To return to a setting already passed, press the TIMER– button. Once a timer setting has been selected, it will remain displayed on the TIMER screen. To operate continuously, cycle down through all timer settings until no timer setting is displayed.
OscillationTo activate the oscillation feature, press the button. To stop oscillation, press the button a second time. Unit will not automatically realign with foot when oscillation is stopped. To achieve alignment, stop oscillation at the moment the body becomes aligned with the foot.
Germicidal UV-C BulbThe UV-C technology in this air cleaner kills germs, bacteria and viruses. To activate the UV-C bulb, press the UV-C button on the control panel. To turn the UV C bulb off, press the button again.
Clean Filter IndicatorThe air cleaner is equipped with a CLEAN FILTER indicator to let you know when it is time to clean the True HEPA filters, about every 480 hours of use. When the True HEPA filters are ready to be cleaned, the CLEAN FILTER indicator will light up on the control panel.If the air cleaner is used daily, we recommend cleaning the True HEPA filters more frequently.Once the True HEPA filters have been cleaned, press and hold the CLEAN FILTER button until it beeps to reset the Indicator.

Cleaning the True HEPA Filters

Make sure that the air cleaner is turned OFF and unplugged from the outlet before cleaning.

Open the rear grill cover by gently pushing down on the tab on the top of the grill cover. Fig. 5Fig. 5

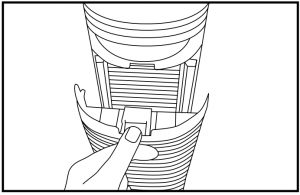

Open the grill cover outward until the tabs at the bottom of the grill cover easily slide away from the unit. Fig. 6Fig. 6
Remove the True HEPA filters from the main unit. Fig. 7Fig. 7Note: There are two True HEPA filters in this air cleaner.
Use the brush attachment with your vacuum cleaner. Run the attachment along both sides of the True HEPA filters, cleaning thoroughly between the accordion folds of the filters. Fig. 8Fig. 8
Place the clean True HEPA filters back in the main unit, making sure they are firmly seated inside the unit. Fig. 9Fig. 9

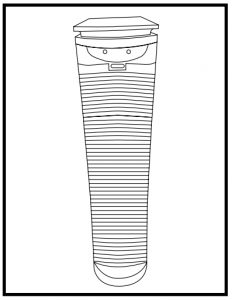

Place the tabs at the bottom of the grillcover into the base of the unit. Gently push the grill cover back into place until you hear a click sound indicating that the grill cover is firmly latched. Fig. 10Fig. 10

DO NOT USE WATER OR ANY HOUSEHOLD CLEANERS OR DETERGENTS TO CLEAN THE TRUE HEPA FILTERS.

Replacing True HEPA Filter

With regular cleaning the life of the True HEPA filter is approximately 12-18 months under typical household usage and conditions. We recommendreplacing your filters every year. To purchase replacement True HEPA filters, model # AT-OFL, go back to your retailer (where you purchased your air cleaner), or visit www.homedics.com.After cleaning or replacing the True HEPA filters, be sure to reset the filter indicator by pressing the CLEAN/RESET FILTER INDICATOR BUTTON for several seconds until an audible chime sounds and the light turns off.

Replace UV-C Bulb Indicator

The UV-C Bulb is equipped with a REPLACE UV-C BULB indicator to let the user know it is time to replace the bulb. When the bulb needs to be changed, the REPLACE UV-C BULB indicator will light up on the control panel. Once the UV-C bulb has been replaced, press and hold the REPLACE UV-C BULB button until it beeps to reset the indicator. To purchase a replacement UV-C bulb, model # PP-AROTUV, visit www.homedics.com.

Replacing the UV-C Bulb

Unplug unit and allow bulb to cool.
Open and remove the rear grill cover.
Remove the upper True HEPA filter.
Use a screwdriver to remove two screws and detach the metal UV-C bulb cover.
Grasp the UV-C bulb firmly and pull it from the bulb socket.
Replace the new UV-C bulb and push it into the bulb socket.
Replace the metal UV-C bulb cover.
Replace the rear grill cover.

NOTE: UV-C bulb contains Mercury (Hg). Dispose of according to Local, State and Federal Law / www.lamprecycle.org

Cleaning and Maintenance

For best performance, we recommend:

Vacuum the True HEPA filters using the brush attachment of your vacuum cleaner once a month
NEVER use water or any household cleaners or detergents to clean the True HEPA filters
Clean off the outside of the unit with a dry cloth once a month
NEVER use water, wax, polish, or any chemical solution to clean the outside of the unit
Clean off the grill cover using a damp cloth or the brush attachment of your vacuum once a month
NEVER use wax, polish, or any chemical solution to clean the grill cover
Replace the True HEPA filters every 12-18 months
If you will not be using the air cleaner for an extended period of time, please store in the box, or a cool, dry place.

Troubleshooting

Problem: Possible Cause: Solution

Unit will not operate:

Unit is not plugged in
No power at unit:
Plug unit in
Press the POWER button to turn the power on
Check circuits, fuses, try a different outlet

Reduced airflow or poor filtering:

The front grill may be blocked
True HEPA filters may be clogged
Check to make sure nothing is blocking the back grill and air outlet
Check and clean filters
Replace the filters

Excessive noise”

The unit is not level:
Place the unit on a flat, even surface

Limited TWO Year Warranty

HoMedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of two years from the date of original purchase, except as noted below. HoMedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.To obtain warranty service on your HoMedics product, contact a Consumer Relations Representative by telephone at 1-800-466-3342 for assistance. Please make sure to have the model number of the product available.HoMedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate HoMedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/ power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturers recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of HoMedics.This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/ or authorized, or repair of products damaged by these modifications is not covered under this warranty.THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHINTHE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on Internet auction sites and/ or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of HoMedics.This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state. Because of individual state regulations, some of the above limitations and exclusions may not apply to you.For more information regarding our product line in the USA,pleasevisit: www.homedics.com
