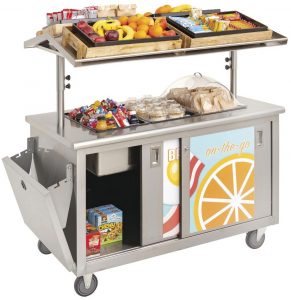

HUBERT 12231 Double Sided Breakfast Cart Instruction Manual

HUBERT 12231 Double Sided Breakfast Cart Instruction Manual

COMPONENTS

• Be sure to identify and confirm you have received all parts before assembly

1. Cabinet
2. Support Tubing x 2

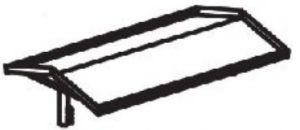

3. Slant Shelf

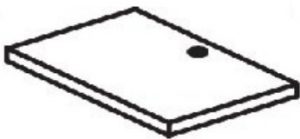

4. Side Shelf
5. Right Bracket for Side Shelf
6. Left Bracket for Side Shelf
7. Left Door
8. Right Door w/Lock, Keys
9. Swivel Caster w/Brake x 2
10. Swivel Caster w/o Brake x 2
11. Bolt M8 x 16
12. Bolt M6 x 8
13. Knob x 4
14. M8-A x 4
15. Allen Wrench

TOOLS NEEDED (NOT INCLUDED)

• Phillips Head Screwdriver
• 14mm Wrench

Assembly Instructions

1. Lay Cabinet upside down and insert Casters into the hat channel using Bolt M8 (11). Consider your application when choosing the location of the locking casters.

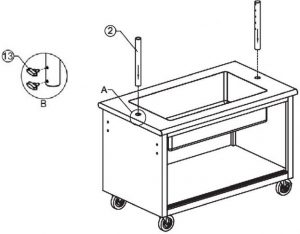

2. Turn the cart upright. Insert Support Tubing into counter and secure with Bolt M8-A (14). Do not fully tighten bolts until slant shelf is fully assembled.
3. Using two people, lift and place shelf over support tubing at desired height, then tighten Knobs (13).
4. Install Right and Left Shelf Brackets to Cabinet, then Shelf to Brackets, using Bolt M6 (12).
5. To install doors, be sure they are oriented as shown below. First, angle Left Door up into top innermost channel, then align into the innermost bottom channel. Use key to unlock lock on Right Door (D), then install Right Door in outermost upper and lower channels.
