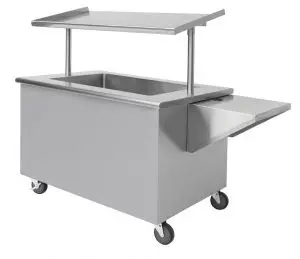

HUBERT 76306 Single-Sided Breakfast Cart Installation Guide

HUBERT 76306 Single-Sided Breakfast Cart Installation Guide

ASSEMBLY INSTRUCTION

COMPONENTS

1. Cabinet
2. Support Tubing x 2
3. Slant Shelf
4. Swivel Caster x 2
5. Locking Swivel Caster x 2
6. Side Shelf

• A. Bolt M8-A x 8
• B. Bolt M8-B x 16
• C. Bolt M6-C x 6
• D. Allen Wrench

**Be sure to identify and confirm you have received all parts before assembly.”

TOOLS NEEDED (NOT INCLUDED):

• Phillips Head Screwdriver
• 14mm Wrench

1. Lay Cabinet upside down and insert casters into the hat channel using Bolt B.
2. Turn the cart upright. Insert Support Tubing into counter and secure with Bolt A.

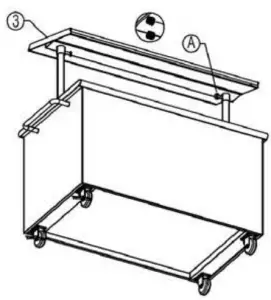

3. Insert Support Tubing into brackets on underside of Slant Shelf and secure with Bolt A.

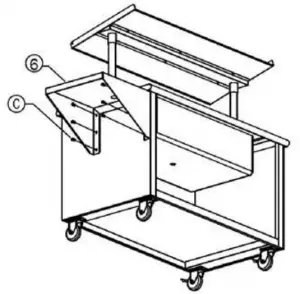

4. Install Side Shelf to side of Cabinet opposite handle, and secure with Bolt C.
