HUIOON Battery-free Pen Tablet
Precautions
- Please read this manual carefully before using it, and keep it well for future reference.
- Before cleaning the tablet please unplug the power cord and wipe with a soft damp cloth, do not use any kind of detergents.
- Don’t expose this product to water or other liquids. Take care to never spill liquids onto the tablet and pen. Exposing this product to water or other liquids may cause product malfunction or electrical shock.
- Do not place the tablet on where is unstable or a height for children to reach easily in order to avoid danger. Prevent children from swallowing the pen nib or side switch. The pen nib, side switch, or other movable parts may accidentally be pulled out if children are biting on them.
- Power off your tablet in locations where/when electronic devices are not allowed. Because the tablet may cause other electronic devices to malfunction in some locations where/when the use of electronic devices is not allowed, such as within an airplane, be sure to turn off the tablet.
- Do not disassemble the tablet and pen. Do not disassemble or otherwise modify the tablet or pen. Such action may cause heat generation, ignition, electronic shock, or other damage, including human injury. Disassembling the product will void your warranty.
- While getting the components replaced, you are supposed to guarantee that the repairman is using the substitute components specified by the manufacturer. Unauthorized component replacement might cause fire, electric shocks, or other dangers.
- Do not insert foreign material into the USB port or any other opening of this product. If a metal object or foreign material is inserted into a port or other opening of this product it may cause the product to malfunction or burn out, or cause electronic shock.
1. Product Overview
1.1 Tablet Introduction
Thanks for choosing the HUION® INSPIROY® H1060P graphics tablet. This is a new generation of professional battery-free drawing tablets, which can greatly improve your work efficiency of painting and creation, and full of fun. You can freely be painting and writing, depicting different lines and colors, just as the pen writes on the paper, which brings you a real shock experience. To give you a better understanding and use of your tablet, please read this user manual carefully. The user manual only shows the information under Windows, unless otherwise specified, this information applies to both Windows and Macintosh systems.
1.2 Product and Accessories

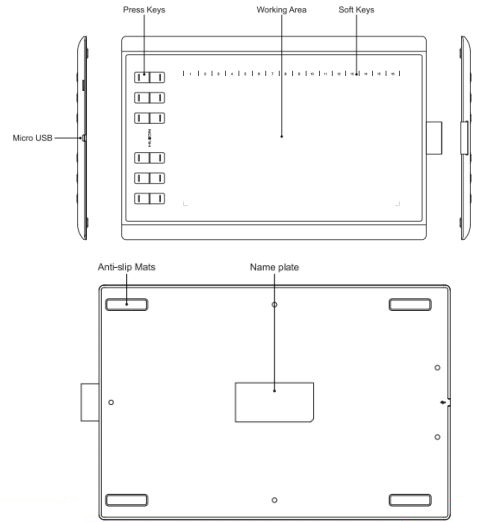

1.2.1 Graphics Tablet
1.2.2 Packing List
1.3 Tablet Connection
1. Connect the tablet to your computer with a USB cable.
1.4 Driver Installation
1.4.1 OS SupportWindows 7 or later macOS 10.11 or later
1.4.3 Install DriverPlease download the driver from our website: www.huion.com/download After finishing the installation, you can find the driver icon
in the system tray area, which means the driver was installed successfully; when you connect the tablet to the computer, the icon will change to color
, which means the driver has already recognized the tablet and you can start using it now.
Notice
- Before installing, you need to uninstall another driver of similar products, including the old driver of this product.
- Before installing, please close all graphics software and anti-virus software to avoid unnecessary mistakes.

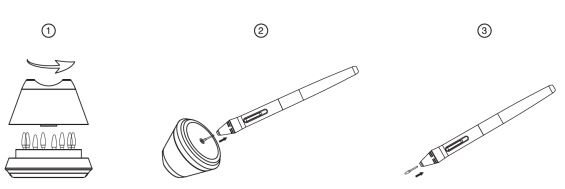

1.5 Pen Nib Replacement
The nib will wear off after using it for a long time, then you need to replace a new nib.
- Anticlockwise rotate the pen holder to open the cover, take a new nib out.
- Insert the pen nib into the hole on the bottom of the holder and tilt the pen to pull out the old nib.
- Insert the new nib straight into the pen and push the nib slowly and firmly until it stops.
2. Product Basic Operation
2.1 Using The Pen
2.1.1 Hold the penHold the pen as you hold a normal pen or pencil. Adjust your grip so that you can toggle the side switch easily with your thumb or forefinger. Be careful not to accidentally press the switch while drawing or positioning with the pen.
Notice: When not in use, place the pen in the pen case or on the desk. Do not place the pen on the surface of the screen, which may interfere with the use of other screen cursor positioning equipment, may also cause your computer can not enter sleep mode.
2.1.2 Position the cursorMove the pen slightly above the active area without touching the screen surface, the cursor will move to the new position accordingly. Press the pen tip on the screen to make a selection. Tap the screen once with the pen tip, or touch it to the screen with enough pressure to register a click.
2.1.3 ClickUse the pen tip to tap once on the screen to register a click. Tap to highlight or select an item on the screen and double-click to open it.
2.1.4 MoveSelect the object, then slide the pen tip across the screen to move it.

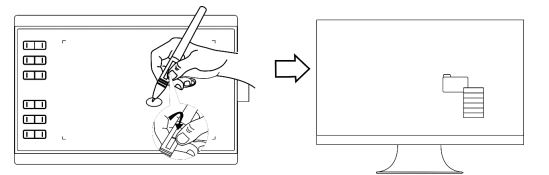

2.1.5 Use the side buttonsThe buttons on the pen can be set to two different customizable functions. You can use the buttons whenever the pen tip is within 10mm of the tablet’s active area.You do not have to touch the pen tip to the tablet in order to use the switch.
3. Function Setting
3.1 Device Connection Prompt
- Device disconnected: The computer does not recognize the tablet.
- Device connected: The computer has recognized the tablet.
3.2 Working Area Setting
3.2.1 Using Multiple MonitorsSelect the Working Area tab to define the relationship between pen movement on the tablet and cursor movement on the monitor screen. By default, the entire active area of the tablet maps to the entire monitor. If more than one monitor is in use and you are in extended mode, you need to choose the related monitor on the driver interface to which you are going map to. If your monitors are in mirror mode (All monitors display the same content), the tablet maps to the entire space on each monitor, and the screen cursor is displayed on each monitor simultaneously.
3.2.2 Working Area SettingDefine the tablet area that will be mapped to the screen area.1. Full Area: the entire active area of the tablet. This is the default setting.2. Customized Area: 1.> Enter coordinate values. or2>. Drag the corners of the foreground graphic to select the screen area.
3.2.3 Rotate Working AreaBy changing the direction of the tablet to adapt to the left and right-hand operation. You can rotate the tablet by 0°,90°,180° or 270°.
3.3 Press Keys Function Setting
Default SettingPlace the cursor on the pressed key or click the pressed key to find the default values. Customized SettingSelect the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect. Enable/Disable Press Keys: Check/Uncheck”Enable Press Keys”
3.4 Pen Buttons Function Setting
3.4 Pen Buttons Function SettingSelect the function to be achieved on the pop-up dialog box, then click APPLY or OK to take effect.
3.5 Pressure Sensitivity Setting
The pressure sensitivity will be changed by dragging the slider up and down, the smaller the value, the more pressure sensitive.
3.6 Pen Pressure Testing
Click “start pressure test”, you can gradually apply pressure to the stylus on the screen to test the pressure level. Click the “Clear” button to clear all the ink.
3.7 Enable the Windows Ink feature
Microsoft Windows provides extensive support for pen input. Pen features are supported in such as Microsoft OfficeWindows JournalAdobe Photoshop CC SketchBook 6 and so on.
3.8 Data Export and Import
3.8 Data Export and ImportThe driver supports exporting and importing your custom configuration data of the product, which is convenient for you to use different software and avoid the trouble of repeated settings.
4. Specifications
5. Trouble Shooting
6. After-service Contact
SHENZHEN HUION ANIMATION TECHNOLOGY CO., LTD.Building 28, Quarter 4, HuaiDeCuiGang Industrial Park, Fuyong Street, Baoan District, Shenzhen, 518106, China
Note: Information in this manual is subject to change without further notice. For more information, please contact us with our email: [email protected] Or go to our website (www.huion.com) to get the latest driver and user manual.
