ICECREAM Mini Indoor Airplane Instruction Manual

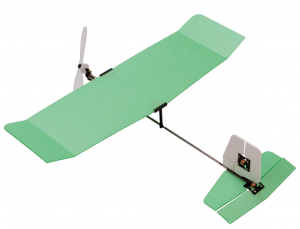

ICECREAM Mini Indoor Airplane

KIT Number

Photos shown here just for reference, the product you received maybe slightly differ from the photos due to continuous improvement on products.

A1: WingA2-A3: TailB: Adhesive Reinforcement SheetC: FuselageD: PropellerE: Magic StickerF: Landing GearG: ScrewH: ScrewdriverI: ChargerJ: Battery (Optional)

How to Assemble

1. Remove the above reinforcement sheet from the B, and align the wing slot with the reinforcement sheet.
2. Paste the reinforcement sheet onto the upper and lower wing.
3. Remove the horizontal tail from the A2, align the vacant space with the reinforcement sheet, and remove the reinforcement sheet from the B.
4. Insert the tail into the tail of the C fuselage, pay attention to the orientation of the reinforcement.
5. Lock the tail with the G 1X3 screws, It can be easily locked when screwed in, Do not over-tighten the screw, resulting in deformation of the plate.
6. Turn the fuselage to the other side, and fix the elevator and servo arm by the G 1×3 screw(here the reinforcement sheet for elevator is on the back). Do not over-tighten the screw, resulting in deformation of the plate.
7. Install the propeller at the head of the fuselage
8. Install the landing gear with the one end through the motor cable and then snap into the base slot as shown above.
9. Install the wing onto the fuselage, firstly fix one end, then the notch is aligned with the wing card slot.Then gently pinch the middle of the wing so that the wing is convex upwards, and the other end is aligned with the wing.

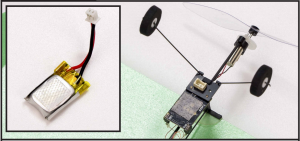

10. Cut the appropriate magic sticker, one side sticks to the base and the other side sticks to the battery

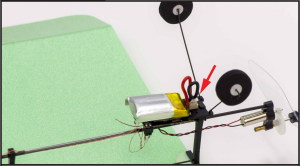

11. Paste the battery to the bottom plate, and get power from the receiver for on-frequency debugging.
12. Wing Parameter

Frequency and Debugging

DX6e DX8e NOT Supported

Frequency Introduction

Take the Transmitter DEVO 7E as an example hereStep 1:The indicator light flashes when the receiver is powered (make sure the battery is fully charged)Step 2:Transfer the transmitter protocol to DSM2, then click “bind” on the transmitter, the indicator light of the receiver will turn on constantly, it proves the frequency code is successful.Step 3:Power off the receiver and recharge-receiver indicator light is always on – complete the code (if not successful, repeat the above operation)

How to Charge

Plug the battery into the charger, and connect the charger with a 5V voltage USB port for charging. The light is red when charging, and the light turns to green when the charger is completed.

Specification

Wingspan: 226mmPower Input: 1S 3.7V 28mAh (can use 22-50mAh)Playing Time: 6-10minCharging Current: 50mA via. USB Equip with 4CH electromagnetic servo receiver, DSM2protocol(DX6e/8e NOT Supported), build in 2A ESCFoam Weight: ≈6.2g(with 28mAh LiPo)≈6.8g(with 50mAh LiPo)

Note: This aircraft wing is available in white and green for choice, pls choose as per your preference. The vertail tail has pre-installed. If it needs to be replaced, please use non-corrosive glue such as UHU to paste.

Control Directions Tests

Elevator	Lifting rod down
Lifting rod up
Rudder	Direction rod to the right
Direction rod to the left

PRE-FLIGHT CHECKS

• Check/adjust servo centering, in order to adjust the control surface better.
• Double-check the spinning direction of motor at first usage, and sure it’s suitable for your model.
• Set the center of gravity (CG) at the position that manual already marked out. If necessary, add weight to the nose or tail to ensure the best flight performance.
• Double-check the inside of the fuselage, make sure all the equipment’s are correctly connected; Check the heat-shrink covering material’s surface, Make certain all screws, bolts, cabin and canopy remain secure.
• Take great care when connecting/disconnecting the battery, pls replace the battery immediately once found low voltage or damage to battery.。
• The way the internal devices of the fuselage are connected will be related to your transmitter-receiver device.For those transmitter-receiver devices with more functions, you can simplify the connection of the internal devices of the fuselage. Check your device for details to see if it meets the features you need.
• When the power system and transmitter-receiver device are paired for the first time, you may need to set the maximum stroke of the throttle. Please set it yourself.
