ILVE COMMERCIAL ILO990X 90CM ELECTRIC BUILT-IN OVEN USER MANUAL
MULTI-RESIDENTIAL & HOME BUILDER PRODUCT RANGE
FEATURES
- tangential fan cooling
- Time, 24h setting
- Touch control digital timer
- Accurate digital thermostat control: 0°C-250°C
- Knob control
FINISH
- AS430 stainless steel
SAFETY
- Cool touch triple glazed glass door
FUNCTIONS
- 9 functions — pizza, fan forced, fan grill, static grill, half static grill, bottom element, fan assisted, convection, light
CLEANING
- ULTRA-Clean smooth black cavity
- easy-clean removable inner glass & door
CAPACITY & INTERIOR
- Oven cavity size (cm): 60.3w x 40.2d x 33.6h
- 5 cooking levels
- Dark / black tinted glass on door exterior
ACCESSORIES
- 1 x oven rack and 1 x grill/baking tray & grill insert
TECHNICAL INFORMATION
- 3.5kW/hr total electrical consumption
- 15 amp electrical connection, hard connection
- Size: 893W x 477H x 517D + 21mm fascia
Standard Option – Oven Colour
Stainless Steel

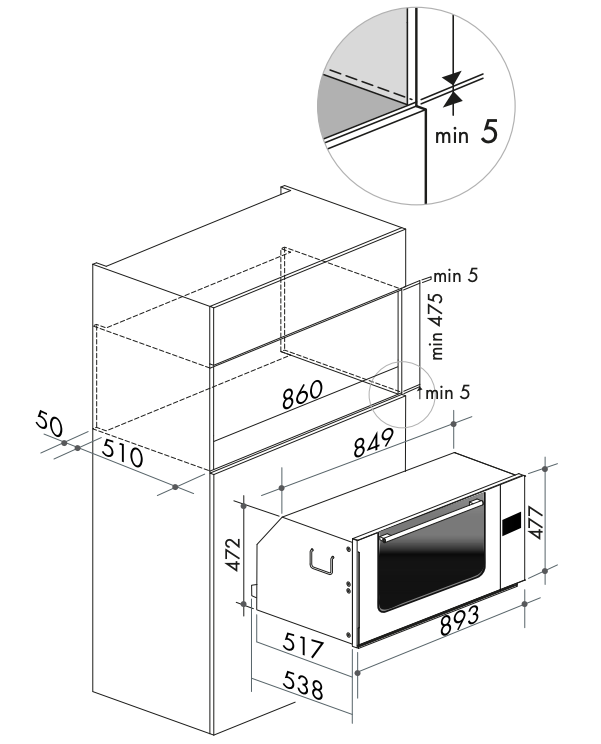

NB: drawings are not to scale — they are to be used as a guide only
OvenEAN code: 9341584030894 (ILO990X)
Product Size: 893W x 447H x 517-538DTotal Electrical Load: 3.5kw/h
