INDOORCYCLING Pairing of ANT+ Console & RPM transmitter Instruction Manual

INDOORCYCLING Pairing of ANT

TASK DESCRIPTION:

Pairing of ANT+ Console & RPM transmitter.

*Also refer to owner´s manual (pages 8-10)

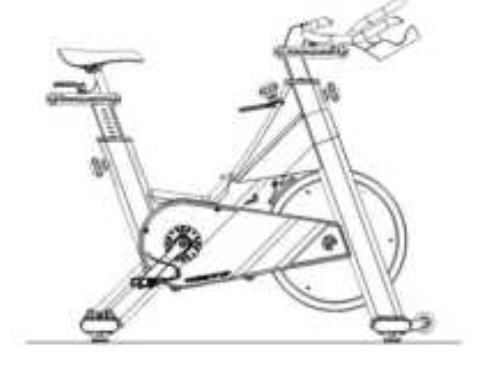

Applicable for Product: ANT+ Bike Computer Set

ANT+ Console


Applicable for Product Version:
Applicable for Product Art. No.: CO-TK3WL-01

320-00-00001-01


Applicable for Product Serial No.: 312130001 > ……

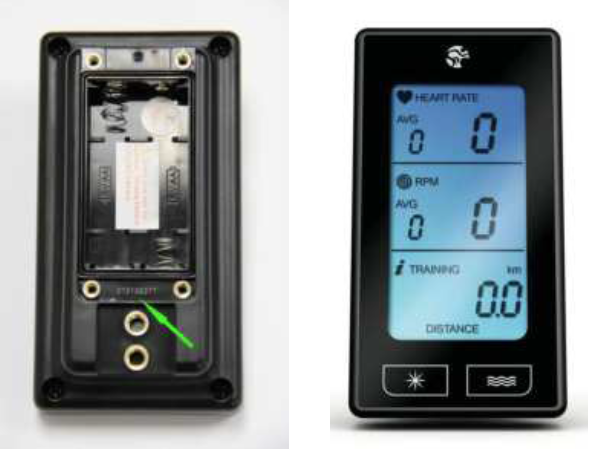

The Serial Number information can be found under the battery cover as shown below.Please make sure to identify the product prior to performing any repair job.

ANT+ CONSOLE

AFFECTED PARTS
SPARE PART ICG ARTICLE NUMBER PART DESCRIPTION COMMENTS NO. OF PARTS PER BIKE

(OPTIONAL)
A CO-TK3WL-01 ANT+ BIKE COMPUTER SET Includes:

*ANT+ CONSOLE: 320-00-00001-01

–  Owner manual

– Phillips head machine bolt, M5 x 11 x 0,8P , ss304 STAINLESS STEEL, 2x

–  Counter sunk Hex. socket bolt, M3 x 8 x0,5P, ss304 STAINLESS STEEL, 4x

–  AA batteries, 2x

*ANT+ BIKE MOUNTING & TRANSMITTER KIT:

320-00-00002-01

–  Mounting manual

–  ANT+ Bike Transmitter

–  AAA batteries, 2x

–  ANT+ console bracket

– Phillips head machine bolt, M5 x 11 x 0,8P , ss304 STAINLESS STEEL, 2x

–  Phillips head machine bolt, M5 x 53 x 0,8P , ss304 STAINLESS STEEL, 1x

-Nut M5 x 0,8P, ss304 STAINLESS STEEL, 1x

-Magnet, 1x

-Rubber 90 x 9 x 0,9mm

-Rubber 90 x 20 x 2,9mm

 1
B 320-00-00001-01 ANT+ CONSOLE Includes:

*ANT+ CONSOLE: 320-00-00001-01

-Owner manual

-Phillips head machine bolt, M5 x 11 x 0,8P , ss304 STAINLESS STEEL, 2x

-Counter sunk Hex. socket bolt, M3 x 8 x 0,5P, ss304 STAINLESS STEEL, 4x

– AA batteries, 2x

 1
REQUIRED TOOLS:
TOOLS SIZE MM QUANTITY
Phillips screwdriver PH 2 1

Warning!

Please pay attention that the bike is positioned stably and properly secured while repair work is being performed.

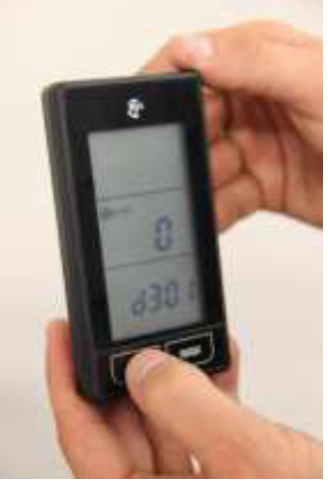

  1.  Press any button while inserting batteries into the ANT+ console
  2. Press “SUN” button to display software version
  3. Press “SUN” button again to choose ANT+ RPM pairing mode
  4. Press “FLOW” button to start ANT+ RPM pairingDuring the pairing process, make sure to:

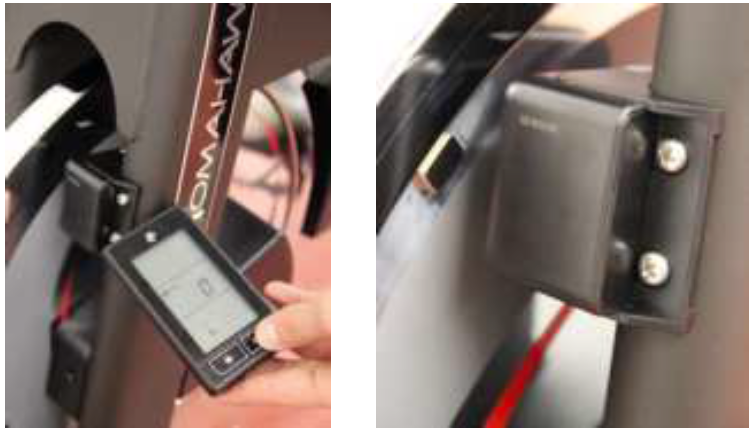

    • Put the console as close as possible to the ANT+ bike transmitter.
    • Keep the flywheel in motion by slowly turning the cranks by hand in order to provide a RPM signal.
    • Please make sure that the magnet is correctly positioned on the flywheel in order to provide a signal to the transmitter (see picture).
  5. As soon as a RPM signal is displayed, pairing of ANT+ RPM transmission is finished
  6. KM / MILES settings
    • a) Press the “SUN” button to enter KM / MILE setting.
    • b) Press “FLOW” button to select between KM or MILES.
    • c) Press “SUN” button to confirm your selection and enter gear ratio settings.
  7. Gear ratio settings
    • Press “FLOW” button to select the gear ratios available:
      • 1:3.1 for ICG bikes with V-Belt Drive. (IC3, S & E-Series).
      • 1:4.0 for ICG bikes with Timing-Belt Drive.
      • 1:4.3 for KRANKcycle.
    • Press “SUN” button to confirm your selection and finish the basic settings process.
      • Simulate a brief session and test if the ANT+ computer properly reads and displays all the information.Please note: Heart rate will only be displayed when you use your personal HR chest belt (analog chest belts will be paired automatically; ANT+ chest belts must be paired manually).

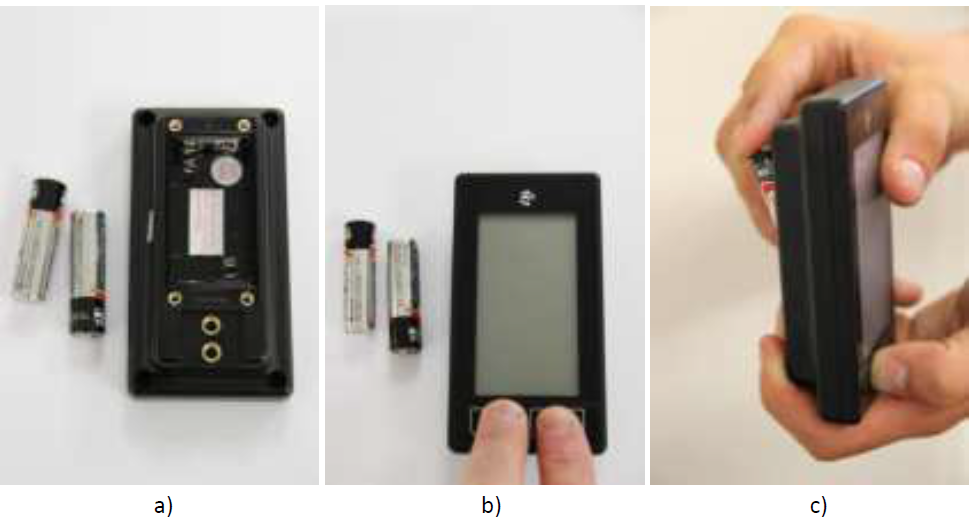

  8. Battery exchange and resetting of console in order to resolve any issues to the functioning. *see also the owner´s manual (page 14)a) Remove the batteries of the ANT+ console.b) Press both buttons on the front of the ANT+ console for at least 10 seconds.c) After RESET reinsert the batteries and repeat steps 1-7.
  9. Battery exchange and resetting of cadence transmitter *see also the owner´s manual (page 15)a) Use a screwdriver to remove the cadence transmitter from the bike/KRANKcycle frame.b) Remove the batteries from the cadence transmitter.c) Wait for at least 30 seconds before re-inserting the batteries and repeat steps 1-7.
    • Test the functionality of the cadence transmitter before re-attaching it to the bike/KRANKcycle frame.
  10. End of the operationa) Use the Phillips screwdriver to secure the batteries cover.b) Simulate a brief session and test if the ANT+ computer properly reads and displays all the information.Please note: Heart rate will only be displayed when you are using your personal HR chest belt (analog chest belts will be paired automatically; ANT+ chest belts must be paired manually).
    • Test the functionality of the ANT+ console before re-attaching it to its support bracket.
