Infra-Slim Body Shaping System Instructions

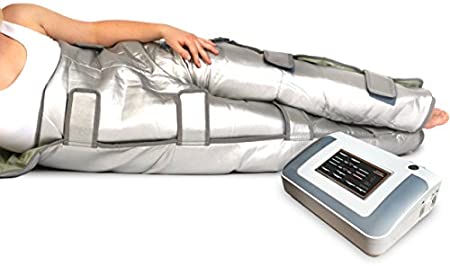

Infra-Slim Body Shaping System

Dear Customer,Many thanks for purchasing our product, please kindly read the manual instructions carefully and operate the system in the correct way.

Working Principle

This system combines functions of Far-infrared ray heating and Air pressure massage therapy. Air pressure therapy is also called pressotherapy that aims to massage the whole body so that to promote blood circulation eliminate body muscle tiredness tighten skin and improve body metabolism. Far infrared heating further helps speeding up body discharges sweat so that to get rid of toxins, quickly burns redundant fatness/cellulite. Both combination, it can achieve the effects of weight loss body contouring and health-keeping.

Main Effects

• Lymphatic drainage.
• Burning fat to lose weight.
• Contouring body and keeping fit.
• Perspiration detoxification, discharge heavy metals along with sweat, promote the metabolism.
• Relieve rheumatism and cold, unclog the meridian, reducing body fatigue and relieving stress.
• Activate, purification and optimize the blood cells and body tissues, improve body immunity.
• Stimulate body circulation system, promote blood circulation, strengthen and cultivate Viscera.
• Enhancing medication/nutrition lead-in and obsorption.

Outlets Introduction

Operation Steps Of AIRPRESSURE

Step 1: Connect the airpipes to the machine and costume.Step 2: Connect the power cord, then press power switch to start the machine.Step 3: Set the TIME using ▲and▼ arrows.

• When the controller is turned on, the default time is 30 minutes.
• The maximum adjustable time is 90 minutes.
• The recommended time for each use is 35-40 minutes.
• It is recommended to use it every other day.

Step 4: Choose the PARTS:

• Choose 1 LEGS and FEET are massaged.
• Choose 2 WAIST is massaged.
• Choose 3 ARMS are massaged.
• Choose 4 LEGS、WAIST and ARMS are massaged circularly.

Step 5: Choose the MODE

• Choose 1-The airpressure squeezes 2 seconds, then relieves 1 second.
• Choose 2-The airpressure squeezes 4 seconds, then relieves 1 second.
• Choose 3-The airpressure squeezes 6 seconds, then relieves 1 second.
• Choose 4-The airpressure squeezes 8 seconds, then relieves 1 second.
• Choose 5-The airpressure squeezes 10 seconds, then relieves 1 second.
• Choose 6-The airpressure squeezes 12 seconds, then relieves 1 second.

Step 6: Choose the INTENSITY

There are 1-7 levels for selection.

Step7: Press ON/OFF, the airpressure begins to work.Step 8: Press ON/OFF again, the airpressure is paused.

Operation Steps Of Infrared-Heat

1. Connect the costume to the controller.
   • If shows EO on the controller, it means the wrong connection, temperature can not be set.
2. Set TIME using the ▲ and▼ arrows.
   • When the controller is turned on, the default time is 30 minutes.
   • The maximum adjustable time is 90 minutes.
   • The recommended time for each use is 35-40 minutes.
   • It is recommended to use it every other day.
3. Press INFRAR SELECT, the indicator lamp of AMRS is on, quickly set the temperature.
   • The recommended temperature for ARMS is 55℃-60℃.
4. Press ON/OFF the infrared-heat of arms begins to work. Press again ON/OFF, the infrared-heat of arms is paused.
5. Press INFRAR SELECT, the indicator lamp of waist is on, quickly set the temperature.
   • The recommended temperature for WAIST is 60℃-65℃.
6. Press ON/OFF the infrared-heat of waist begins to work. Press again ON/OFF, the infrared-heat of waist is paused.
7. Press INFRAR SELECT, the indicator lamp of legs is on, quickly set the temperature.
   • The recommended temperature for LEGS is 65℃-70℃.
8. Press ON/OFF the infrared heat of lges begins to work. Press again ON/OFF, the infrared heat of legs is paused.
9. After making above operations, temperature of each part is going up,  slowly you can feel the heat.
10. Turn off the power when stop using the system ,pull off the accessories and store the product well.

Operational Considerations

• Do not use the system in places with strong static and magnetic fields.
• Do not contact with rain or liquid.
• Must be well grounded before use in case of lightning strike.
• Do not pull out the power cord or other wires as the machine is power on.
• Before doing therapy, customers must take down the sharp objects, which would probably puncture the costume and cause serious consequences.
• Stop using the system once the costume cracks to avoid the danger of electric shock.
• Non-company professionals shall not dismantle the machine for maintenance or attempt to modify the mechanical or electronic properties of the product.

Forbidden Crowd

• Pregnant women.
• Women have not completely recovered from childbirth.
• Women with menstruation.
• The persons with high blood pressure.
• The persons with heart disease and serious diabetes.
• The persons with serious skin diseases.
• The persons with metal rack inside the body.
• Minors are prohibited from using it.
• Do not use in patients with internal injury.

Technical Parameter

Packing List
