Intempo EE2728MBLKSTKEU7 Tempo Wireless LED Tailgate Instruction Manual

Table of Contents

TEMPO WIRELESS LED TAILGATE

INSTRUCTION MANUAL

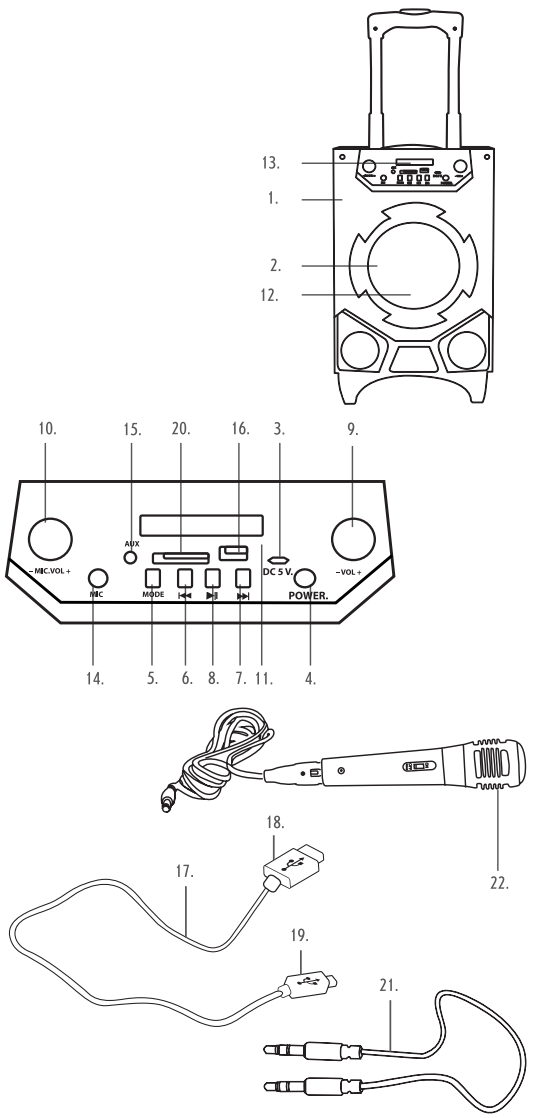

1. Tailgate LED Speaker Main Unit2.Speaker3.5 V

Charging Port4. Power Button (POWER)5. Mode Button (MODE)6. Skip

Button (141)7.Skip + Button (

)8. Play/Pause Button (

)9. Master Volume Control Dial10Volume Control Dial11. LED Indicator Light

12. LED Lights13. LCD Display14. Mic. Input Port15. Aux. Input Port16. USB Input Port17. USB Charging Cable18. USB Connector19. Micro USB Connector20. SD Card Slot21. Line-in Aux. Cable22. Microphone

Please read all of the instructions carefully and retain them for future reference.

Safety Instructions

When using electrical products, basic safety precautions should always be followed. Keep the product and its accessories out of the reach of children.Keep small parts away from children as these may present a choking hazard.Children under 8 years should be supervised to ensure that they do not play with the product. This product is not a toy.This product contains no user-serviceable parts. If the product and any of its accessories are malfunctioning or damaged; the unit should be recycled.Keep the product and its accessories away from heat sources, direct sunlight, humidity, water, and any other liquid, or sharp edges that could cause damage.Ensure the product is well-ventilated.Do not leave any objects susceptible to magnetism (cash cards etc.) near the product. Do not operate the product with wet hands.Do not operate the product if it has been exposed to water, moisture, or any other liquid, to prevent against electric shock, explosion, and/or injury to yourself and damage to the product.Do not use the product for anything other than its intended use.Do not use any accessories other than those supplied.Do not put objects into any of the openings.This product is intended for domestic use only. It should not be used for commercial purposes.To prevent possible hearing damage, do not listen to high volume levels for long periods of time — this may also damage the product.Nole: It is advised that the product is not used whilst charging, as this could reduce the life of the battery.

Battery Safety

The supply terminals are not to be short-circuited.In the event of a battery and cell leaking, do not allow the liquid to come in contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.Secondary cells and batteries need to be charged before use. After extended periods of storage, it may be necessary to charge and discharge the cells or batteries several times to obtain maximum performance. Do not crush, puncture, dismantle or otherwise damage batteries.Do not store above 60 °C.Avoid storage in direct sunlight.Do not dispose of exhausted batteries in household waste.Do not dispose of exhausted batteries in a fire as they may explode.Once the batteries have been exhausted, dispose of the product at a local recycling station. Contact the local government offices for further details.This unit is fitted with a 3.7 V 2000 mAh rechargeable battery (non-removable).

Declaration of Conformity

UP Global Sourcing UK Ltd. hereby declares that this product is in compliance with the essential requirements and other provisions of directive 201453/EU.

The declaration of conformity may be consulted at UP Global Sourcing UK Ltd., Victoria Sheet, Manchester OL9 ODD. UK or online at www.intempo.co.uk/declaration-letters.htmI. Model No. EE2128M.

Care and Maintenance

Wipe the speaker with a soft, lint-free cloth.Do not:Use any abrasive cleaning solvents to clean the speaker.Expose the speaker to extremely high or low temperatures.Drop the speaker.Attempt to disassemble the speaker.Dispose of the speaker in a fire as it will result in an explosion.

Instructions for Use Charging the Battery

The speaker is fitted with a 3.7 V 2000 mAh rechargeable battery (non-removable). It is recommended that the battery is fully charged before first use; this will take approx. 3 hours. Connect the micro USB end of the USB charging cable into the 5 V charging port on the front of the speaker and the other end to a compatible USB port.Whilst charging, the LED indicator light will illuminate red. Once fully charged, the LED indicator light will switch off.Carefully disconnect both ends of the USB charging cable and store it safely for future use.** Maximum playtime based on 20 % volume with LED light function disabled.

Using the Tailgate LED Speaker Basic Functionality

Turn on the speaker by pressing ‘POWER’; the LED lights will illuminate.Pause a track by pressing ‘., push it again to resume the track.Adjust the volume of the speaker using the master volume control dial. Rotate it in a clockwise direction to increase the volume; decrease the volume by rotating it in an anticlockwise direction.To switch to the next track, press ‘; play the previous track by pressing Cycle between functions by pressing ‘MODE’ until the desired operation is selected (Bluetooth, Aux., SD and USB).Press and hold ‘MODE’ to turn off the LED lights.Press ‘POWER’ to turn off the speaker and deactivate the LED lights.

Using the Microphone

STEP 1: Insert the microphone connector into the mic. input pod on the front of the speaker.STEP 2: Adjust the volume of the microphone using the mic. volume control dial. Rotate it in a clockwise direction to increase the volume; decrease the volume by rotating it in an anticlockwise direction.Warning: When using the microphone, give the speaker a 1-metre exclusion radius, as being too close will cause loud feedback and could damage the speaker.

ModesThe speaker must be turned on before using any of the following modes.

Bluetooth Mode

STEP 1: Press ‘MODE’ until Bluetooth mode is selected. Once activated, the LCD screen will display ‘blue’.STEP 2: Search for the speaker using a Bluetooth compatible device. Select ‘EE2728’ to connect and pair. Once a connection has been made, the speaker will play a tune to signal that the devices are paired.STEP 3: To unpair or remove a Bluetooth compatible device from the speaker, turn off the Bluetooth function on the compatible device. The speaker can now be paired with a new compatible device.Note: Once connected, sound can be controlled using either the speaker or the relevant controls on the Bluetooth compatible device.

Aux. ModeSTEP 1: To use Aux. mode, connect one end of the line-in Aux. cable to the Aux. input port and the other end to an MP3 player or another compatible audio source.STEP 2: Press ‘MODE\' until Aux. mode is selected.Note: Once connected, sound can be controlled using the relevant controls on the compatible audio source.

SD Card/USB Mode

STEP 1: To use SD mode, insert an SD card (not included) into the SD card slot on the front of the unit.STEP 2: To use USB mode, insert a compatible USB drive (not included) into the USB input port on the front of the unit.STEP 3: If the speaker does not automatically change to the relevant mode, press ‘MODE‘ until it is selected.Note: Once connected, sound can be controlled using the speaker. Check that there is no USB drive inserted whilst using SD mode or vice versa, as this could interfere with playback. The speaker will only recognise MP3 audio files; if other files are present on the SD card or USB drive, this may prevent the speaker from playing.

Troubleshooting

The speaker has no power.The speaker has run out of charge. Charge the speaker following the instructions in the section entitled ‘Charging the Battery’.The speaker has no sound.The volume level is set too low. Check that the volume level is set at an audible level and adjust accordingly.Unable to pair a Bluetooth device with the speaker.The Bluetooth device is not compatible with the speaker. Make sure that the Bluetooth device is compatible with the speaker and that the Bluetooth function is switched on.Follow the instructions in the section entitled ‘Bluetooth Mode’.The charge of the speaker depletes quickly.The volume level is set too high. Excessive use of the speaker at high volumes will drain the battery quickly. Charge the speaker following the instructions in the section entitled ‘Charging the Battery’ and listen at a lower volume for better results.

The microphone is not working.

The microphone is not securely connected to the speaker. Connect the microphone to the speaker following the instructions in the section entitled ‘Using the Microphone’. Check that the microphone is turned on.

Specifications

Product Code: EE2128MBIISTKEU7Bluetooth Version: 5.0Wireless Range: 25 m*Speaker Output: 20 WWorking Voltage. 5 VRechargeable Battery: 3.7 V 2000 mAhBluetooth Frequency: 2.4 6Hz* Effective range may be reduced due to the presence of obstacles between connected devices.
